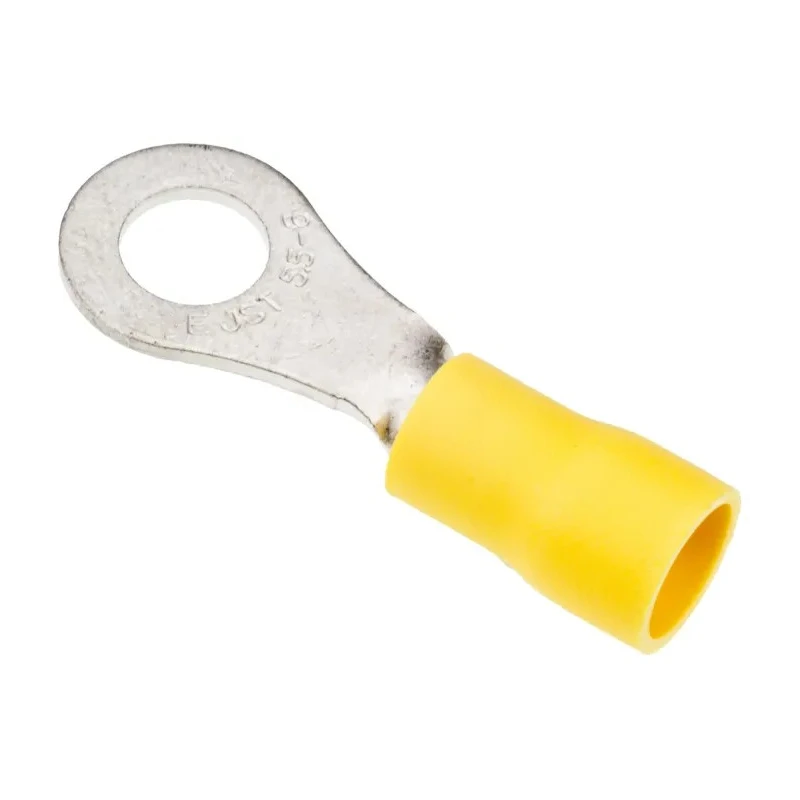

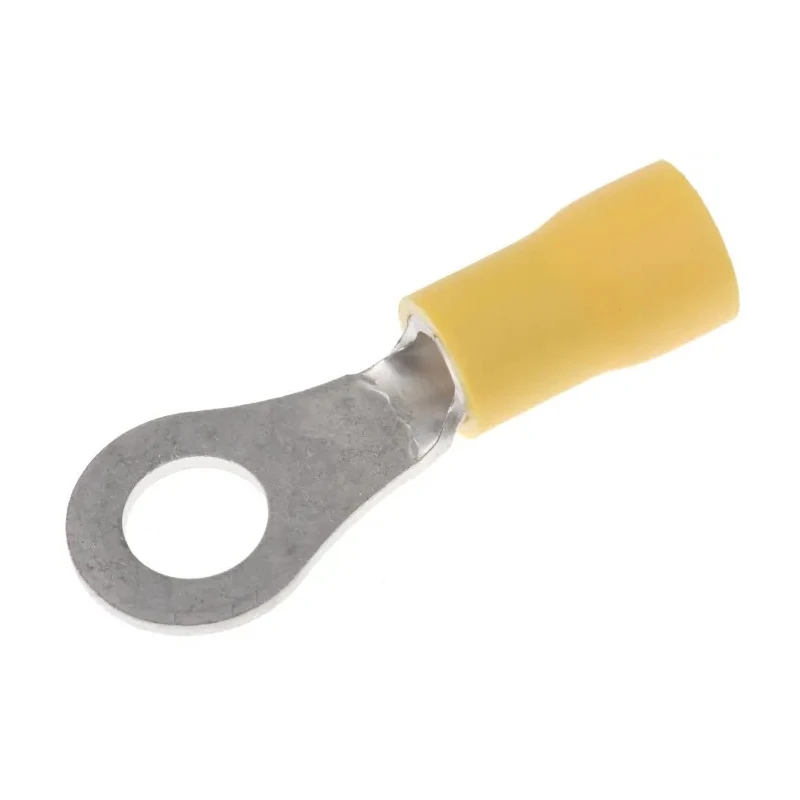

JST FV Insulated Ring Terminal M6 Stud Size 12 AWG to 10 AWG Vinyl Yellow FVWS5.5-6(LF)
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | JST |
| Colour | Yellow |
| THICKNESS | 1mm |
| Model | FVWS5.5-6(LF) |
| Insulation | Insulated |
| Overall Length | 32.5mm |
| Series | FV |
| Insulation Material | Vinyl |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 534-430Brand: RS PRO |
| Minimum Wire Size mm² | 2.6mm² |
| Maximum Wire Size mm² | 6.6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Outer Ring Diameter | 12mm |
| Inner Ring Diameter | 6.4mm |
| Stud Size | M6 |
Key Features
- Features an M6 stud size suitable for secure mechanical fastening.
- Supports wire sizes from 12 AWG to 10 AWG for versatile wiring applications.
- Constructed with oxygen-free copper to ensure superior electrical conductivity.
- Vinyl insulation in yellow color provides high temperature resistance up to 105°C.
- Ring terminal has an overall length of 32.5 mm with 12 mm outer ring diameter and 6.4 mm inner ring diameter.
- 1 mm thickness ensures structural strength and reliable electrical contact.
- Designed with flared vinyl insulation and butted seam for enhanced protection and ease of crimping.
- Manufactured in Japan maintaining high-quality standards for electronic components.
Product Description
The JST FVWS5.5-6(LF) insulated ring terminal is a high-quality electrical connector used for secure and reliable wire terminations in a wide range of industrial and electronic applications.
It features an M6 stud size suitable for common fastening systems, supporting wire sizes from 12 AWG to 10 AWG (2.6 mm² to 6.6 mm²), making it compatible with various cable gauges.
The ring terminal is made from oxygen-free copper which ensures excellent electrical conductivity and low resistance, vital for power and signal integrity in circuits. The yellow vinyl insulation offers durable protection with high flame resistance and temperature tolerance up to 105°C, keeping connections safe in demanding environments.
The overall design includes flared vinyl insulation with a butted seam, providing ease of crimping and a reliable mechanical and electrical joint. The ring terminal measures 32.5 mm in overall length, with 12 mm outer and 6.4 mm inner ring diameters, and a thickness of 1 mm, providing mechanical strength and durability.
This product is manufactured in Japan, adhering to strict quality control measures ensuring consistent performance and safety. Features an M6 stud size for secure connectivity. Supports 12 AWG to 10 AWG wire sizes providing compatibility with multiple cable gauges.
Made from oxygen-free copper ensuring excellent electrical performance. Vinyl insulated with yellow color coding for easy identification. High temperature resistance insulation up to 105°C. Flared vinyl insulation with butted seam enhances reliability and ease of use.
Overall length 32.5 mm with 12 mm outer and 6.4 mm inner ring diameters. 1 mm thick ring terminal for mechanical robustness. Manufactured in Japan for superior quality assurance.
This insulated Ring Terminal is ideal for industrial, laboratory, construction, and electrical maintenance applications where safe and efficient power and signal termination are critical.
Explore more high-quality electronic connectors and wire terminals in the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stud size of this ring terminal is M6, suitable for secure mechanical fastening.
It supports wire sizes from 12 AWG to 10 AWG, equivalent to 2.6 mm² to 6.6 mm².
This ring terminal is constructed from oxygen-free copper, ensuring excellent electrical conductivity and low resistance.
The vinyl insulation provides high temperature resistance up to 105°C, making it suitable for demanding environments.
The overall length is 32.5 mm, with an outer ring diameter of 12 mm and an inner ring diameter of 6.4 mm.
The thickness of the ring terminal is 1 mm, providing structural strength and reliable electrical contact.
It features flared vinyl insulation and a butted seam, which enhance protection and ease of crimping.
This insulated ring terminal is manufactured in Japan, adhering to high-quality standards for electronic components.
It is ideal for industrial, laboratory, construction, and electrical maintenance applications where safe and efficient power and signal termination is critical.
The ring terminal has a yellow color, which provides easy identification.
Yes, the design includes flared vinyl insulation and a butted seam that facilitate ease of crimping and enhance reliability.
This ring terminal belongs to the FV series, which is designed for various electrical applications.
