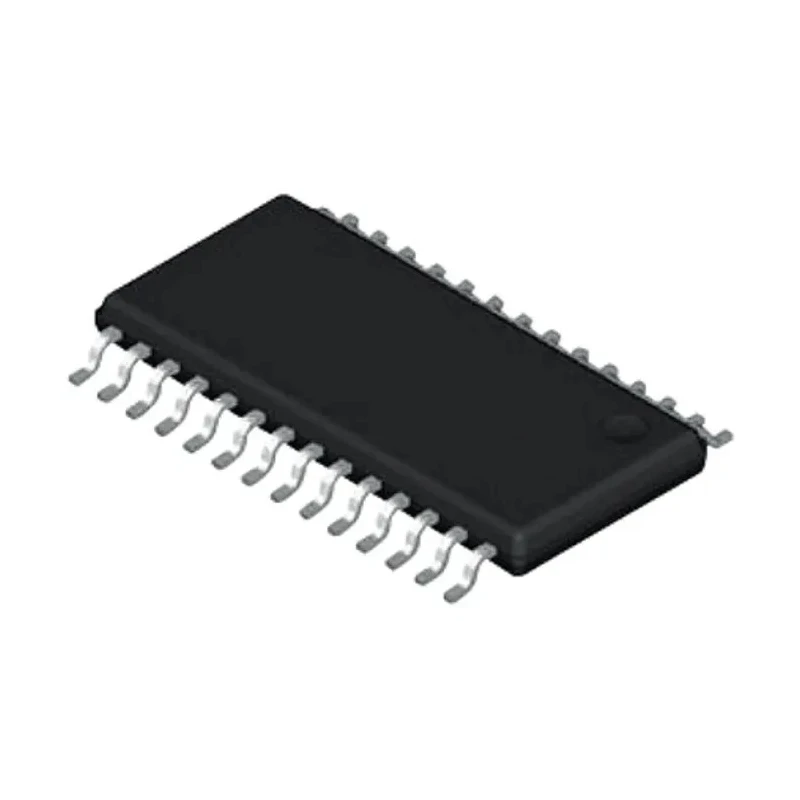

Texas Instruments Ultrasonic Sensing Analogue Front End IC 2-Channel SPI Interface 28-Pin TSSOP TDC1000PW

Texas Instruments TDC1000PW is a high-performance Analogue Front End IC specifically designed for ultrasonic sensing applications requiring precision and reliability. With its 2-channel SPI interface, this device enables accurate measurements for level detection, fluid identification, flow monitoring, and proximity or distance sensing.

Housed in a compact 28-pin TSSOP surface mount package measuring 9.8 mm in length and 1.05 mm in height, the TDC1000PW ensures minimal PCB footprint while providing robust electrical characteristics. The supply voltage range from 2.7 V to 5.5 V caters to diverse power environments, while the device maintains stable operation over a broad temperature range from -40°C to 125°C, making it suitable for automotive and industrial applications compliant with the AEC-Q100 standard.

The integrated analogue front-end functionality simplifies signal conditioning and measurement tasks, reducing external component count and enhancing design efficiency. It communicates via an SPI interface, enabling seamless integration with various microcontrollers and digital processing units for ultrasonic sensor data acquisition.

Common applications include level sensing in tanks, fluid concentration measurement, flow rate detection, and proximity sensing in industrial automation, automotive systems, and consumer electronics. This IC supports high-precision ultrasonic sensing, contributing to optimized performance and reliability under demanding conditions.

Package contents include one Texas Instruments TDC1000PW 2-Channel Ultrasonic Sensing Analogue Front End IC in a 28-pin TSSOP package. Supports ultrasonic sensing for level, fluid identification, flow, and proximity applications.

Features a surface mount 28-pin TSSOP package with a length of 9.8 mm and height of 1.05 mm. Operates with a minimum supply voltage of 2.7 V and maximum of 5.5 V. Meets automotive standard AEC-Q100 for reliability in automotive applications.

Wide operating temperature range from -40°C to 125°C. Fully integrated analogue front-end for signal conditioning and conversion. SPI interface enables efficient data communication with microcontrollers. Designed for use in industrial, automotive, and consumer ultrasonic sensing systems.

Surface mount technology enables compact PCB design and automated assembly. Explore more semiconductor and analogue front-end ICs from Texas Instruments on EnvMart, the trusted industrial components marketplace.
