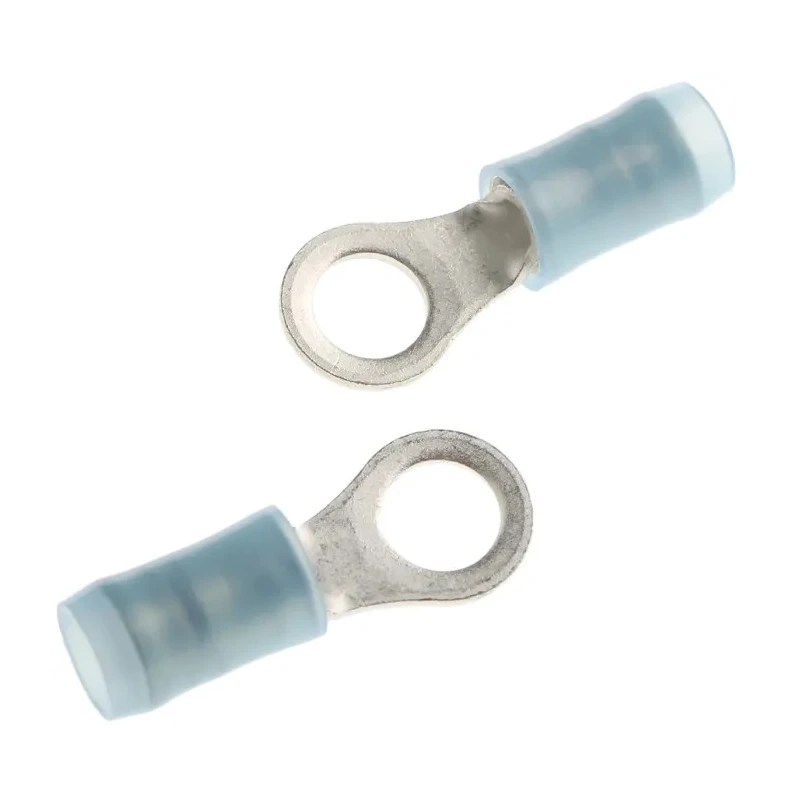

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size, Blue, 16 AWG to 14 AWG Wire Size 51864-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Blue |
| THICKNESS | 0.79mm |
| Model | 51864-2 |
| Insulation | Insulated |
| Overall Length | 21.44mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Pay online using | Or choose to pay later via bank transfer |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 7.92mm |
| Inner Ring Diameter | 5mm |
| Stud Size | M5 |
Key Features
- Constructed with high conductivity copper body for efficient electrical performance.
- Features a tin-plated copper contact for corrosion resistance.
- Insulated with durable blue nylon sleeve for wire size identification and protection.
- Precision formed design ensures uniform and reliable crimping.
- Suitable for use in various industrial applications including instrumentation, power supplies, and automotive wiring.
- Operating temperature rated up to 105°C for broad usability.
- Funnelled wire entry prevents wire strand fraying and speeds installation.
- Compatible with M5 stud size and wire sizes from 16 AWG to 14 AWG.
Product Description
TE Connectivity 51864-2 PIDG Insulated Ring Terminal is engineered for superior electrical connection performance, featuring a high conductivity copper body with tin plating to prevent corrosion. This ring terminal includes a blue nylon insulation sleeve that enhances wire size identification and provides robust protection for the wire and connection point.
Designed to meet demanding industrial and commercial environments, the PIDG ring terminal ensures uniform and reliable crimps through its precision-formed construction and serrated wire barrel that improves contact and tensile strength. The copper sleeve inside protects the wire insulation from damage and prevents fraying during the crimping process.
The ring terminal is compatible with M5 stud sizes and is suitable for wire sizes ranging from 16 AWG to 14 AWG, corresponding to 1 mm² to 2.6 mm² cross-sectional areas. It supports operating temperatures up to 105°C, making it ideal for applications across instrumentation, control panels, power distribution, transportation, and aerospace sectors.
High conductivity copper body for excellent electrical performance. Tin plating on contact for corrosion resistance. Blue nylon insulation sleeve provides wire size identification and protection. Precision formed with serrations for maximum contact and tensile strength.
Copper sleeve supports wire insulation and prevents fraying. Funnelled wire entry facilitates fast and reliable wire insertion. Rated for a maximum operating temperature of 105°C. Compatible with M5 stud size and wire sizes 16 AWG to 14 AWG.
This Ring Terminal is suitable for a wide range of industrial applications including electrical instruments, lighting, power supplies, panel boxes, transportation, lifting equipment, motors, aerospace, and appliance manufacturing. Its reliable construction ensures secure and durable electrical connections critical for safety and performance.
Discover a variety of wire terminals and splices suitable for your electrical and power connector needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is compatible with wire sizes ranging from 16 AWG to 14 AWG, which corresponds to cross-sectional areas of 1 mm² to 2.6 mm².
The maximum operating temperature for this ring terminal is rated at 105°C.
It features a high conductivity copper body with a tin-plated contact for corrosion resistance, and is insulated with a durable blue nylon sleeve.
This unit is designed for M5 stud sizes.
The overall length of this terminal is 21.44 mm.
The funnelled wire entry prevents wire strand fraying and speeds up the installation process by facilitating fast and reliable wire insertion.
This terminal belongs to the PIDG series by TE Connectivity.
The inner ring diameter is 5 mm, while the outer ring diameter is 7.92 mm.
It is suitable for various industrial applications including instrumentation, power supplies, automotive wiring, and control panels.
The thickness of this terminal is 0.79 mm.
The precision formed design ensures uniform and reliable crimping, improving contact and tensile strength.
This terminal is insulated with a durable blue nylon material, which aids in wire size identification and protection.
