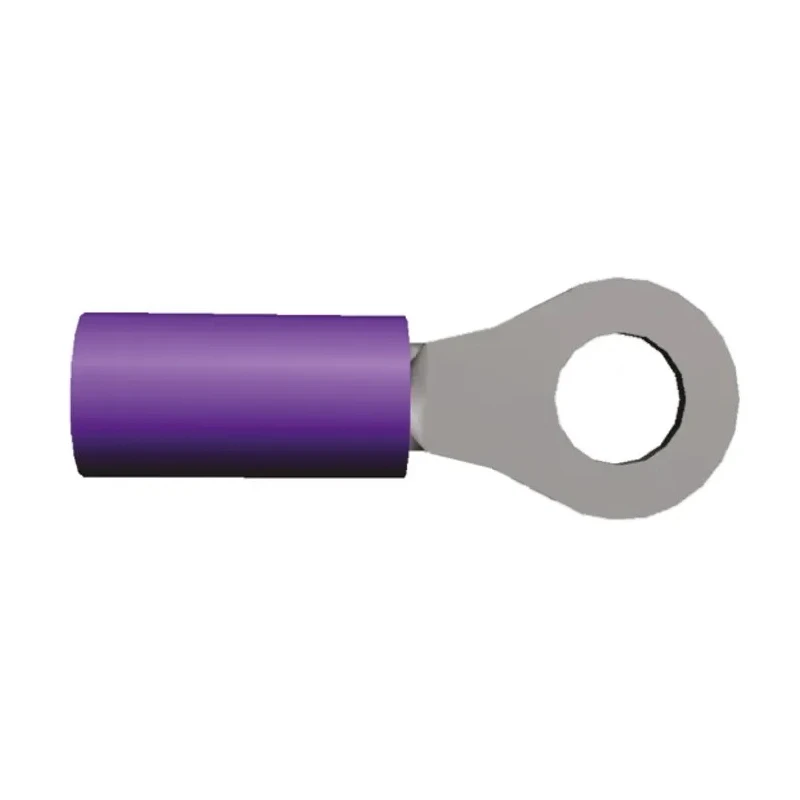

TE Connectivity PIDG Insulated Ring Terminal M3.5 Stud Size 20 AWG Wire Size Red, Purple 152895
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red, Purple |
| THICKNESS | 0.79mm |
| Model | 152895 |
| Insulation | Insulated |
| Overall Length | 19.99mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-5382PBrand: TE ConnectivityManufacturers Part No.: 152895 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.4mm² |
| Maximum Wire Size mm² | 0.65mm² |
| Minimum Wire Size AWG | 20AWG |
| Outer Ring Diameter | 7.14mm |
| Inner Ring Diameter | 3.68mm |
| Stud Size | M3.5 |
Key Features
- High conductivity copper body ensures reliable electrical connections.
- Durable nylon insulation for secure wire protection and color coding.
- Precision copper sleeve inside barrel prevents wire fraying and improves support.
- Serrated wire barrel design provides maximum contact and tensile strength after crimping.
- Funnelled wire entry enables fast and easy wire insertion during production.
- Meets RoHS compliance ensuring safe and environmentally sound materials.
- Suitable for instruments, control panels, power supplies, transportation, motors, and aerospace applications.
Product Description
TE Connectivity 152895 PIDG Insulated Ring Terminal M3.5 stud size designed for high reliability electrical connections in demanding industrial and commercial environments. Featuring a high conductivity copper body and tin-plated contacts, this ring terminal provides excellent electrical performance and corrosion resistance.
The terminal incorporates a nylon outer insulation sleeve, color coded red and purple for easy wire size identification and enhanced mechanical protection. Inside the barrel, precision-formed copper sleeve and serrations ensure maximum contact and tensile strength after crimping, preventing wire fraying and promoting secure mechanical retention.
This terminal has an overall length of 19.99 mm, outer ring diameter of 7.14 mm, inner ring diameter of 3.68 mm, and a thickness of 0.79 mm. It is compatible with a minimum wire size of 20 AWG (0.4 mm²) and maximum wire size of 20 AWG (0.65 mm²), supporting M3.5 stud sizes. The maximum operating temperature rating is 105°C.
The funnelled wire entry design facilitates fast wire insertion for high-speed production lines, improving operational efficiency. These PIDG terminals meet or exceed the requirements of MIL-T-7928, Type II, Class 1 & 2, making them suitable for a wide range of applications including instruments, control panels, lighting, power supplies, panel boxes, transportation equipment, lifting devices, motors, aerospace systems, and household appliances.
High conductivity copper body. Copper sleeve for improved wire insulation support. Serrations for maximum contact and tensile strength. Color-coded nylon sleeves for easy wire size and tooling identification. Funnelled wire entry for easy wire insertion.
RoHS compliant materials ensure environmental safety. Compatible with 20 AWG wire size and M3.5 stud size. Maximum operating temperature of 105°C.
This product is a new item supplied in packaging ready for use in assembly and installation processes. It is ideal for use in industrial, laboratory, manufacturing, automotive, transportation, aerospace, and electrical panel assembly environments.
Explore more ring terminals and wiring accessories from TE Connectivity in the Power Connectors category at EnvMart for professional electrical applications.
Explore more products in our Wire Terminals & Splices category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 105°C.
It is compatible with a minimum and maximum wire size of 20 AWG, which corresponds to 0.4 mm² and 0.65 mm² respectively.
The terminal features a high conductivity copper body with tin-plated contacts and a nylon outer insulation sleeve.
The overall length is 19.99 mm, the outer ring diameter is 7.14 mm, the inner ring diameter is 3.68 mm, and the thickness is 0.79 mm.
The funnelled wire entry design facilitates fast and easy wire insertion, improving efficiency during high-speed production processes.
The serrated wire barrel design provides maximum contact and tensile strength after crimping, preventing wire fraying and ensuring secure mechanical retention.
Yes, this terminal meets RoHS compliance, ensuring that it is made from safe and environmentally sound materials.
This model is suitable for a wide range of applications including instruments, control panels, power supplies, transportation equipment, and aerospace systems.
The nylon insulation is color-coded red and purple for easy wire size identification and enhanced mechanical protection.
It meets or exceeds the requirements of MIL-T-7928, Type II, Class 1 & 2.
This terminal is designed for M3.5 stud sizes.
The country of origin for this ring terminal is India.
