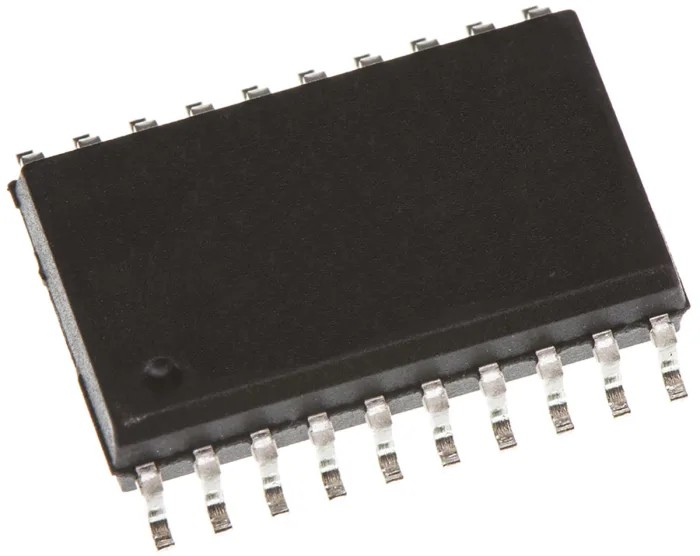

Microchip Resistive Touch Screen Controller 10 bit SPI 8 Wire 20-Pin SOIC AR1020-I/SO
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 10 bit |
| Brand | Microchip |
| Height | 2.05mm |
| Length | 12.8mm |
| Model | AR1020-I/SO |
| Width | 7.5mm |
| Mount Type | Surface |
| Series | AR1000 |
| Input Type | 1 TSC |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Sub Type | Touch Screen Controller |
| Minimum Operating Temperature | -40°C |
| Interface Type | SPI |
| Pin Count | 20 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 3.3V |
| Supply Current | 17mA |
| Sensing Technology | Resistive |
| Sensing Wire Type | 8 Wire |
Key Features
- Provides accurate resistive touch sensing with 10-bit resolution.
- Supports SPI interface for reliable communication.
- Designed for 8-wire resistive touch screen applications.
- Compact 20-pin SOIC package suitable for surface mounting.
- Operates within a supply voltage range of 3.3V to 5V.
- Functions reliably over temperature range from -40°C to 85°C.
- Low supply current consumption of 17mA for energy-efficient operation.
- Part of the AR1000 series of touch screen controllers for human machine interfaces.
Product Description
Microchip AR1020-I/SO is a high-performance resistive touch screen controller designed for 8-wire resistive touch screens with 10-bit resolution. It features a SPI (Serial Peripheral Interface) providing efficient and accurate touch data communication, making it suitable for sophisticated human-machine interface (HMI) systems used in industrial, commercial, and consumer electronics.
This device comes in a compact 20-pin SOIC package, facilitating surface mounting on printed circuit boards (PCB) and space-constrained designs. Operating at a supply voltage range of 3.3V to 5V and consuming a low 17mA supply current, the AR1020-I/SO ensures energy-efficient performance without compromising accuracy.
Designed to work reliably across a wide temperature range from -40°C up to 85°C, this touch screen controller is suitable for various harsh environments and applications including touch panels for industrial machinery, automotive infotainment systems, and portable electronic devices.
With precise 10-bit resolution sensing capability and support for 8-wire resistive touch technology, it guarantees responsive and accurate touch detection required for modern interactive displays. It is part of the AR1000 series, known for robust and versatile touch controller solutions.
Provides accurate resistive touch sensing with 10-bit resolution. Supports SPI interface for reliable communication. Designed for 8-wire resistive touch screen applications. Compact 20-pin SOIC package suitable for surface mounting.
Operates within a supply voltage range of 3.3V to 5V. Functions reliably over temperature range from -40°C to 85°C. Low supply current consumption of 17mA for energy-efficient operation. Small physical dimensions: 12.8mm length, 7.5mm width, and 2.05mm height.
Ideal for industrial, commercial, and consumer touch applications requiring precise human-machine interface control.
This product is an essential component for designers seeking a dependable and accurate resistive touch screen controller with SPI interface, supporting modern embedded systems and interactive displays. Explore additional Microchip Touch Screen Controllers and sensors for enhanced interface solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The AR1020-I/SO provides a resolution of 10 bits for accurate resistive touch sensing.
It supports a SPI (Serial Peripheral Interface) for reliable communication.
This model operates within a supply voltage range of 3.3V to 5V.
The dimensions of this unit are 12.8mm in length, 7.5mm in width, and 2.05mm in height.
It functions reliably over a temperature range from -40°C to 85°C.
The supply current consumption is 17mA, ensuring energy-efficient operation.
It uses resistive touch sensing technology with an 8-wire configuration.
This touch screen controller comes in a compact 20-pin SOIC package suitable for surface mounting.
It is suitable for various applications including industrial machinery, automotive infotainment systems, and portable electronic devices.
This model is part of the AR1000 series of touch screen controllers.
The AR1020-I/SO features a total of 20 pins.
It has an input type of 1 TSC (Touch Screen Controller).
