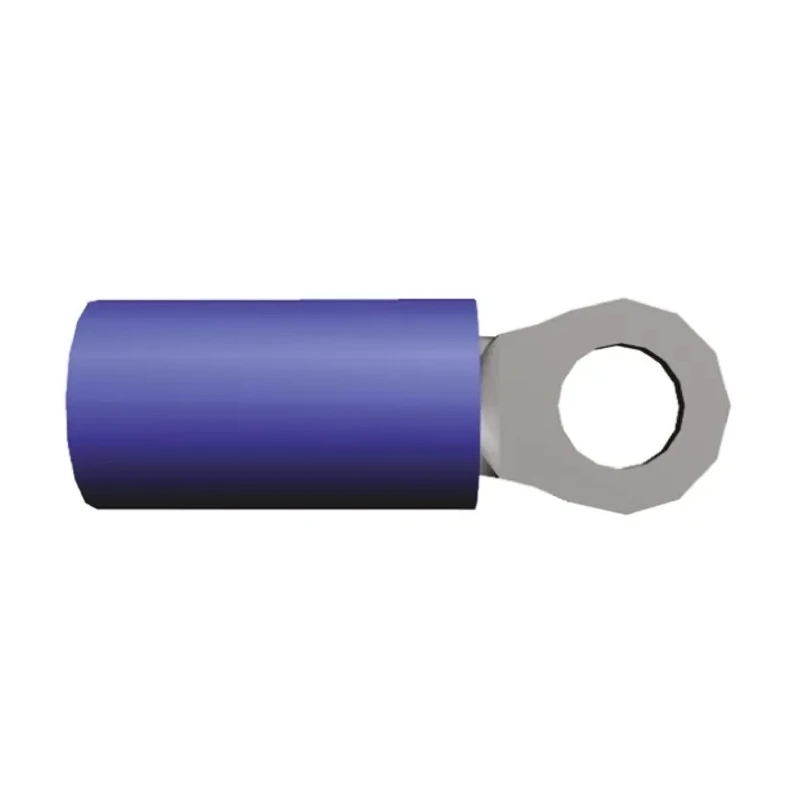

RS PRO PIDG Insulated Ring Terminal M3.5 Stud Size 16 AWG 14 AWG Wire Size Blue 320619
Specifications
| Country of Origin | United States |
|---|---|
| Brand | RS PRO |
| Colour | Blue |
| Model | 320619 |
| Insulation | Insulated |
| Overall Length | 17.86mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Stud Size | M3.5 |
Key Features
- High conductivity copper body ensures excellent electrical performance.
- Features a nylon insulated sleeve for easy wire size identification.
- Serrated barrel provides maximum contact and tensile strength after crimping.
- Funnelled wire entry allows fast and secure wire insertion.
- Suitable for wire sizes from 16 AWG to 14 AWG (1mm² to 2.6mm²).
- Operating temperature up to 105°C for durability in demanding environments.
- Colour coded blue insulation simplifies tool and wire identification.
- Copper contact is plated with tin to resist corrosion.
Product Description
TE Connectivity 320619 PIDG Insulated Ring Terminal is engineered for reliable electrical connections in various industrial and electronic applications. Featuring a high conductivity copper body combined with a copper sleeve, these terminals provide excellent electrical contact and enhanced wire insulation support. The pre-insulated diamond grip (PIDG) design ensures uniform, robust crimps in assembly processes.
The ring terminal has a stud size of M3.5 and supports wire sizes between 16 AWG and 14 AWG (1mm² to 2.6mm²). It is insulated with a blue nylon sleeve that facilitates quick wire size identification and protects connections against abrasion and environmental factors.
The barrel includes serrations to maximize contact and tensile strength after crimping, while the funnelled entry design enables fast wire insertion, preventing strand damage or fraying. The copper contact plating with tin enhances corrosion resistance and prolongs terminal life.
Operating reliably up to 105°C, this Ring Terminal is well suited for demanding environments including instruments, control panels, lighting, motors, aerospace systems, and other industrial equipment.
This product is manufactured in the United States under TE Connectivity's stringent quality standards, offering a versatile and trustworthy solution for electrical wiring applications.
High conductivity copper body ensures excellent electrical performance. Nylon insulated sleeve for protection and identification. Serrated barrel for strong crimping and contact. Funnelled wire entry for easy insertion and reduced strand damage.
Supports wire sizes AWG 16 to AWG 14 (1mm² to 2.6mm²). Operates up to 105°C for harsh environments. Colour-coded blue for easy identification. Tin-plated copper contacts resist corrosion. Compact 17.86mm overall length. Ideal for use in industrial, aerospace, automotive, and power electronics applications.
Explore the Electronics & Electricals category for a wide selection of reliable wire terminals and connectors on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports wire sizes from 16 AWG to 14 AWG, which corresponds to 1mm² to 2.6mm².
The stud size for this terminal is M3.5.
It can operate reliably at temperatures up to 105°C.
The terminal features a high conductivity copper body with a tin plating for corrosion resistance, and it is insulated with nylon.
The funnelled wire entry design allows for fast and secure wire insertion, reducing the risk of strand damage or fraying during installation.
The overall length of this model is 17.86mm.
It is suitable for use in various applications including instruments, control panels, lighting, motors, aerospace systems, and other industrial equipment.
The serrated barrel maximizes contact and tensile strength after crimping, ensuring a robust electrical connection.
The insulation is color-coded blue to simplify tool and wire identification during installation.
This product is manufactured in the United States under TE Connectivity's stringent quality standards.
The terminal features nylon insulation, which protects connections against abrasion and environmental factors.
The contact material is copper, which ensures excellent electrical performance.
