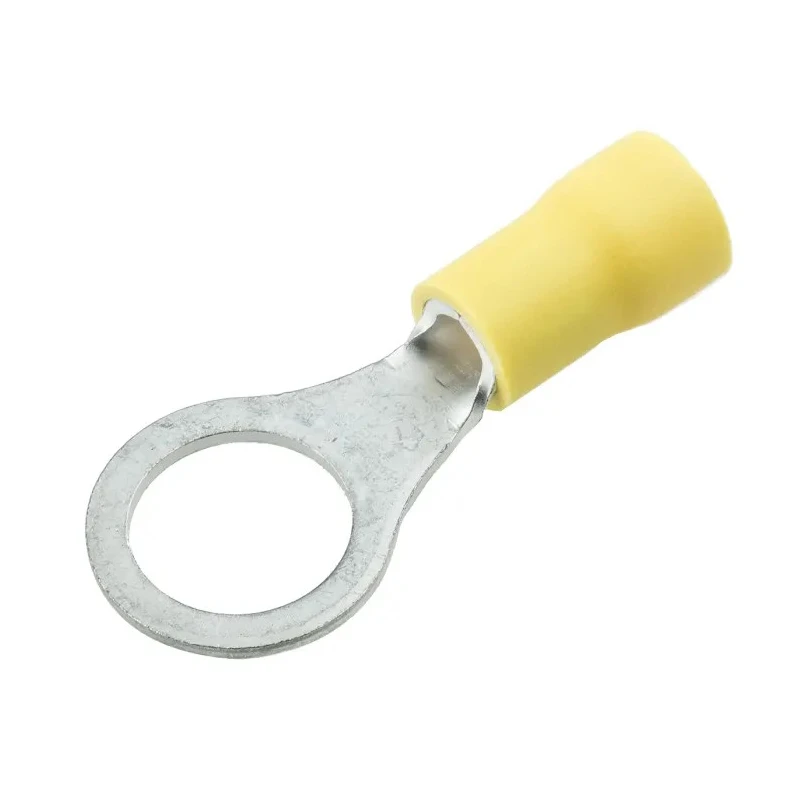

JST FV Insulated Ring Terminal M10 Stud Size Yellow 12 AWG 10 AWG Vinyl Insulation FVWS5.5-10(LF)
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | JST |
| Colour | Yellow |
| THICKNESS | 1mm |
| Model | FVWS5.5-10(LF) |
| Insulation | Insulated |
| Overall Length | 34.7mm |
| Series | FV |
| Insulation Material | Vinyl |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 688-1278Brand: JSTManufacturers Part No.: FVWS5.5-10(LF) |
| Minimum Wire Size mm² | 2.6mm² |
| Maximum Wire Size mm² | 6.6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Outer Ring Diameter | 15mm |
| Inner Ring Diameter | 10.5mm |
| Stud Size | M10 |
Key Features
- Constructed with oxygen-free copper ensuring excellent electrical conductivity.
- Vinyl insulation provides high flame resistance and electrical insulation.
- Flared entry design for easier wire insertion and crimping.
- High strength brazing for mechanical durability and reliable connection.
- Rated for high temperature resistance up to 105°C.
- Designed for use with M10 stud terminals.
- Overall length of 34.7 mm with 15 mm outer ring diameter.
- Suitable for wire sizes ranging from 12 AWG to 10 AWG (2.6 mm² to 6.6 mm²).
Product Description
JST FVWS5.5-10(LF) insulated ring terminal is a premium electrical connector designed for wire termination with M10 stud size applications. It features oxygen-free copper for superior electrical conductivity combined with a vinyl insulation material that offers high flame resistance and exceptional insulating properties. The terminal is designed with a flared entry to facilitate easier wire insertion and reliable crimping.
The ring terminal is suitable for wire gauges ranging from 12 AWG to 10 AWG (2.6 mm² to 6.6 mm²), making it ideal for various electrical and electronic connection applications in industrial, automotive, and electrical distribution systems. Its high-strength brazing ensures mechanical durability and a secure connection capable of withstanding vibrations and mechanical stress.
The vinyl insulation is rated for high temperature resistance up to 105°C, supporting use in demanding environments. The overall length of 34.7 mm and the yellow vinyl insulation allow for easy identification and compliance with standardized wiring color codes.
Manufactured in Japan, this ring terminal guarantees quality and precision, tailored for professional and industrial electrical installation needs. Constructed with oxygen-free copper for excellent electrical conduction.
Vinyl insulation ensures flame resistance up to 105°C. Flared entry design for efficient wiring and crimping. High-strength brazing for durability and secure connections. Fits M10 stud size with overall length of 34.7 mm.
Compatible with 12 AWG to 10 AWG wire sizes. Yellow insulation color for wire gauge identification. Made in Japan for assured manufacturing quality.
This insulated Ring Terminal is suited for electronics, power distribution, automotive wiring harnesses, industrial machinery wiring, and control panel assemblies. It ensures reliable electrical connections with improved safety due to its insulating properties and high temperature resistance. Browse EnvMart's comprehensive range of electrical connectors and terminals for matching components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is compatible with wire sizes ranging from 12 AWG to 10 AWG, which corresponds to 2.6 mm² to 6.6 mm².
The overall length of this ring terminal is 34.7 mm.
It features vinyl insulation, which provides high flame resistance and electrical insulation.
The vinyl insulation is rated for high temperature resistance up to 105°C.
This unit is designed for use with M10 stud terminals.
The outer ring diameter is 15 mm.
It is manufactured in Japan, ensuring quality and precision.
The inner ring diameter measures 10.5 mm.
It is constructed with oxygen-free copper, which ensures excellent electrical conductivity.
It has a flared entry design that facilitates easier wire insertion and crimping.
It features high-strength brazing for mechanical durability and a reliable connection, capable of withstanding vibrations and mechanical stress.
This terminal is suitable for various electrical and electronic connection applications in industrial, automotive, and electrical distribution systems.
