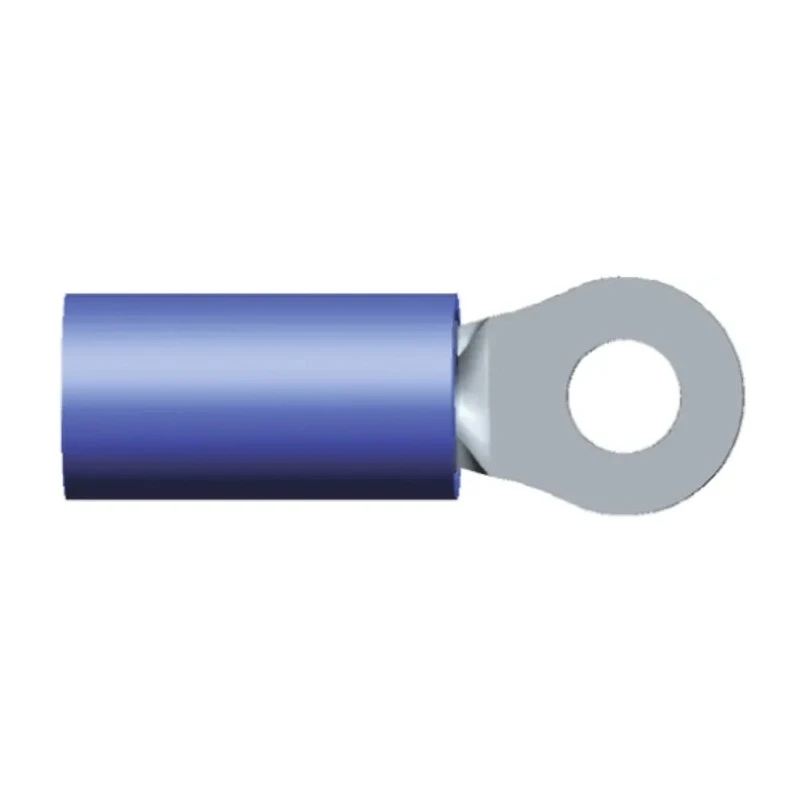

TE Connectivity PIDG Insulated Ring Terminal M2.5 Stud Size 16 AWG 14 AWG Wire Size Blue 328996
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Blue |
| Model | 328996 |
| Insulation | Insulated |
| Overall Length | 17.86mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-5379PBrand: TE ConnectivityManufacturers Part No.: 328996 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Stud Size | M2.5 |
Key Features
- Constructed with high conductivity copper for optimal electrical performance.
- Insulated with blue nylon sleeve for wire size identification and insulation support.
- Serrated wire barrel ensures maximum contact and tensile strength after crimping.
- Compatible with wire sizes 16 AWG to 14 AWG and stud size M2.5.
- Rated for maximum operating temperature of 105°C for reliable performance.
- Funnelled wire entry design allows fast and easy wire insertion during production.
- Reliable and uniform crimp achievable using specialized tool dies.
- Applicable in instruments, control panels, lighting, power supplies, motors, aerospace, and transportation sectors.
Product Description
TE Connectivity 328996 PIDG Insulated Ring Terminal is engineered for consistent and reliable electrical connections in demanding environments. This ring terminal features a precision-formed copper body with tin-plated contacts, ensuring excellent conductivity and corrosion resistance. The ring terminal is insulated with a color-coded blue nylon sleeve, which aids quick wire size identification and provides insulation support to prevent wire fraying. Its funnelled wire entry allows for efficient insertion during high-speed manufacturing processes.
The PIDG (Pre-Insulated Diamond Grip) design incorporates serrations inside the barrel for enhanced contact and tensile strength after crimping, ensuring a uniform and secure connection. Suitable for wire sizes ranging from 16 AWG to 14 AWG and compatible with M2.5 stud sizes, this ring terminal is rated for a maximum operating temperature of 105°C.
These terminals meet or exceed many standards required in industrial, aerospace, automotive, and electrical control applications. Typical usage includes instrumentation, control systems, lighting panels, power supplies, motors, aerospace equipment, transportation assemblies, and appliances.
Constructed with high conductivity copper for optimal electrical performance. Insulated with blue nylon sleeve for wire size identification and insulation support. Serrated wire barrel ensures maximum contact and tensile strength after crimping.
Compatible with wire sizes 16 AWG to 14 AWG and stud size M2.5. Rated for maximum operating temperature of 105°C for reliable performance. Funnelled wire entry design allows fast and easy wire insertion during production.
Reliable and uniform crimp achievable using specialized tool dies. Applicable in instruments, control panels, lighting, power supplies, motors, aerospace, and transportation sectors. Explore more Ring Terminals and related connectors in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This ring terminal is rated for a maximum operating temperature of 105°C.
It is compatible with wire sizes ranging from 16 AWG to 14 AWG.
This model accommodates a stud size of M2.5.
The terminal features a copper body with tin-plated contacts and is insulated with a blue nylon sleeve.
The overall length of this terminal is 17.86 mm.
It has a funnelled wire entry design that allows for fast and easy wire insertion during production.
The serrated wire barrel ensures maximum contact and tensile strength after crimping.
Typical applications include instruments, control panels, lighting, power supplies, motors, aerospace, and transportation sectors.
The insulation material used is nylon, which provides insulation support and wire size identification.
The contact material is copper, which is known for its high conductivity.
The PIDG (Pre-Insulated Diamond Grip) design incorporates serrations inside the barrel for enhanced contact and tensile strength after crimping.
This ring terminal is manufactured in India.
