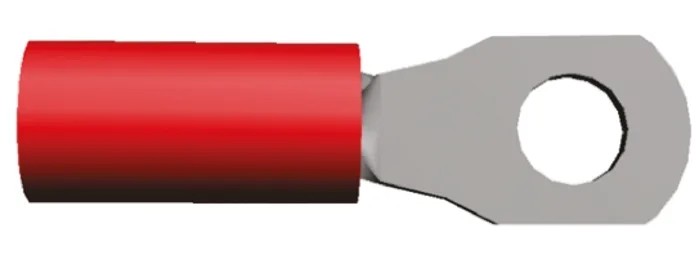

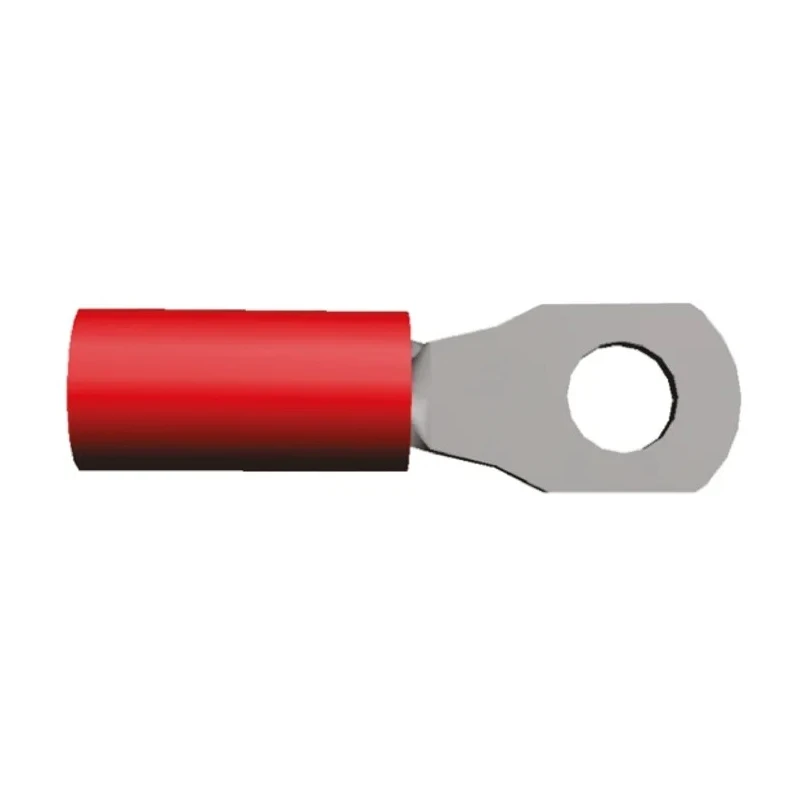

TE Connectivity PIDG Insulated Ring Terminal M2.5 Stud Size 22 AWG 16 AWG Wire Size Red 130451
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| THICKNESS | 0.8mm |
| Model | 130451 |
| Insulation | Insulated |
| Overall Length | 20.5mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-5357PBrand: TE ConnectivityManufacturers Part No.: 130451 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.25mm² |
| Maximum Wire Size mm² | 1.6mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 5.5mm |
| Inner Ring Diameter | 3.1mm |
| Stud Size | M2.5 |
Key Features
- Constructed with copper contact material plated with tin for enhanced conductivity and corrosion resistance.
- Equipped with a nylon insulated sleeve colored red for visual wire gauge identification.
- Features an overall terminal length of 20.5 mm for secure mechanical and electrical connections.
- Supports wire sizes ranging from 0.25 mm² to 1.6 mm², suitable for various electrical applications.
- Has a 5.5 mm outer ring diameter and 3.1 mm inner ring diameter compatible with M2.5 stud hardware.
- Designed to operate safely up to a maximum temperature of 105°C under industrial conditions.
- The terminal thickness is 0.8 mm ensuring mechanical strength and durability.
- Offers reliable PIDG rectangular tongue wire crimp connection for industrial and electronic installation.
Product Description
TE Connectivity 130451 PIDG insulated ring terminal is engineered for dependable electrical connections requiring M2.5 stud size compatibility. The ring terminal supports wire gauges from 22 AWG to 16 AWG, suitable for wiring cross sections between 0.25 mm² and 1.6 mm². It incorporates a precision-formed copper barrel with tin plating for superior conductivity and reduced corrosion risks.
The terminal is enclosed in a red nylon insulation sleeve, providing color-coded identification and added safety. With an overall length of 20.5 mm and a terminal thickness of 0.8 mm, this ring terminal assures mechanical reliability in demanding industrial environments.
Key features include an outer ring diameter of 5.5 mm and an inner ring diameter of 3.1 mm that fits M2.5 studs, making it suitable for electronics, power connectors, and control panel wiring solutions. The terminal is rated for continuous operation up to 105°C, making it optimal for a broad range of electrical interconnections.
TE Connectivity's PIDG insulated terminals are designed for ease of installation with crimping tools, providing secure and tensile-resistant wire terminations. These terminals play a critical role in electrical panels, automotive wiring harnesses, and general power distribution modules.
Constructed from copper contact material with tin plating for corrosion resistance. Insulation made from durable nylon with a red color coding for wire gauge identification. Overall length of 20.5 mm suitable for robust mechanical connections.
Supports wire sizes from 22 AWG to 16 AWG, enabling versatility in electrical applications. Fits M2.5 stud size hardware with precise ring dimensions. Operational temperature range up to 105°C ensuring durability in harsh environments.
Thickness of 0.8 mm provides mechanical strength.
This TE Connectivity PIDG Insulated Ring Terminal 130451 is ideal for industrial, electronic component manufacturing, electrical panel assembly, and power connector integration. Select this ring terminal to ensure safe, efficient, and reliable wire-to-stud connections compliant with industry standards.
Explore more quality Ring Terminals and connectors in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal supports wire sizes ranging from 22 AWG to 16 AWG, which corresponds to cross-sectional areas between 0.25 mm² and 1.6 mm².
The maximum operating temperature for this terminal is 105°C, making it suitable for various industrial applications.
The overall length of this terminal is 20.5 mm, with an outer ring diameter of 5.5 mm and an inner ring diameter of 3.1 mm.
The contact material of this terminal is copper, which is plated with tin to enhance conductivity and reduce corrosion risks.
This terminal features a nylon insulated sleeve, which is colored red for visual wire gauge identification.
This terminal is designed to fit M2.5 stud size hardware, ensuring secure connections.
The terminal thickness is 0.8 mm, providing mechanical strength for reliable connections.
It is designed for ease of installation with crimping tools, providing secure and tensile-resistant wire terminations.
This terminal belongs to the PIDG series, which is known for its reliable electrical connections.
The country of origin for this terminal is India.
This terminal is suitable for various electrical applications, including wiring in electronics, power connectors, and control panels.
The red color coding on the nylon insulation provides visual identification for wire gauge, helping to ensure proper connections.
