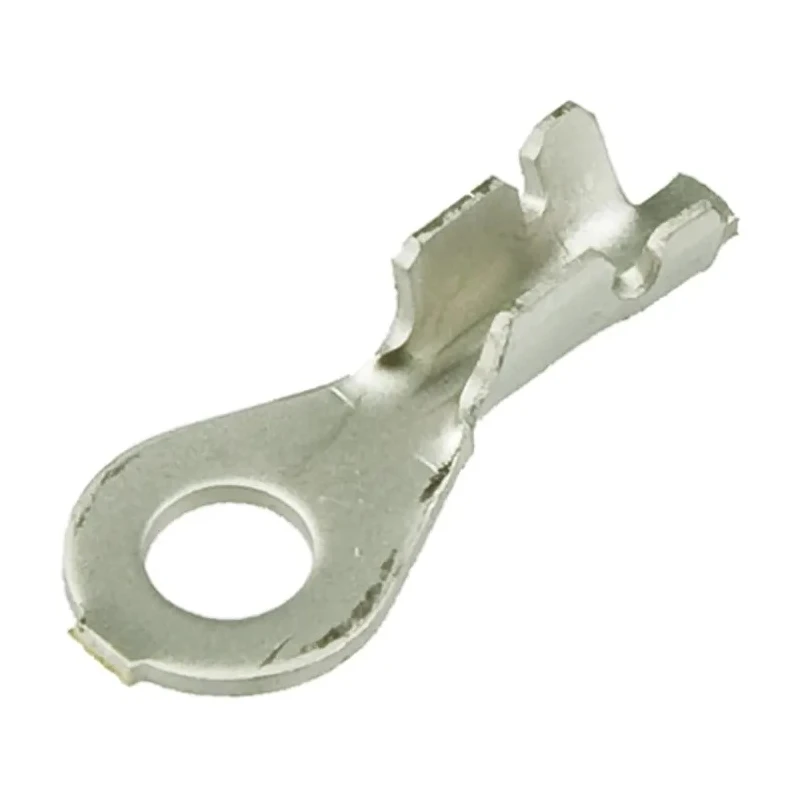

TE Connectivity Uninsulated Ring Terminal M5 Stud Size 22 AWG to 18 AWG Wire Size Grey 42036-2
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Grey |
| THICKNESS | 0.51mm |
| Model | 42036-2 |
| Insulation | Uninsulated |
| Overall Length | 16.81mm |
| Contact Material | Brass |
| Series | 42036 |
| Maximum Operating Temperature | 110°C |
| Minimum Operating Temperature | -40°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-0514Brand: TE ConnectivityManufacturers Part No.: 42036-2Distrelec Article No.: 30281182 |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 1mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Outer Ring Diameter | 7.52mm |
| Inner Ring Diameter | 5mm |
| Stud Size | M5 |
Key Features
- Constructed from durable brass contact material for reliable conductivity.
- Uninsulated design suitable for various electrical and power connector applications.
- Outer ring diameter of 7.52 mm and inner ring diameter of 5 mm for secure connections.
- Fits wires with minimum size 22 AWG and maximum size 18 AWG.
- Overall length of 16.81 mm and thickness of 0.51 mm for compact installation.
- Operates safely at temperatures from -40°C to 110°C.
- Gray color coding for easy identification in wiring systems.
- Manufactured in the United States ensuring quality standards.
Product Description
TE Connectivity 42036-2 uninsulated ring terminal is designed for use in electrical and power connector applications requiring a reliable and secure connection. Featuring an M5 stud size, it accepts wire sizes ranging from 22 AWG to 18 AWG. The contact is made from brass, providing excellent conductivity and durability without any insulation, making it ideal for use in environments where insulation is not required.
The ring terminal has an outer ring diameter of 7.52 mm and an inner ring diameter of 5 mm, ensuring compatibility with M5 bolt or stud connections. Its compact length of 16.81 mm and thickness of 0.51 mm allow it to fit efficiently in tight wiring assemblies. Color coded in grey, this terminal facilitates easy visual wiring organization and management.
It is rated for operation within a temperature range from -40°C to 110°C, making it suitable for a wide variety of industrial, electronic, automotive, HVAC, and manufacturing applications. The terminal is manufactured in the United States, abiding by quality and manufacturing standards for electrical components. This ring terminal is particularly suited for crimping applications where a robust mechanical and electrical connection is needed without insulation.
Constructed from brass for high conductivity and corrosion resistance. Uninsulated to accommodate specific wiring installation needs. Supports wire sizes from 22 AWG to 18 AWG for flexibility. Designed for M5 stud size connection compatibility.
Compact dimensions facilitate ease of use in confined spaces. Operates within a broad temperature range suitable for various environments. Gray color coding for organized wiring identification. Manufactured under reliable quality standards in the United States.
This TE Connectivity Ring Terminal is an essential component in electronic components, power connector assemblies, wire terminals, and splices. It is commonly used in industrial electrical systems, telecommunications, power distribution, and automotive wiring harnesses. EnvMart offers this product for professionals requiring dependable and consistent termination solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports wire sizes ranging from 22 AWG to 18 AWG.
It is designed for an M5 stud size connection.
The outer ring diameter is 7.52 mm and the inner ring diameter is 5 mm.
The overall length is 16.81 mm and the thickness is 0.51 mm.
It is constructed from brass, which provides excellent conductivity.
It operates safely within a temperature range from -40°C to 110°C.
This terminal is uninsulated, making it suitable for specific wiring installation needs.
It is color coded in grey for easy identification in wiring systems.
This ring terminal is manufactured in the United States.
It is commonly used in industrial electrical systems, telecommunications, power distribution, and automotive wiring harnesses.
The maximum wire size is 1 mm².
The minimum wire size is 0.3 mm².
