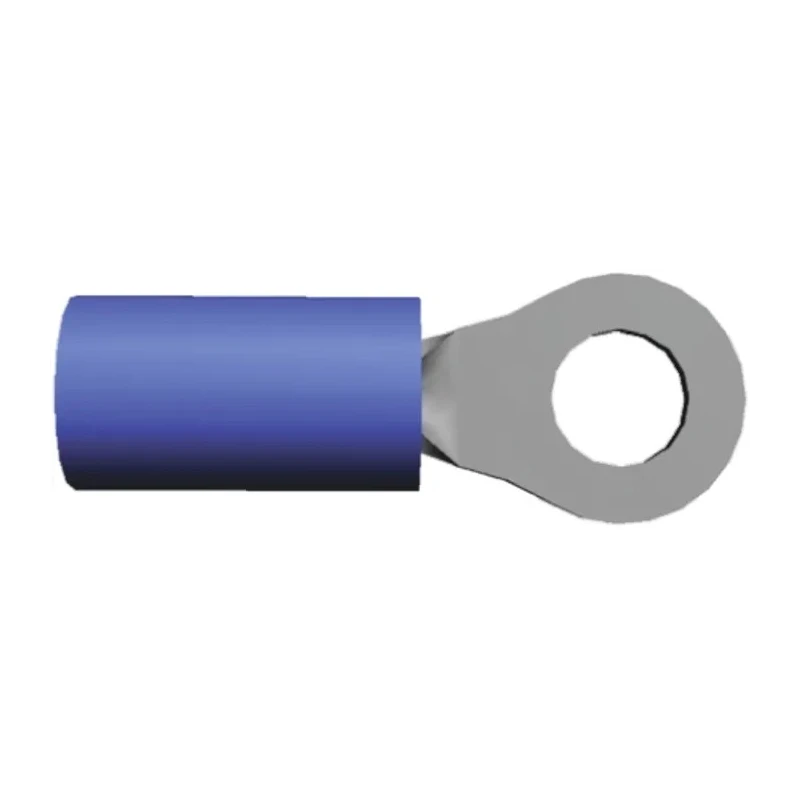

RS PRO PIDG Insulated Ring Terminal Blue Nylon M3.5 Stud Size 16 AWG 14 AWG 326882
Specifications
| Country of Origin | United States |
|---|---|
| Brand | RS PRO |
| Colour | Blue |
| THICKNESS | 0.79mm |
| Model | 326882 |
| Insulation | Insulated |
| Overall Length | 20.65mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 0.312mm |
| Inner Ring Diameter | 0.145mm |
| Stud Size | M3.5 |
Key Features
- Constructed with high conductivity copper body for reliable electrical transmission.
- Features nylon insulation sleeve color-coded blue for easy wire size identification.
- Pre-insulated diamond grip (PIDG) design ensures uniform, secure crimps.
- Serrations inside the wire barrel provide maximum contact and tensile strength after crimping.
- Funnelled entry allows fast and easy wire insertion during high-speed production.
- Suitable for a wide range of industrial wiring applications including aerospace and automotive.
- Meets RoHS standards for environmental compliance.
- Maximum operating temperature is 105°C ensuring durability under heat stress.
Product Description
TE Connectivity 326882 PIDG Insulated Ring Terminal is a blue, nylon-insulated ring terminal with M3.5 stud size, designed for use with 16 AWG to 14 AWG wire sizes. It delivers reliable electrical connections in demanding industrial, aerospace, automotive, and manufacturing environments.
This terminal features a high conductivity copper body and barrel with serrations inside the wire barrel to maximize contact integrity and tensile strength after crimping. The copper sleeve surrounding the barrel enhances wire insulation and prevents fraying to maintain long-lasting connections.
The nylon insulation sleeve is color-coded blue for quick and accurate wire size identification, improving efficiency during assembly. The funnelled wire entry design facilitates fast wire insertion, supporting high-volume production processes.
Designed in compliance with RoHS environmental standards, this terminal supports sustainable manufacturing and use. The terminal offers reliable performance up to a maximum operating temperature of 105°C, making it suitable for harsh operating conditions.
Applications include control panels, power supplies, transportation equipment, lifting devices, instruments, and motors in various industrial and commercial sectors. Constructed with high conductivity copper for excellent electrical performance.
Nylon insulation provides durability and color coding for easy wire size identification. PIDG design ensures consistent and reliable crimps in electrical connections. Serrated barrel gives strong and secure wire contact after crimping.
Funnelled entry allows quick and reliable wire insertion. Compliant with RoHS standards for environmental safety. Suitable for industrial, aerospace, automotive, and power equipment wiring. Resistant to temperatures up to 105°C for high heat environments.
These TE Connectivity PIDG ring terminals provide a versatile and dependable solution for electrical wiring in many technical fields. Explore EnvMart's broad selection of Ring Terminals and connectors for your next project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this insulated ring terminal is 105°C, making it suitable for high heat environments.
This model is designed for use with wire sizes ranging from 16 AWG to 14 AWG, or 1 mm² to 2.6 mm².
The contact material of this terminal is copper, which provides high conductivity for reliable electrical connections.
The insulation material used in this ring terminal is nylon, which enhances durability and provides color coding for easy identification.
The stud size for this terminal is M3.5, which determines its compatibility with specific mounting applications.
The PIDG design ensures uniform and secure crimps, enhancing the reliability of electrical connections after crimping.
The overall length of this ring terminal is 20.65 mm, which is important for fitting in specific applications.
The nylon insulation sleeve is color-coded blue, which aids in quick and accurate wire size identification during assembly.
The inner ring diameter is 0.145 mm and the outer ring diameter is 0.312 mm, which are crucial for ensuring a proper fit on the stud.
Yes, this terminal meets RoHS standards for environmental compliance, supporting sustainable manufacturing practices.
This terminal is suitable for a wide range of applications including aerospace, automotive, control panels, and power supplies.
The funnelled entry design of this terminal allows for fast and easy wire insertion, which is beneficial in high-speed production environments.
