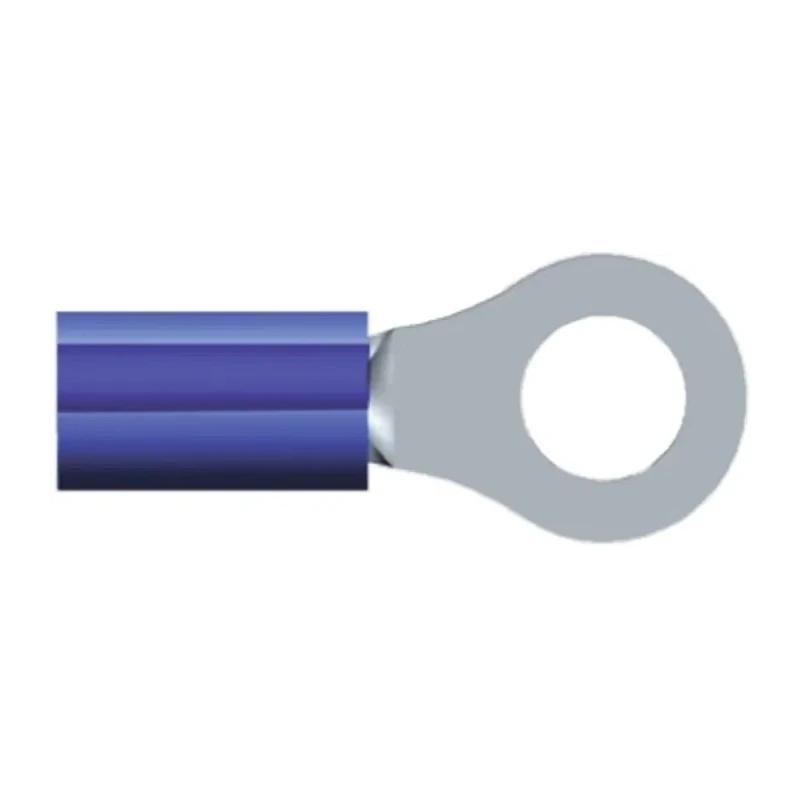

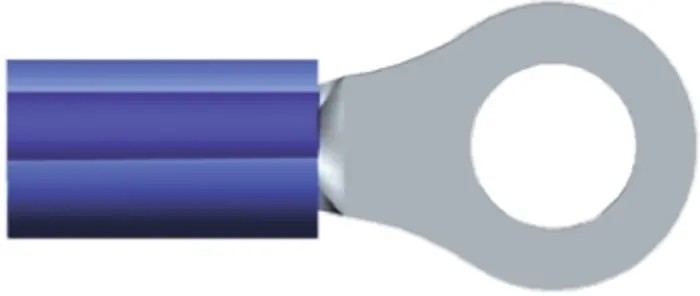

TE Connectivity PIDG Insulated Ring Terminal M6 Stud Size 16 AWG 14 AWG Wire Size Blue 2-320563-3

TE Connectivity 2-320563-3 PIDG Insulated Ring Terminal is engineered for reliable wire crimping with M6 stud size compatibility and wire sizes ranging from 16 AWG to 14 AWG, featuring blue nylon insulation. This ring terminal is crafted from a precision-formed high conductivity copper body and barrel, ensuring superior electrical conductivity and mechanical strength. Internal serrations in the barrel maximize contact and tensile strength after crimping, contributing to a secure, uniform connection.

The copper sleeve surrounding the wire barrel supports the insulation and prevents wire fraying, enhancing the durability of the connection. The outer nylon insulation sleeve is color-coded blue to aid quick identification of wire size and tooling requirements during assembly.

Designed with a funnelled wire entry, it allows for fast wire insertion and minimizes wire strand damage, making it suitable for automated high-speed production lines. Operating at a maximum temperature of 105°C, the PIDG ring terminals are applicable in demanding circuit environments where consistent performance and safety are essential.

These terminals meet rigorous standards and are suitable for a wide array of applications including instrumentation and control systems, power supplies, panel box wiring, transportation, lifting equipment, motors, aerospace systems, and household appliances. The product's design facilitates uniform and reliable crimps using specialized tool dies, enhancing connection quality and durability.

Manufactured in the United States, this insulated ring terminal supports industrial, laboratory, commercial, and transportation electrical wiring needs with robust construction and reliable performance. The blue color-coded nylon insulation provides an additional layer of protection and easy identification in any electrical assembly environment.

Constructed with high conductivity copper body for excellent electrical performance. Features copper sleeve to improve wire insulation support and prevent fraying. Contains serrations within the barrel to ensure maximum contact and tensile strength after crimping.

Outer nylon sleeve is color-coded blue for easy wire size identification. Designed funnelled entry allows quick and easy wire insertion for high-speed production. Suitable for applications in instrumentation, control, power supplies, panel boxes, transportation, and aerospace.

Operates reliably at temperatures up to 105°C. Manufactured according to PIDG series standards for durable, uniform crimps. Pre-insulated with nylon insulation material for additional protection. Ideal for use in commercial, industrial, and transportation electrical wiring systems.
