TE Connectivity PIDG Insulated Ring Terminal M2.5 Stud Size 22 AWG 16 AWG Wire Size Red 130451

Free Delivery in India | Lowest Global Shipping Charges

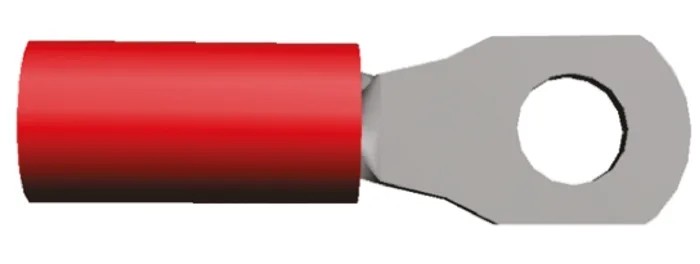

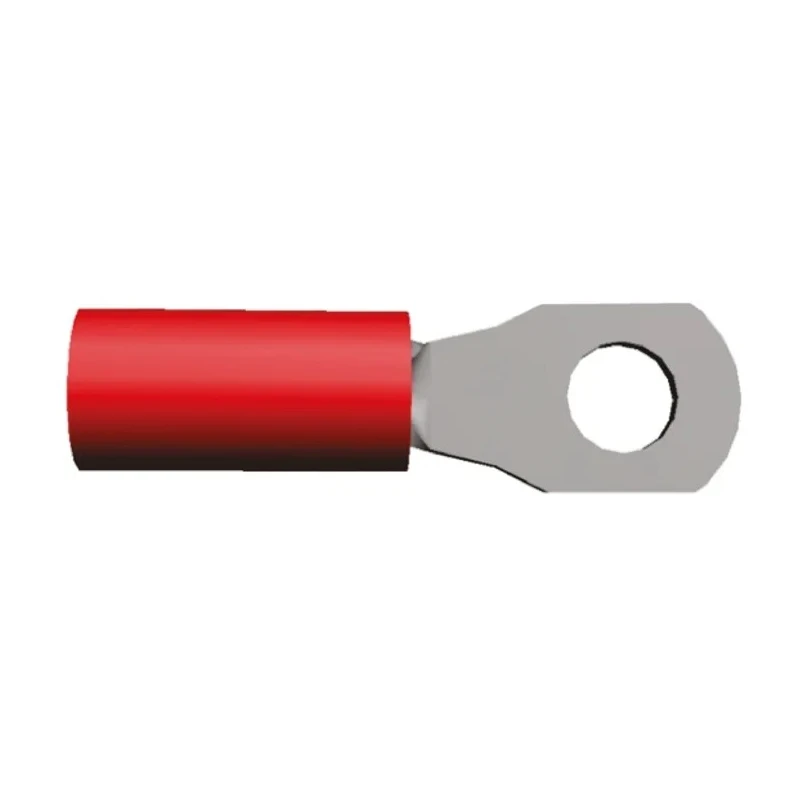

TE Connectivity PIDG Insulated Ring Terminal M2.5 Stud Size 22 AWG 16 AWG Wire Size Red 130451

Name: TE Connectivity PIDG Insulated Ring Terminal M2.5 Stud Size 22 AWG 16 AWG Wire Size Red 130451
Brand: TE Connectivity
SKU: 356185
Price: 1.37 USD
Availability: InStock



Category Ring Terminal Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Colour	Red
THICKNESS	0.8mm
Model	130451
Insulation	Insulated
Overall Length	20.5mm
Contact Material	Copper
Series	PIDG
Maximum Operating Temperature	105°C
Insulation Material	Nylon
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	710-5357Brand: TE ConnectivityManufacturers Part No.: 130451Distrelec Article No.: 304-47-128
Contact Plating	Tin
Minimum Wire Size mm²	0.25mm²
Maximum Wire Size mm²	1.6mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Outer Ring Diameter	5.5mm
Inner Ring Diameter	3.1mm
Stud Size	M2.5

Key Features

Insulated ring terminal with PIDG series design for reliable electrical connections.
Stud size of M2.5 designed to fit corresponding bolts or studs.
Suitable for wire sizes ranging from 22 AWG to 16 AWG for versatility.
Red nylon insulation sleeve provides electrical insulation and color coding.
Copper contact material with tin plating ensures good conductivity and corrosion resistance.
Outer ring diameter is 5.5 mm, and inner ring diameter is 3.1 mm for precise fitment.
Overall length of the terminal is 20.5 mm for installation in tight spaces.
Maximum operating temperature rated at 105°C for reliability in most applications.

Product Description

TE Connectivity 130451 PIDG Insulated Ring Terminal is a high-quality, reliable electrical connector designed for professional and industrial use. Featuring a precision-formed copper contact with tin plating and a color-coded red nylon insulation made to fit M2.5 studs, this ring terminal is suitable for wire sizes from 22 AWG to 16 AWG (0.25 mm² to 1.6 mm²). The PIDG series ensures maximum contact and tensile strength after crimping due to serrations inside the wire barrel. The terminal's overall length of 20.5 mm and thickness of 0.8 mm facilitate durable and precise installations.

The red nylon insulation sleeve enhances electrical insulation and quick identification, suitable for electrical wiring tasks in industrial, automotive, HVAC, manufacturing, and laboratory environments. With an outer ring diameter of 5.5 mm and an inner ring diameter of 3.1 mm, the ring terminal ensures secure fastening on the specified stud size M2.5.

This product is rated for a maximum operating temperature of 105°C, making it appropriate for conditions requiring moderate heat tolerance. The copper material's tin plating offers corrosion resistance for long-term durability in harsh environments.

PIDG insulated ring terminals like the TE Connectivity 130451 are widely used in power connectors assemblies, improving production efficiency and ensuring secure electrical connections. This ring terminal is ideal for tasks requiring safe, insulated wire termination and excellent mechanical reliability.

Insulated ring terminal with PIDG series precision-formed barrel. M2.5 stud size for secure fastening and compatibility. Wire size compatibility from 22 AWG to 16 AWG for broad use cases. Red nylon insulation sleeve offering electrical insulation and easy identification.

Copper contact with tin plating supports conductivity and corrosion resistance. Overall length of 20.5 mm permits fitting in confined spaces. Outer ring diameter 5.5 mm and inner ring diameter 3.1 mm for precise fitting.

Rated maximum operating temperature up to 105°C for reliable performance. Browse more power connectors and Ring Terminals from TE Connectivity at EnvMart to find optimal electrical connection solutions for your industrial or commercial needs.
