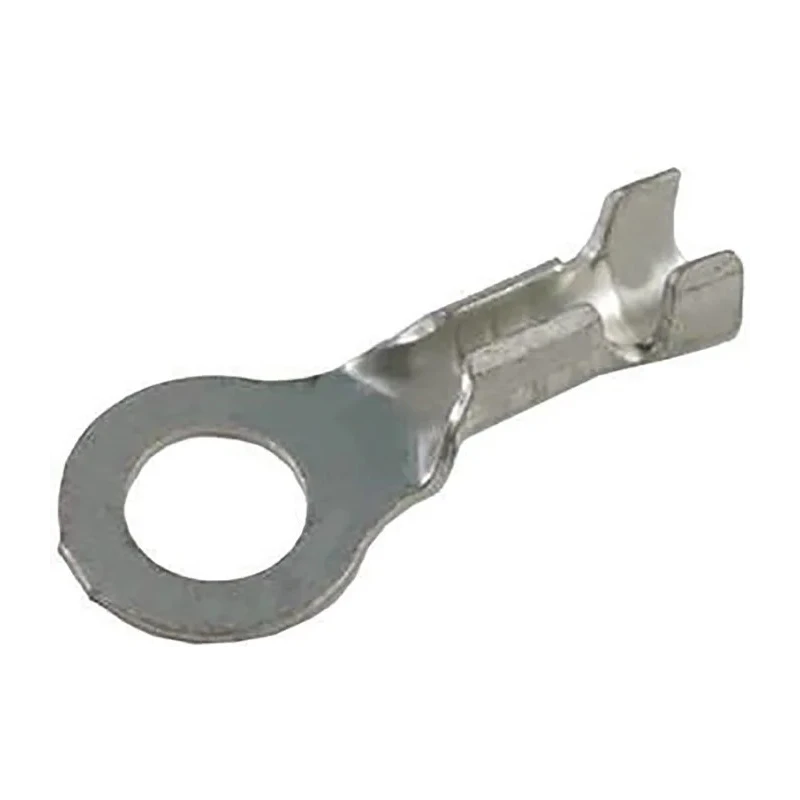

JST Uninsulated Ring Terminal, M5 Stud Size, 20 AWG to 18 AWG Wire Size, Grey LRB-1.0T-M5
Specifications
| Country of Origin | India |
|---|---|
| Brand | JST |
| Colour | Grey |
| THICKNESS | 0.6mm |
| Model | LRB-1.0T-M5 |
| Insulation | Uninsulated |
| Overall Length | 21.75mm |
| Contact Material | Brass |
| Series | LRB |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 688-1423Brand: JSTManufacturers Part No.: LRB-1.0T-M5 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 18AWG |
| Outer Ring Diameter | 9.5mm |
| Inner Ring Diameter | 5.3mm |
| Stud Size | M5 |
Key Features
- Manufactured from brass ensuring durability and long life service.
- Uninsulated design suitable for a variety of electrical wiring applications.
- Tin plated contact surface enhances corrosion resistance.
- Grey color coding for easy identification and standard compliance.
- Compact overall length of 21.75 mm for efficient installation in tight spaces.
- Provides reliable electrical connections in industrial and commercial environments.
- Compatible with wire cross sections from 0.5 mm² to 1 mm².
Product Description
JST LRB-1.0T-M5 Uninsulated Ring Terminal is tailored for applications requiring robust and reliable crimp connections to M5 studs. Manufactured from high-quality brass with a tin plating, it offers excellent conductivity and corrosion resistance suitable for various electrical wiring needs.
The terminal supports wire sizes from 20 AWG to 18 AWG, accommodating wire cross sections ranging from 0.5 mm² to 1 mm². Its grey color coding enables easy identification and conforms to industry requirements for wiring standards.
With an outer ring diameter of 9.5 mm and an inner ring diameter of 5.3 mm, this terminal ensures a secure fit on M5 studs. Measuring 21.75 mm in overall length and 0.6 mm in thickness, it balances durability with compactness for installation in confined spaces.
This ring terminal is ideal for use in industrial electrical assemblies, control panels, automotive wiring, and manufacturing equipment wiring harnesses. Its uninsulated design allows for flexible application in environments where insulation is either unnecessary or applied separately.
Manufactured from brass ensuring durability and long life service. Uninsulated design suitable for a variety of electrical wiring applications. Tin plated contact surface enhances corrosion resistance. Grey color coding for easy identification and standard compliance.
Compact overall length of 21.75 mm for efficient installation in tight spaces. Provides reliable electrical connections in industrial and commercial environments. Compatible with wire cross sections from 0.5 mm² to 1 mm².
Explore the comprehensive range of JST Ring Terminals and other power connectors on EnvMart for your electrical component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is compatible with wire sizes from 20 AWG to 18 AWG, accommodating wire cross sections ranging from 0.5 mm² to 1 mm².
The overall length of this terminal is 21.75 mm, with an outer ring diameter of 9.5 mm and an inner ring diameter of 5.3 mm.
It is manufactured from brass, which ensures good conductivity and corrosion resistance, and features a tin-plated contact surface.
The thickness of this model is 0.6 mm.
This ring terminal is designed for M5 stud size connections.
No, this model features an uninsulated design, making it suitable for applications where insulation is either unnecessary or applied separately.
The terminal is grey in color, which aids in easy identification and compliance with standard wiring requirements.
It is ideal for use in industrial electrical assemblies, control panels, automotive wiring, and manufacturing equipment wiring harnesses.
This ring terminal is manufactured in India.
The tin plating enhances corrosion resistance, which is important for maintaining reliable electrical connections over time.
The grey color coding allows for easy identification and ensures compliance with industry standards for wiring.
This model is part of the LRB series of ring terminals.
