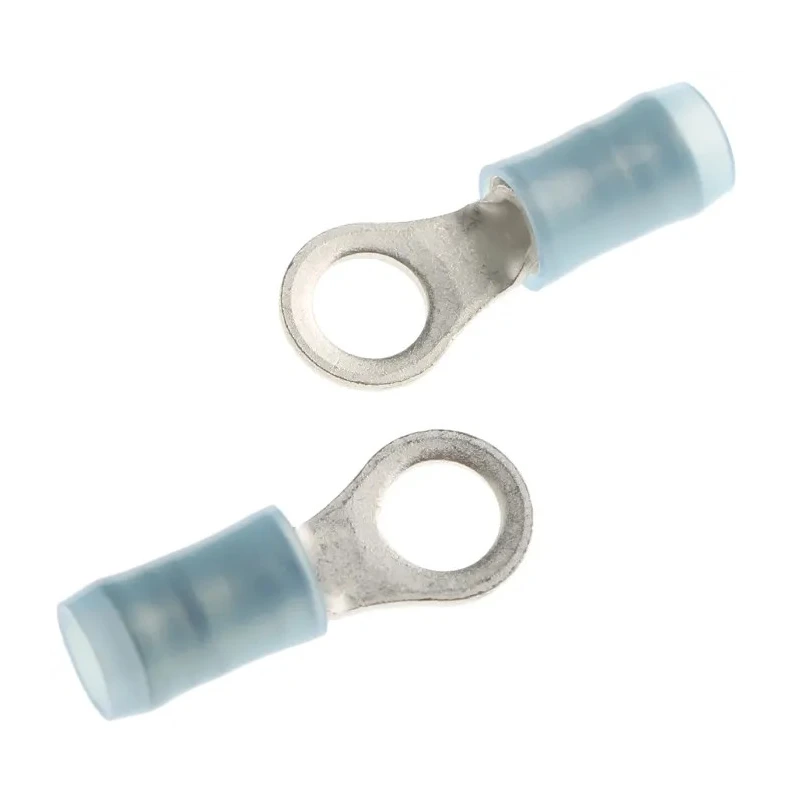

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size, 16 AWG to 14 AWG Wire Size, Blue 51864-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Blue |
| THICKNESS | 0.79mm |
| Model | 51864-2 |
| Insulation | Insulated |
| Overall Length | 21.44mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-0223PBrand: TE ConnectivityManufacturers Part No.: 51864-2 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 7.92mm |
| Inner Ring Diameter | 5mm |
| Stud Size | M5 |
Key Features
- Features a high conductivity copper body for excellent electrical performance.
- Includes a nylon insulation sleeve colored blue for easy wire size identification.
- Wire barrel has serrations to ensure maximum contact and tensile strength after crimping.
- Copper sleeve supports wire insulation and prevents fraying.
- Suitable for harsh circuit environments requiring reliability and durability.
- Offers a funnelled wire entry to facilitate quick and reliable wire insertion during production.
- Compatible with various wiring applications including instruments, lighting, and motors.
- Supports operating temperatures up to 105°C for demanding industrial use.
Product Description
TE Connectivity 51864-2 PIDG Insulated Ring Terminal combines robust construction and precise design for reliable electrical circuit connections. Featuring an M5 stud size and accommodating 16 AWG to 14 AWG wire sizes, this ring terminal ensures a uniform and durable crimp with its high conductivity copper construction and tin plating.
The blue nylon insulation sleeve enables easy identification of wire size and enhances electrical insulation. Serrations inside the wire barrel improve contact integrity and tensile strength, while a copper sleeve reduces wire fraying and provides insulation support. The funnelled wire entry design permits fast wire insertion during high-speed manufacturing processes.
These terminals are engineered for demanding applications such as instruments, power supplies, panel boxes, transportation equipment, motors, aerospace systems, and appliances, offering dependable performance even in harsh environments. They conform to high reliability standards and exceed specific circuit requirements.
Key materials include precision-formed copper body and nylon insulation, with a thickness of 0.79 mm, an overall length of 21.44 mm, and outer/inner ring diameters of 7.92 mm and 5 mm respectively. The terminals operate safely at temperatures up to 105°C, suitable for a wide range of industrial and commercial electrical installations.
High conductivity copper body with tin plating for enhanced electrical connection. Blue nylon insulation sleeve for wire size coding and electrical safety. Serrated wire barrel ensures firm contact and tensile strength. Copper sleeve prevents wire fraying and supports insulation.
Funnelled entry enables fast and reliable wire insertion. Meets rigorous application standards including MIL-T-7928 Type II. Ideal for use in industrial, aerospace, transportation, and electrical control systems.
Choose TE Connectivity PIDG terminals for consistent, high-quality wire connection solutions within your electrical and electronic assemblies. Browse the range of Ring Terminals at EnvMart for comprehensive connector needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model accommodates wire sizes from 16 AWG to 14 AWG.
The stud size for this terminal is M5.
It features a high conductivity copper body with tin plating and a nylon insulation sleeve.
The terminal can operate safely at temperatures up to 105°C.
The overall length of this model is 21.44 mm.
The outer ring diameter is 7.92 mm and the inner ring diameter is 5 mm.
It features a funnelled wire entry design that allows for quick and reliable wire insertion during production.
This terminal is suitable for various applications including instruments, lighting, motors, and aerospace systems.
The high conductivity copper body and serrated wire barrel improve contact integrity and tensile strength after crimping.
The insulation material has a thickness of 0.79 mm.
Yes, it conforms to high reliability standards including MIL-T-7928 Type II.
The country of origin for this terminal is India.
