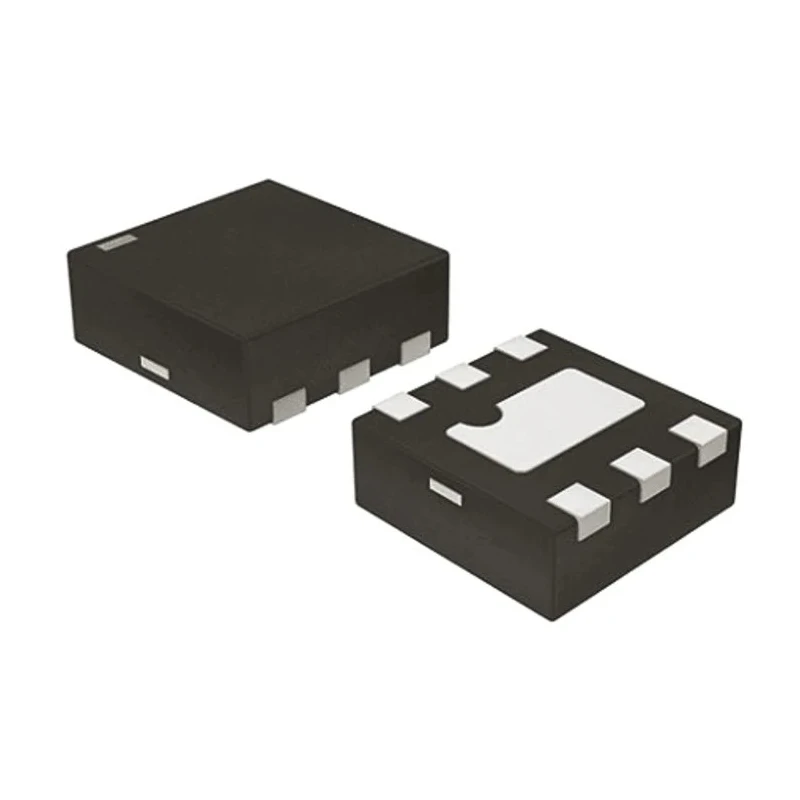

Vishay 5-Element Bi-Directional ESD Protection Diode 200W 6-Pin LLP75 GMF05C-HSF-GS08

Vishay GMF05C-HSF-GS08 5-Element Bi-Directional ESD Protection Diode in a 6-Pin LLP75 surface mount package offers robust 200W transient voltage suppression capacity. Designed to protect sensitive electronics from electrostatic discharge events, this diode features a common anode configuration and bi-directional operation to safeguard circuits against voltage spikes and surges.

Operating reliably from -55°C to 125°C, the device is suitable for demanding industrial, telecommunications, computing, and consumer electronic applications where ESD protection is critical. Its compact 1.65mm x 1.65mm x 0.6mm LLP75 package ensures easy PCB layout integration with minimal space consumption.

The GMF05C-HSF-GS08 model features a 6 pin count and includes five elements per chip, enhancing its ESD protection capabilities in line with IEC 61000 standards. With a minimum breakdown voltage of 6 volts, a maximum reverse stand-off voltage of 5 volts, and a clamping voltage of 12.5 volts, it efficiently clamps transient voltages to safe levels, preventing damage to electronic components.

The device maintains a low maximum reverse leakage current of 1μA, contributing to overall circuit efficiency. It is manufactured in China and constructed to offer durable performance in automotive, industrial, and commercial electronics environments requiring reliable ESD suppression.

Provides bi-directional electrostatic discharge protection with a common anode diode configuration. Peak pulse power dissipation rating of 200 watts for reliable transient voltage suppression. Compact LLP75 surface mount package with 6 pins for easy PCB integration.

Operates over wide temperature range from -55°C to 125°C ensuring durability in harsh environments. Minimum breakdown voltage of 6V and clamping voltage of 12.5V for effective circuit protection. Maximum reverse stand-off voltage of 5V suitable for sensitive electronics protection.

Features low maximum reverse leakage current of 1μA enhancing efficiency and reliability. Comprises 5 elements per chip, optimizing ESD suppression performance. Ideal for use in electronic devices requiring ESD protection compliant with IEC 61000 standards.

This product is essential for engineers and designers aiming to enhance circuit reliability and protect electronic systems from damaging electrostatic discharge events. Browse EnvMart’s extensive selection of semiconductor components for complementary devices and protection solutions.
