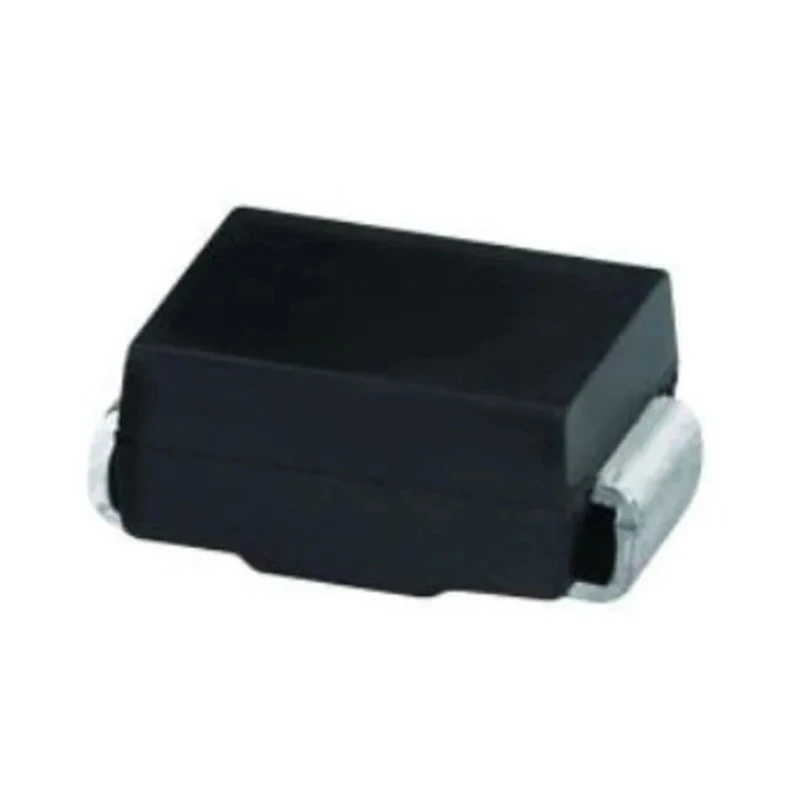

Vishay 200 V 2 A General Purpose 2-Pin DO-214AA Ultrafast Recovery Diode ES2D-E3/5BT

Vishay ES2D-E3/5BT is a general purpose ultrafast recovery diode designed for high frequency rectification and freewheeling applications in switching mode converters and inverters, used widely in consumer electronics, computing, and telecommunication industries.

This diode features a surface mount DO-214AA (SMB) package with a maximum continuous forward current of 2 A and peak reverse repetitive voltage of 200 V. Its ultrafast reverse recovery time of 30 ns and low forward voltage drop of 900 mV enable high efficiency and low switching losses in demanding circuits.

The device has a robust operating temperature range from -55°C to 150°C and is constructed with a glass passivated chip junction for durability. Its matte tin-plated leads are solderable per industry standards (J-STD-002 and JESD 22-B102), and it meets automotive quality standard AEC-Q101. The polarity is clearly marked with a colour band denoting the cathode end for easy identification during assembly.

The diode complies with multiple regulatory and safety standards, including RoHS, WEEE, UL 94 V-0 flammability rating, and relevant JESD standards for mechanical and electrical performance. The moulding compound used for the case meets commercial grade requirements ensuring reliable operation in industrial and commercial environments.

Surface mount DO-214AA package suitable for automated PCB assembly. Maximum continuous forward current: 2 A providing reliable operation in power circuits. Peak reverse repetitive voltage of 200 V suitable for switching power supplies.

Ultrafast recovery time of 30 ns and low forward voltage drop of 900 mV. High surge current capability with 50 A peak non-repetitive forward surge current. Wide operating temperature range from -55°C to 150°C for harsh environments.

Meets automotive standard AEC-Q101 ensuring high quality and reliability. Compliant with RoHS and WEEE environmental directives. Moulding compound meets UL 94 V-0 flammability for safety.

This Vishay diode is ideal for industrial, commercial, and automotive electronics requiring efficient rectification and reliable switching performance. Its advanced ultrafast recovery characteristics are suitable for use in power converters, inverters, and power management circuits.
