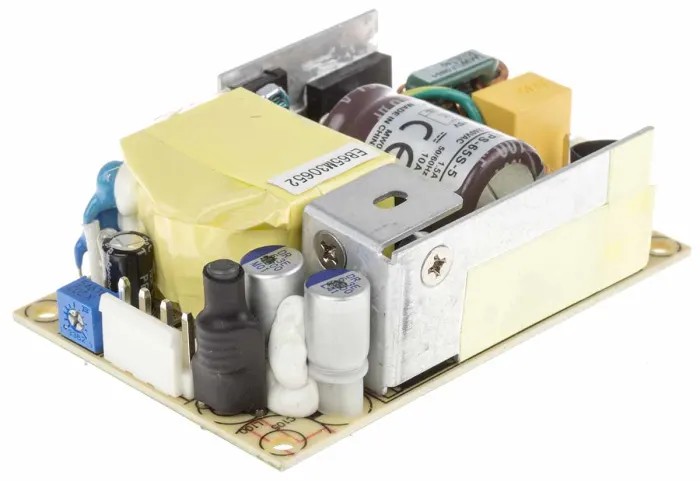

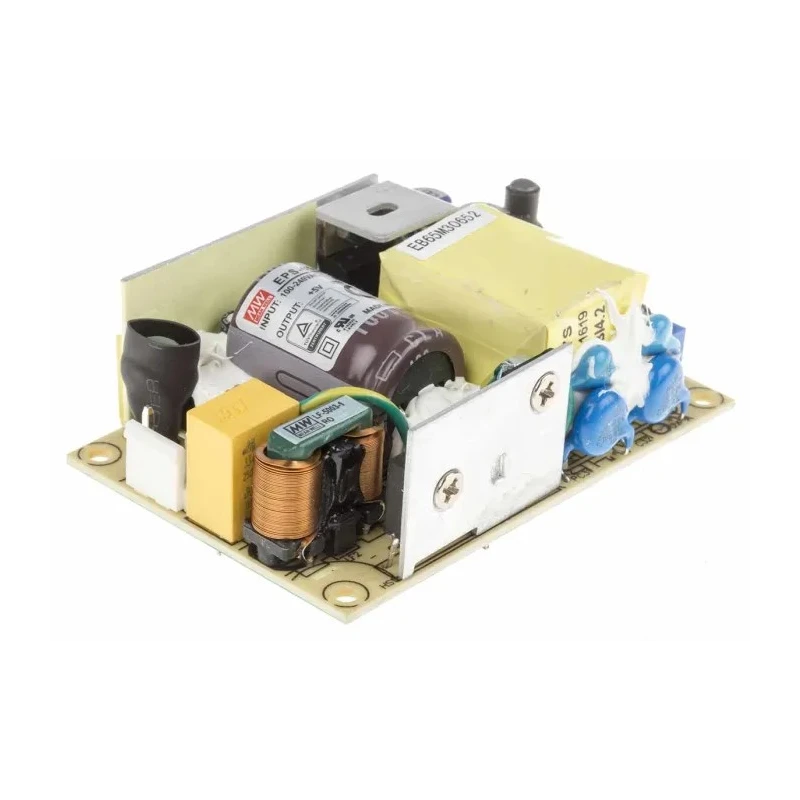

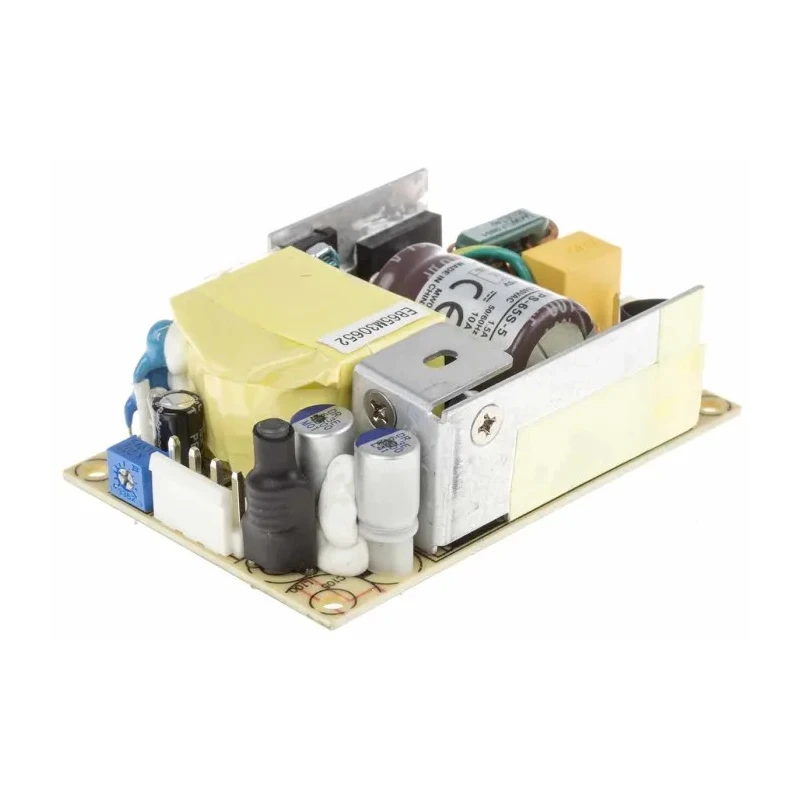

MEAN WELL Switching Power Supply 5V DC, 55W, 11A Output Current, Chassis Mount EPS-65S-5

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL Switching Power Supply 5V DC, 55W, 11A Output Current, Chassis Mount EPS-65S-5

Name: MEAN WELL Switching Power Supply 5V DC, 55W, 11A Output Current, Chassis Mount EPS-65S-5
Brand: MEAN WELL
SKU: 138410



Category Switching Power Supplies Brand MEAN WELL Condition New

Specifications

Country of Origin	India
Brand	MEAN WELL
Power	55W
Efficiency	82%
Length	101.6mm
Model	EPS-65S-5
Depth	29mm
Gross Weight	150g
Width	29mm
Mount Type	Chassis
Series	EPS-65S
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-30°C
Number of outputs	1
Maximum Input Voltage	370, 264V dc
Standards/Approvals	EAC TP TC 004, UL 6681, IEC 6681, TUV BS ENEN 6681
Maximum Output Voltage	5V dc
SMPS Output Current	11A
Minimum Input Voltage	90V ac

Key Features

Compact miniature size of 101.6mm length by 29mm width and depth suitable for 1U applications.
Accepts wide input voltage range from 90V AC minimum to 264V AC maximum to 370V DC maximum.
Efficient operation with 82% efficiency and EMI Class B compliance.
Provides protection against short circuit, overload, and overvoltage ensuring reliability and safety.
Operates within wide temperature range of -30°C to 70°C for industrial environments.
Designed for free air convection cooling without need for fan.
LED indication for power status for easy monitoring.
Suitable for industrial automation, mechanical and electrical equipment, electronic instruments, and industrial control systems.

Product Description

MEAN WELL EPS-65S-5 is a high-performance switching power supply offering a steady 5V DC output at a power rating of 55W and a maximum output current of 11A. The unit is designed as a chassis mount type, with a compact form factor measuring 101.6mm in length and 29mm in both width and depth, making it ideal for space-constrained 1U applications.

This power supply accepts a wide input voltage range, including an AC minimum of 90V up to 264V AC maximum, and can handle DC input up to 370V. It delivers reliable and efficient performance with an efficiency rating of 82% and meets EMI Class B standards, suitable for demanding industrial and electronic environments.

Protection features include short circuit, overload, and overvoltage safeguards, ensuring operational safety in complex industrial applications. The device is cooled through free air convection, eliminating the need for additional cooling fans, and has an LED indicator to display power status for visual monitoring and troubleshooting.

The EPS-65S-5 operates reliably in a broad temperature range from -30°C to 70°C, making it suitable for use in harsh industrial conditions. Its typical applications span industrial automation machinery, mechanical and electrical equipment, industrial control systems, and electronic instruments and apparatus.

Compact size designed for 1U rack mounting applications. Wide input voltage range supports global industrial standards. High efficiency reduces energy consumption and heat dissipation. Robust protections ensure safety and operational reliability.

Maintenance-free cooling increases system lifespan. Visual LED for power status indication. Suitable for industrial automation and control machinery. Conforms to industry standards including EAC TP TC 004, UL 6681, IEC 6681, TUV, and EN standards.

The MEAN WELL EPS-65S-5 switching power supply is a trusted solution for robust and compact power conversion in a variety of industrial and commercial electronic equipment. Explore EnvMart to find more power supplies from MEAN WELL and other leading brands for your application needs.
