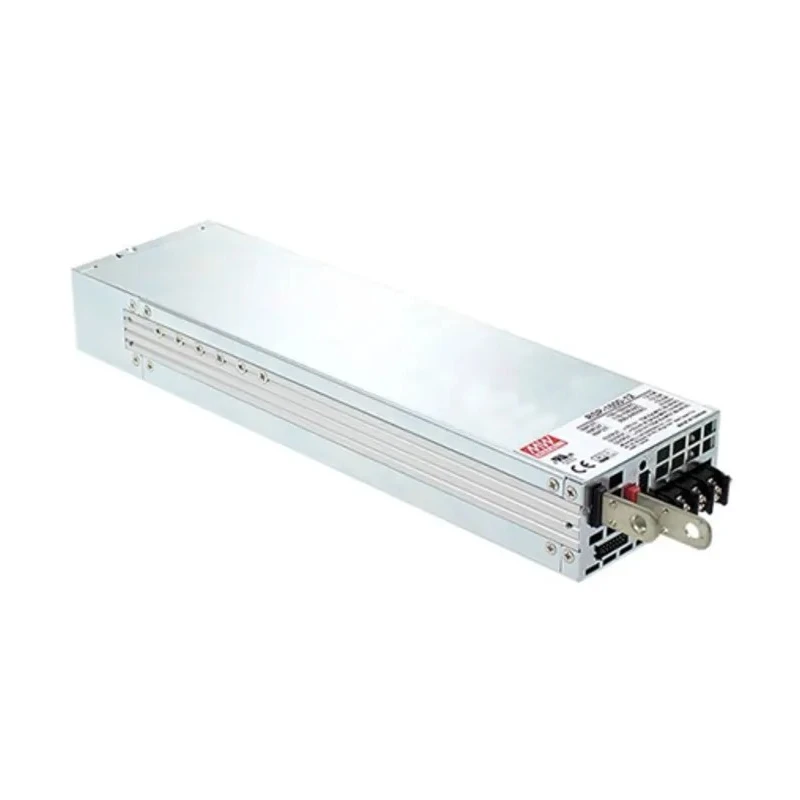

Mean Well Switching Power Supply 12V DC, 1.5 kW, 125A, Surface Mount, RSP-1600-12
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Power | 1.5kW |
| Efficiency | 89% |
| Length | 300mm |
| Model | RSP-1600-12 |
| Depth | 41mm |
| Gross Weight | 1.8kg |
| Width | 41mm |
| Mount Type | Surface |
| Series | RSP-1600 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -30°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Maximum Output Voltage | 12V dc |
| SMPS Output Current | 125A |
| Minimum Input Voltage | 90V ac |
| Active Current Sharing | Up to 9600W |
Key Features
- Delivers up to 125A output current at 12V DC, suitable for high-power requirements.
- Rated at 1.5 kW power output for robust operation in automation and factory control systems.
- Wide universal input supply range, accepting 90 to 264V AC and 120 to 370V DC.
- Features built-in active power factor correction (PFC) for improved efficiency up to 89%.
- Operating temperature range from -30°C to 70°C ensures reliable performance in harsh environments.
- Surface mount design for easy and secure installation.
- Forced air cooling with built-in DC fan provides thermal management for continuous operation.
- Output voltage and constant current levels are programmable for advanced control.
Product Description
Mean Well RSP-1600-12 is a high-performance switching power supply delivering a single 12V DC output with up to 125A current and a substantial 1.5 kW power capacity. Designed for integration into demanding industrial systems, this SMPS features a universal input range from 90 - 264V AC and 120 - 370V DC, providing flexibility for global applications.
The power supply incorporates active PFC (power factor correction) for enhanced efficiency and compliance with energy standards, achieving up to 89% conversion efficiency. A forced air cooling system with a built-in DC fan enables consistent thermal management, supporting operation within a temperature range of -30°C to 70°C. These capabilities allow the RSP-1600-12 to function reliably within harsh industrial environments.
The surface mount configuration affords straightforward installation in control panels, automation racks, and measurement instruments. Programmable output voltage and constant current levels offer advanced system integration options, while active current sharing (up to 9600W) makes it suitable for parallel redundant systems and constant current sources.
Advanced monitoring and control features include remote ON/OFF, remote sense, auxiliary power, DC OK signal, OTP alarm signal, and optional PMBus protocol for digital management. The robust design is compliant with international safety approvals including AS/NZS62368.1, BSMI, CSA, EAC, IS 13252, IEC 60950-1, TUV, CCC, and UL 62368-1, ensuring global acceptance for manufacturing and automation projects.
This model is commonly deployed in factory automation, test and measurement systems, laser machinery, digital broadcasting equipment, and redundant power configurations that require stable, reliable, and programmable power delivery.
Industrial and laboratory environments benefit from the RSP-1600-12's combination of high power density, efficient performance, and comprehensive control features. Users can confidently utilize this SMPS for mission-critical tasks such as powering large instruments, maintaining continuous operations, and safeguarding sensitive electronic equipment.
Explore more Mean Well power products and high-efficiency SMPS solutions in the Switching Power Supplies category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a power capacity of 1.5 kW, making it suitable for high-power requirements.
It features a surface mount design for easy and secure installation.
The gross weight of the unit is 1.8 kg.
Yes, it includes advanced monitoring features such as remote ON/OFF and remote sense.
It complies with several international safety approvals including AS/NZS62368.1, CSA, and UL 62368-1.
Yes, the output voltage and constant current levels are programmable for advanced control.
