MEAN WELL IEC 264V AC Input 9V DC Output 4A AC/DC Adapter GSM36B09-P1J

Free Delivery in India | Lowest Global Shipping Charges

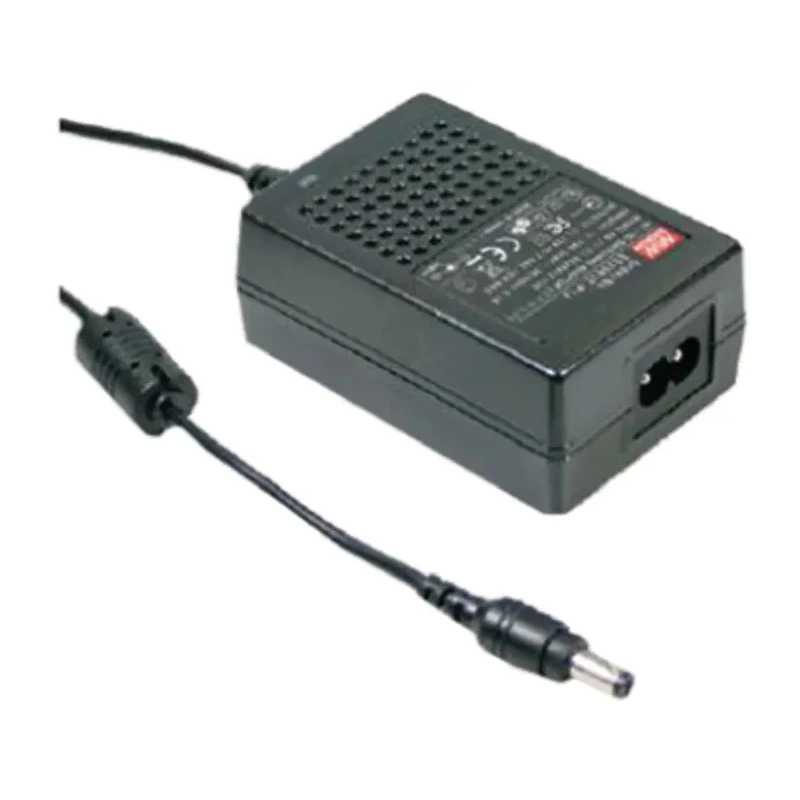

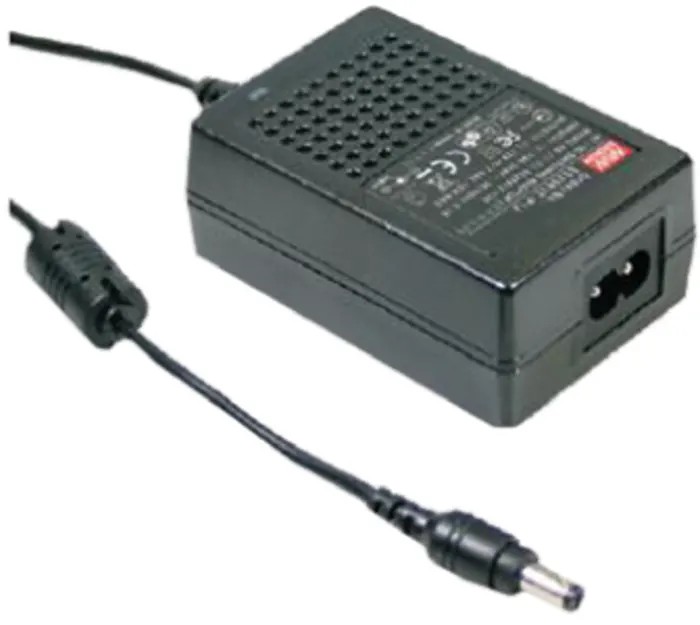

MEAN WELL IEC 264V AC Input 9V DC Output 4A AC/DC Adapter GSM36B09-P1J

Name: MEAN WELL IEC 264V AC Input 9V DC Output 4A AC/DC Adapter GSM36B09-P1J
Brand: MEAN WELL
SKU: 106246
Price: 20.22 USD
Availability: InStock



Category AC/DC Adapters Brand MEAN WELL Condition New

Specifications

Country of Origin	India
Brand	MEAN WELL
Model	GSM36B09-P1J
Cable Length	1200mm
Overall Length	79mm
Series	GSM36
Overall Width	54mm
Maximum Operating Temperature	60°C
Plug Type	IEC
Maximum Input Voltage	264V ac
Protections	Short circuit / Overload / Over voltage
Maximum Output Current	4A
Standards/Approvals	UL 60950-1, CE, IEC 60950-1
Minimum Input Voltage	100V ac
Overall Depth	33mm
Minimum Output Voltage	9V dc
Input Connector Type	IEC 320-C8
MEAN WELL AC/DC AdapterBrand	Mean Well

Key Features

Universal AC input voltage range from 100V to 264V AC.
Maximum output current of 4 amperes with 9V DC output voltage.
Enclosed in a UL 94V-0 rated plastic case for safety and durability.
Low leakage current less than 50 microamperes suitable for patient contact medical equipment.
Protection against short circuit, overload, and over voltage conditions.
Energy-efficient design compliant with ErP step 2 and EISA 2007 standards.
Operating temperature up to 60°C ensuring reliable performance.
Equipped with LED indicator for power status monitoring.

Product Description

MEAN WELL GSM36B09-P1J AC/DC Adapter provides a reliable power solution designed for medical and industrial applications requiring safe low leakage current and energy efficiency. It features a wide input voltage range from 100V to 264V AC with a maximum output current of 4 amperes at 9V DC output. This adapter is fully enclosed with a plastic case rated UL 94V-0 ensuring robust protection while meeting international medical safety standards such as ANSI/AAMI ES60601-1 and TUV EN60601-1.

The adapter's design includes low no-load power consumption below 0.1W and leakage current under 50 microamperes, making it suitable for patient contact equipment and home healthcare devices. It incorporates multiple protections including short circuit, overload, and over voltage safeguards for enhanced operational safety. The power supply complies with energy-saving regulations including ErP step 2 and EISA 2007 for reduced environmental impact.

Key features include a universal 2-pole IEC 320-C8 AC inlet connector for easy installation, LED power indicator, and operating temperature capability up to 60°C. The 1200mm cable length provides flexibility in deployment. With a compact overall dimension of 79mm length, 54mm width, and 33mm depth, it is designed to integrate well in various medical and electronic equipment setups.

Universal AC input with full range support from 100V to 264V AC. Low leakage current and low no-load power consumption for medical safety compliance. Robust plastic enclosure meeting UL 94V-0 fire safety standards. Comprehensive protection mechanisms: short circuit, overload, and over voltage.

Compliance with ANSI/AAMI ES60601-1, TUV EN60601-1, and international certifications including UL, CB, CE. Energy efficient meeting ErP step 2 and EISA 2007 legislation requirements.

This MEAN WELL AC/DC adapter is ideally suited for industrial applications, laboratory instruments, and medical devices where safety, efficiency, and compliance are paramount. Explore more power supplies and transformers in the EnvMart collection for reliable industrial and commercial power solutions.
