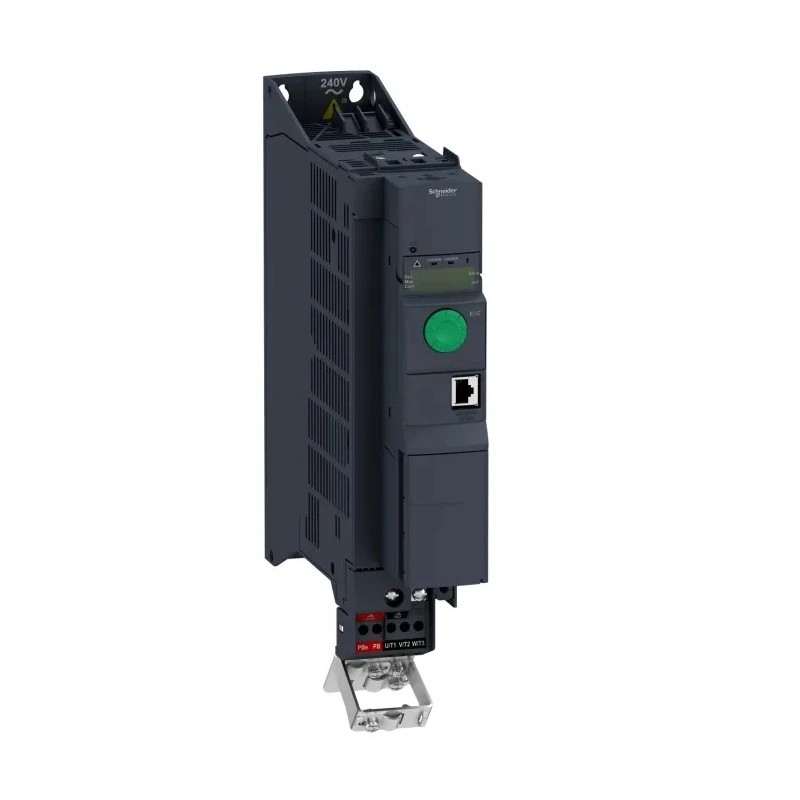

RS PRO Variable Speed Drive 1.5 kW 1 Phase DIN Rail Mount ATV320U15M2B
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | ATV320U15M2B |
| IP Rating | IP20 |
| Drive Type | Variable Frequency |
| Mount Type | DIN Rail |
| Overall Length | 60mm |
| Series | Altivar |
| Overall Width | 245mm |
| Power Rating | 1.5kW |
| Maximum Operating Temperature | 50°C |
| Output Frequency | 0.1, 599Hz |
| Minimum Operating Temperature | -10°C |
| Interfaces | EtherNet/IP - Modbus TCP, Profinet EtherCAT, Profibus, CANopen and DeviceNet |
| Number of Phases | 1 |
| Maximum Output Current | 8A |
| Overall Depth | 325mm |
| Minimum Supply Voltage | 230V ac |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Asynchronous Motor, Synchronous |
Key Features
- Designed for controlling asynchronous and synchronous motors efficiently.
- Operating voltage range from 200 to 240 V AC with IP20 protection rating.
- Compact size for easy installation with overall dimensions 245 mm width, 60 mm length, and 325 mm depth.
- Supports output frequency from 0.1 Hz up to 599 Hz enabling extended motor speed control.
- Includes advanced safety functions configurable via SoMove software.
- Compatible with multiple fieldbus protocols including EtherNet/IP, Profinet, and Profibus.
- Robust design suited for harsh environments with operating temperatures from -10°C up to 50°C.
- CE, UL, CSA, NOM, EAC, and RCM certified meeting international standards.
Product Description
Schneider Electric ATV320U15M2B variable speed drive delivers 1.5 kW power with single-phase input, suited for precise control of asynchronous and synchronous motors. It features a DIN rail mount design providing a compact form factor for easy installation in automation cabinets. The drive supports a supply voltage range of 200 to 240 V AC and has a maximum output current of 8 A.
With an IP20 rating, it offers protection suitable for industrial environments and operates reliably within temperature ranges from -10°C to 50°C. The device covers a wide output frequency from 0.1 Hz to 599 Hz allowing extended motor speed control and high dynamic performance employing flux vector control without sensor feedback.
Robust construction with IEC 60721-3-3 class 3C3 coated printed circuit boards enhances durability in harsh conditions. The drive incorporates five safety functions configurable through SoMove software that help meet machinery safety standards.
Communication interfaces include EtherNet/IP, Modbus TCP, Profinet, EtherCAT, Profibus, CANopen, and DeviceNet, enabling integration with various automation systems. This Altivar 320 series drive complies with IEC/EN 61800-5-1 and IEC/EN 61800-3 standards and holds certifications such as CE, UL, CSA, NOM, EAC, and RCM.

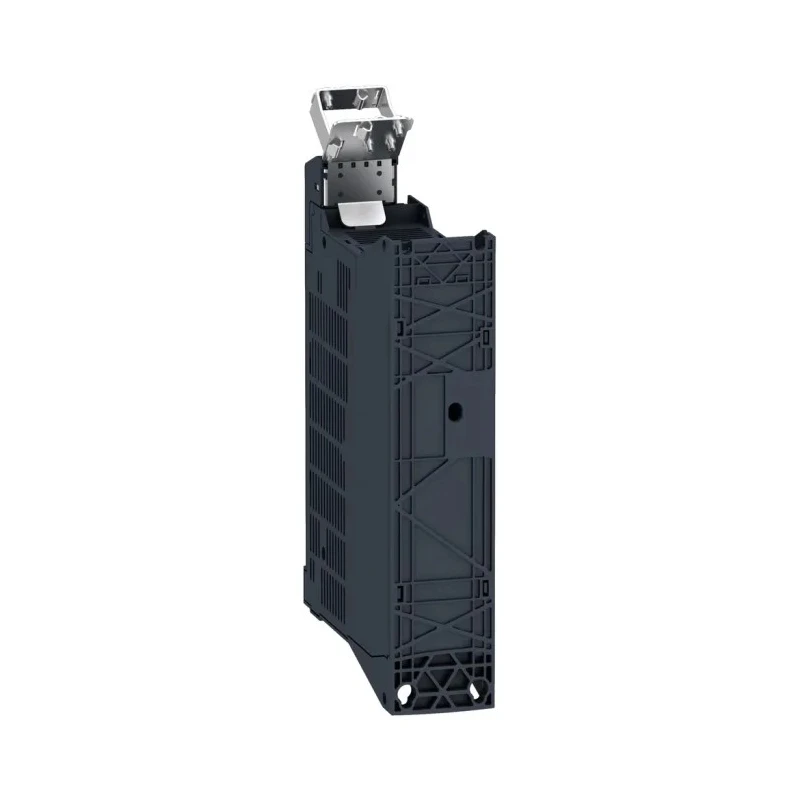

Mounting is intended in a vertical position with four fixing holes for secure attachment.
Additional mounting accessories and options like braking resistors, line chokes, and EMC filters are available depending on drive rating. This product is new and made in India supporting industrial and automation applications requiring variable frequency drives.
Designed for asynchronous and synchronous motor control with 1.5 kW power rating. Compact DIN rail mounting facilitating easy panel installation. Wide output frequency range from 0.1 to 599 Hz for precise speed control. Advanced safety features configurable via dedicated software.
Multiple communication protocols for flexible integration. Robust construction with high environmental resistance standards. Certified for compliance with international safety and EMC standards. Energy-efficient product contributing to sustainability efforts.
