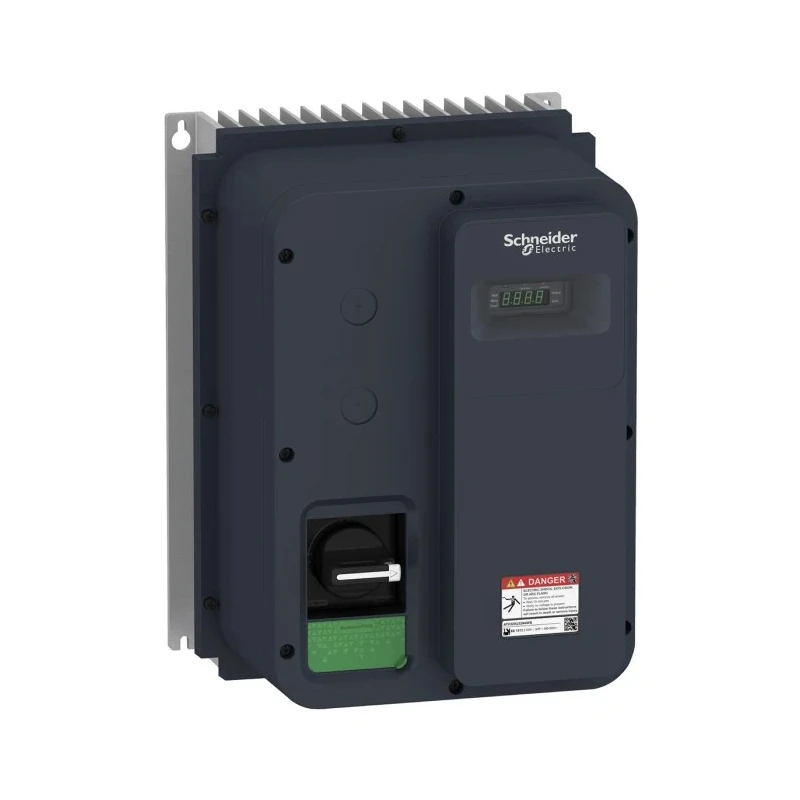

Schneider Electric Variable Speed Drive 2.2 kW 3 Phase Altivar Series ATV320U22N4WS
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Model | ATV320U22N4WS |
| IP Rating | IP65 |
| Drive Type | Variable Speed |
| Mount Type | Wall |
| Overall Length | 250mm |
| Series | Altivar |
| Overall Width | 235mm |
| Power Rating | 2.2kW |
| Maximum Operating Temperature | +60°C |
| Output Frequency | 0.1, 599Hz |
| Minimum Operating Temperature | -10°C |
| Interfaces | EtherNet/IP - Modbus TCP, Profinet EtherCAT, Profibus, CANopen and DeviceNet |
| Number of Phases | 3 |
| Maximum Output Current | 5.5A |
| Maximum Supply Voltage | 500V ac |
| Overall Depth | 340mm |
| Minimum Supply Voltage | 380V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Synchronous, AC Motor, Asynchronous Motor |
Key Features
- The drive supports a voltage range of 380V to 500V ac and maximum output current of 5.5 A.
- Equipped with IP65 rating ensuring protection against dust and water, ideal for harsh environments.
- Wall mount type with compact dimensions of 250mm length, 235mm width, and 340mm depth.
- Features embedded EMC C2 filter and safety functions configurable via SoMove software.
- Enables advanced connectivity supporting Modbus, CANopen, EtherNet/IP, Profinet, EtherCAT, Profibus, and DeviceNet protocols.
- Operational temperature ranges from -10°C to +60°C for versatile industrial applications.
- Designed for machine control in conveyors, carton packers, gantry cranes, woodworking, metal processing, and Food & Beverage sectors.
- Complies with international standards including CSA, UL, EN/IEC, NOM, GOST, and REACH certifications.
Product Description
Schneider Electric ATV320U22N4WS Variable Speed Drive is part of the Altivar Machine ATV320 series, tailored for Original Equipment Manufacturers requiring reliable motor control solutions.
This 2.2 kW, 3 phase drive operates between 380V to 500V ac supply voltage and delivers a maximum output current of 5.5 A. It is compatible with both synchronous and asynchronous AC motors, providing precise variable speed control.
The drive offers an IP65 protection rating, making it resistant to dust and washable for environments with chemical pollution or dust. It includes an embedded EMC C2 filter and is supplied without a fan for silent and maintenance-efficient operation.
Communication and integration are enhanced with built-in support for Modbus and CANopen protocols accessible through an RJ45 connector, alongside compatibility with EtherNet/IP, Profinet, EtherCAT, Profibus, and DeviceNet automation architectures.
Operating temperature spans from -10°C to +60°C, suitable for industrial use in conveyors, gantry cranes, packaging machines, woodworking, metal processing, and Food & Beverage industries. The drive software includes five configurable safety functions to comply with machine safety requirements, manageable via SoMove software.
The ATV320 series enables easy installation, either standalone or side-by-side in multi-drive configurations, and supports EcoStruxure Machine software for comprehensive machine development and commissioning within a unified environment that integrates logic, motion control, HMI, and network automation.
The drive supports voltage from 380V to 500V ac with a maximum output current of 5.5 A. It is compliant with CSA, C-Tick, EN/IEC 61800-3 and 5-1, GOST, IEC 13849-1, IEC 60721-3, IEC 61508, NOM, REACH, and UL 61800-5-1 standards.
Its IP65 rating allows use in harsh environments involving dust and chemical exposure. Compatible with synchronous and asynchronous AC motors, offering accurate speed regulation. Includes built-in communication protocols facilitating advanced automation integration.
This variable speed drive ensures operational efficiency and sustainability by saving energy and supporting diverse industrial automation needs. It is manufactured in Indonesia and designed for long-term reliability.
Explore more Schneider Electric drives and automation products in the EnvMart catalog to fulfill varied industrial control requirements.
Explore more products in our Automation & Control Gear category.
