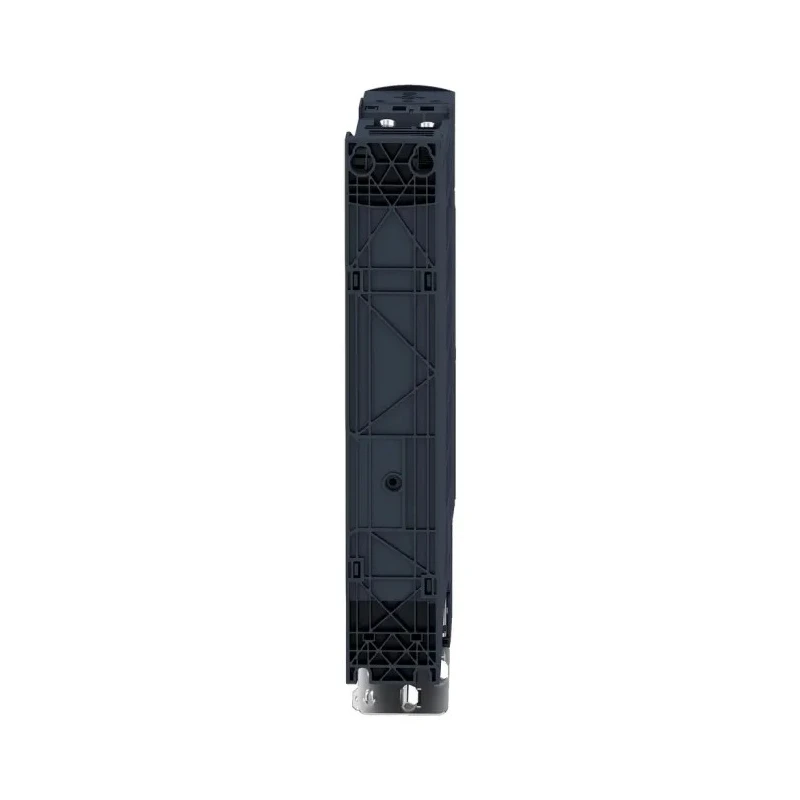

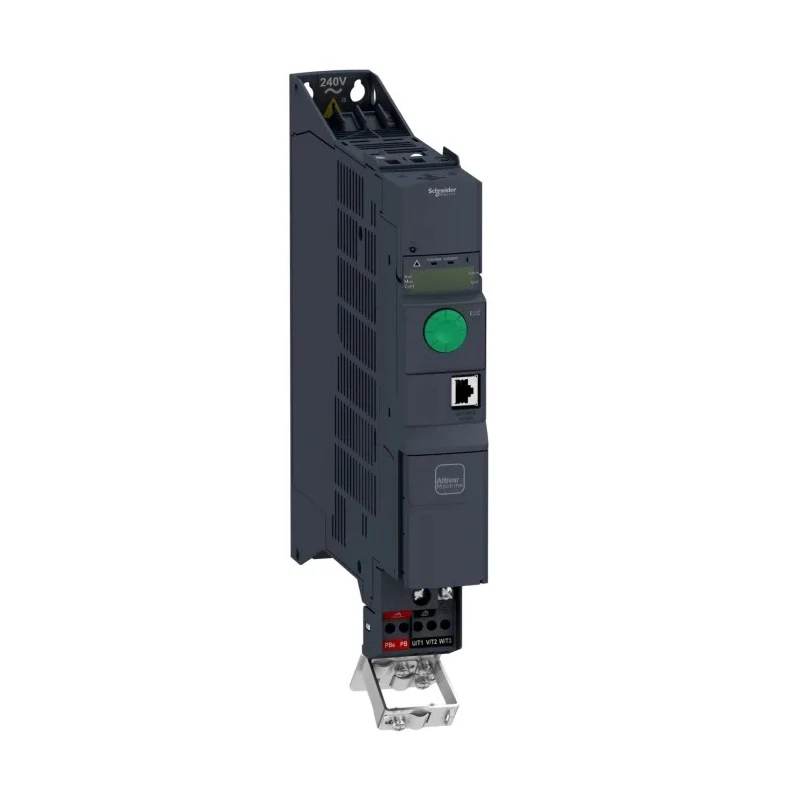

Schneider Electric Variable Speed Drive, 750 W, 3 Phase, Altivar Series, 400V AC, 2.3 A ATV320U07N4B
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Model | ATV320U07N4B |
| IP Rating | IP20 |
| Drive Type | Variable Frequency |
| Mount Type | DIN Rail |
| Overall Length | 45mm |
| Series | Altivar |
| Overall Width | 245mm |
| Power Rating | 750W |
| Maximum Operating Temperature | 50°C |
| Output Frequency | 0.1, 599Hz |
| Minimum Operating Temperature | -10°C |
| Interfaces | EtherNet/IP - Modbus TCP, Profinet EtherCAT, Profibus, CANopen and DeviceNet |
| Number of Phases | 3 |
| Maximum Output Current | 2.3A |
| Overall Depth | 325mm |
| Minimum Supply Voltage | 400V ac |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Asynchronous Motor, Synchronous |
Key Features
- Compact book form factor for easy integration in automation cabinets.
- Operates at rated voltage from 380V to 500V AC with a maximum output current of 2.3 A.
- Robust design with coated PCBs allows operation up to 60°C without extra cooling.
- Supports asynchronous and synchronous motor control with high dynamic performance.
- Includes five configurable safety functions for compliance with machine safety standards.
- Conforms to multiple international certifications including CE, UL, CSA, and EAC.
- Equipped for multiple industrial applications including packaging, material handling and textile machinery.
- Mounts vertically on DIN rail with four fixing holes for secure installation.
Product Description
Schneider Electric ATV320U07N4B is a high-quality variable speed drive designed to efficiently control 3-phase asynchronous and synchronous motors. The 750 W power rating with a voltage range of 380V to 500V AC and maximum output current of 2.3 A make it ideal for precise motor speed regulation in industrial environments.
With coated printed circuit boards compliant with IEC 60721-3-3 class 3C3, this drive withstands harsh environmental conditions and supports ambient temperatures up to 60°C without additional cooling. It provides advanced torque and speed control with flux vector control technology, delivering static speed accuracy and energy savings particularly for open-loop synchronous motors.
The drive software includes five safety functions configurable via SoMove software, enabling compliance with modern machine safety standards with or without external Preventa safety modules. It meets international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 for immunity and EMC emissions. Certifications include CE, UL, CSA, NOM, EAC, and RCM.
Mounting is designed for vertical installation on DIN rails with four fixing holes, supporting flexibility in industrial panel designs. Additional accessories such as braking resistors, line chokes, and EMC filters are available depending on drive rating to further enhance performance.
Compact design for efficient cabinet integration. Robust operation up to 60°C without cooling. Advanced torque and speed control with flux vector technology. Five configurable safety functions for machine compliance. Wide application scope including packaging and mechanical actuators.
Conforms to international safety and EMC standards. Multiple certifications for global industrial use. Flexible mounting on DIN rail with accessory options.
This Schneider Electric Altivar variable speed drive is an ideal solution for industrial automation, electrical drive systems, manufacturing machinery, and HVAC motor control needs. For more quality automation components, explore EnvMart’s comprehensive Automation & Control Gear category.
