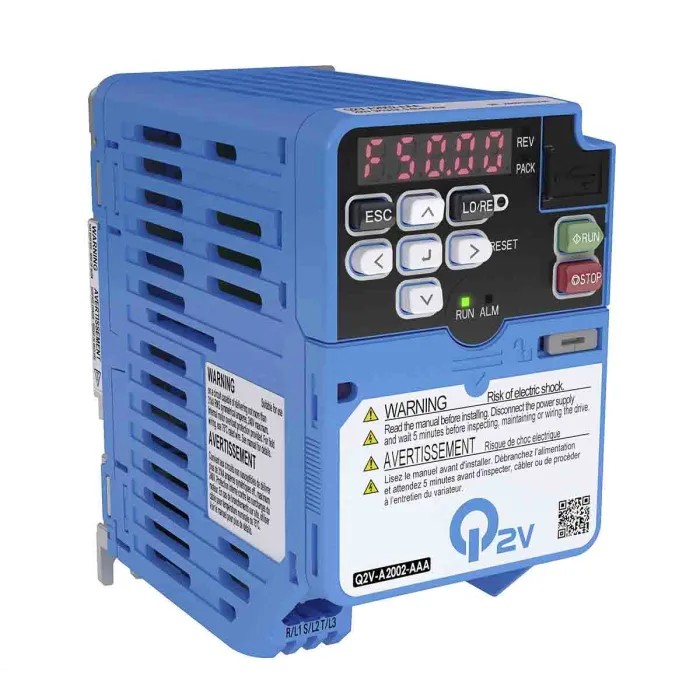

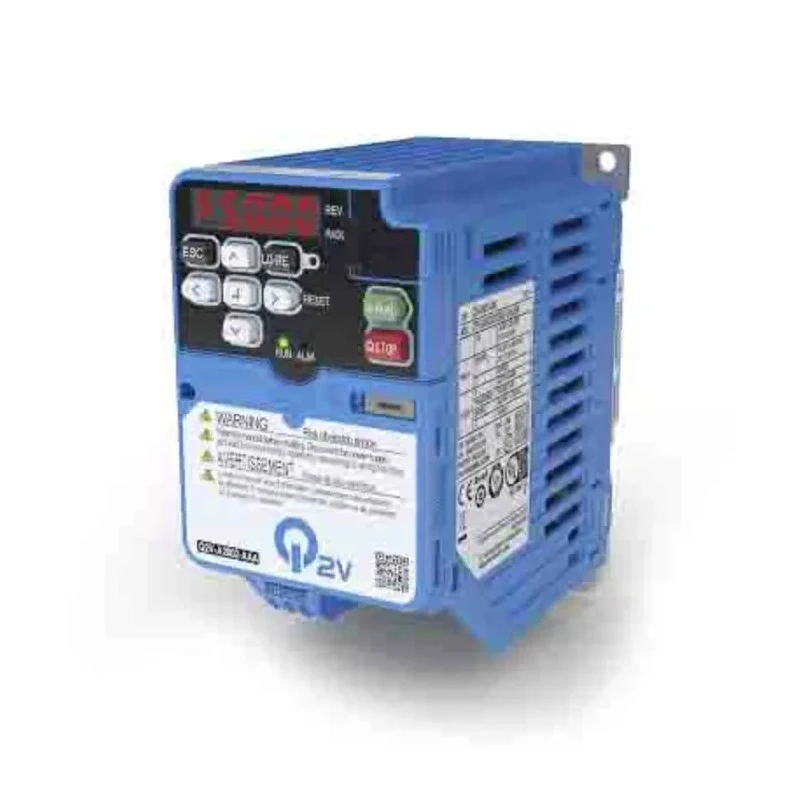

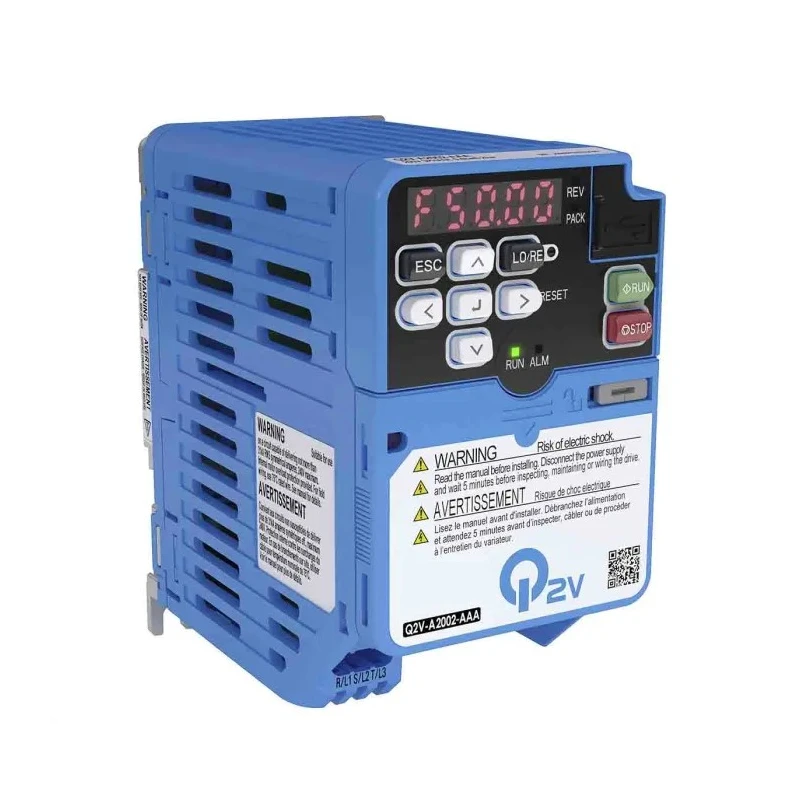

Omron Inverter Drive 750 W 1 Phase Vector Control 240V IP20 Wall Mount Q2V-AB004-AAA
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Omron |
| Model | Q2V-AB004-AAA |
| IP Rating | IP20 |
| Drive Type | Vector Control |
| Mount Type | Wall |
| Overall Length | 68mm |
| Series | Q2V |
| Overall Width | 158mm |
| Power Rating | 750W |
| Maximum Operating Temperature | 50°C |
| Output Frequency | 590Hz |
| Minimum Operating Temperature | -10°C |
| Number of Phases | 1 |
| Maximum Output Current | 3.5A |
| Standards/Approvals | UL, CE, cUL, EAC, REACH, RoHS |
| Maximum Supply Voltage | 240V |
| Overall Depth | 128mm |
| Minimum Supply Voltage | 200V ac |
| Compatible Motor Type | Induction Motor, Permanent Magnet Motor, Synchronous Reluctance Motor |
| Q2dev | Graphic development tool allows you to create your program |
Key Features
- Operating power rating of 750 W for reliable drive performance.
- Designed for single-phase 200 - 240 V AC input with a maximum 3.5 A output current.
- Supports vector control for multiple motor types including induction and PM motors.
- Wall-mount enclosure, compact 68 mm length, 158 mm width, and 128 mm depth for easy installation.
- Rated IP20 for basic ingress protection suitable for cabinet mounting.
- Output frequency range up to 590 Hz for rapid speed/torque control.
- Built-in EMC filter, safety STO, and braking transistor for advanced hardware protection.
- Simple screwless terminals reduce wiring installation time and enhance safety.
Product Description
Omron Q2V-AB004-AAA inverter drive is engineered for demanding industrial and commercial motor control systems. Offering a 750 W power rating, this drive is suitable for single-phase applications with an input voltage range from 200 V to 240 V AC. Utilizing advanced vector control, it reliably controls induction, permanent magnet, and synchronous reluctance motors for precise performance and energy efficiency.
This model is part of the Omron Q2V Series, recognized for robust construction and flexible motor control. Its compact dimensions (68 mm length, 158 mm width, and 128 mm depth) and wall-mount configuration allow for simplified cabinet design and side-by-side installation without derating. The integrated IP20 enclosure provides basic protection for control cabinet environments.
Key hardware features include a built-in EMC filter, safety STO, and braking transistor. These are complemented by screwless terminals, significantly reducing wiring installation time and improving safety. Intelligent application wizards streamline initial setup, while mobile app connectivity and optional graphical LCD display with SD card enable fast monitoring and trace-recording. The drive supports V/f and sensorless vector control methods for maximum versatility in speed and torque regulation.
Rated for a maximum output current of 3.5 A and an output frequency up to 590 Hz, the unit delivers rapid response for dynamic load changes. The Q2dev graphic development tool enables customized functions and programming, while coated PCB boards protect electronics from dust and humidity for maintenance-free operation up to 10 years. Operating temperature capability ranges from -10°C to 50°C, ensuring reliability in diverse environments.
Operating power rating of 750 W for reliable drive performance. Designed for single-phase 200 - 240 V AC input with a maximum 3.5 A output current. Supports vector control for multiple motor types including induction and PM motors.
Wall-mount enclosure, compact 68 mm length, 158 mm width, and 128 mm depth for easy installation. Rated IP20 for basic ingress protection suitable for cabinet mounting. Output frequency range up to 590 Hz for rapid speed/torque control.
Built-in EMC filter, safety STO, and braking transistor for advanced hardware protection. Simple screwless terminals reduce wiring installation time and enhance safety. Application wizard, mobile app setup, and optional LCD display for fast commissioning and monitoring.
Typical use cases include industrial automation, manufacturing lines, HVAC systems, water treatment plants, and commercial facilities requiring precise motor speed and torque regulation.
Discover Omron Q2V series and explore more industrial Inverter Drive solutions in the Power Supply & Distribution category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a power rating of 750 W, suitable for reliable drive performance in various applications.
This inverter drive is designed for single-phase input voltages ranging from 200 V to 240 V AC.
It supports vector control for induction motors, permanent magnet motors, and synchronous reluctance motors.
The maximum output current for this model is 3.5 A.
The output frequency range is up to 590 Hz, allowing for rapid speed and torque control.
It has compact dimensions of 68 mm in length, 158 mm in width, and 128 mm in depth.
The unit is rated IP20, providing basic ingress protection suitable for cabinet mounting.
It operates effectively within a temperature range of -10°C to 50°C.
It includes a built-in EMC filter, safety STO, and a braking transistor for advanced hardware protection.
The drive features screwless terminals, which reduce wiring installation time and enhance safety during setup.
The Q2dev graphic development tool allows users to create custom programs for the drive's operation.
It complies with several standards including UL, CE, cUL, EAC, REACH, and RoHS.
