TDK-Lambda AC/DC Power Adapter DC Jack 10 Pin 300 W 48V DC Output, 6.25 A DTM-300PW-480-D1

Free Delivery in India | Lowest Global Shipping Charges

TDK-Lambda AC/DC Power Adapter DC Jack 10 Pin 300 W 48V DC Output, 6.25 A DTM-300PW-480-D1

Name: TDK-Lambda AC/DC Power Adapter DC Jack 10 Pin 300 W 48V DC Output, 6.25 A DTM-300PW-480-D1
Brand: TDK-Lambda
SKU: 203244



Category AC/DC Adapters Brand TDK-Lambda Condition New

Specifications

Country of Origin	India
Brand	TDK-Lambda
Power	300W
Efficiency	88%
Length	222mm
Model	DTM-300PW-480-D1
Depth	45mm
Cable Length	800mm
Width	112mm
Series	DTM300-D
Maximum Operating Temperature	60°C
Sub Type	Power Adapter
Load Regulation	±5 %
Minimum Operating Temperature	-30°C
Plug Type	10 Pin
Number of outputs	1
Maximum Input Voltage	264V ac
Output Voltage	48V dc
Minimum Input Voltage	90V ac
Output Connector Type	DC Jack
Input Connector Type	IEC 320-C14
Adapter Current	6.25A
Energy Efficiency Level	VI

Key Features

Medical and ITE approved external power supply suitable for demanding equipment.
Convection-cooled design housed in a rugged, vent-free enclosure.
Wide input voltage range from 90 V to 264 V AC ensuring versatile use.
High efficiency of 88% meeting DoE Level VI energy efficiency standards.
Over-voltage and overcurrent protection for device safety.
Operating temperature range from -30°C to 60°C with linear derating above 40°C.
Standard IEC 320-C14 input connector with 800 mm cable length.
Meets CE, EN 60601-1, IEC 60601-1, and UL 60601-1 safety standards.

Product Description

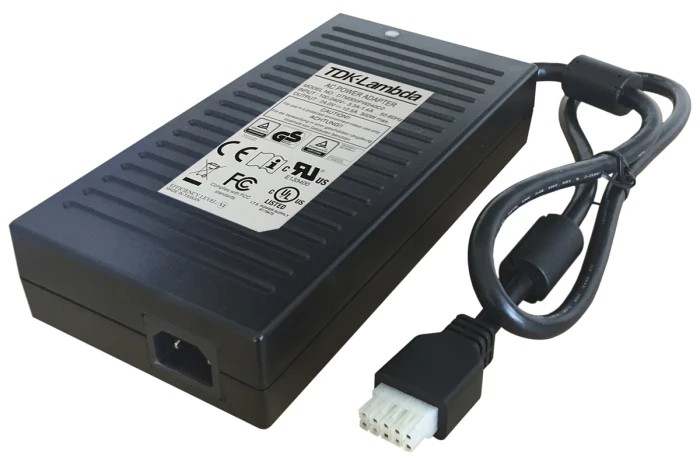

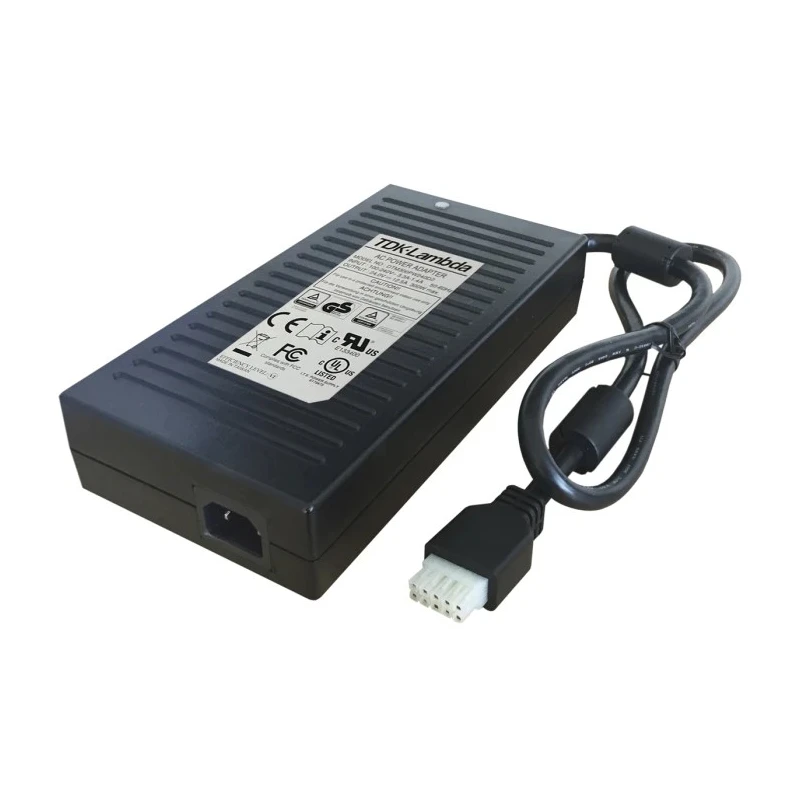

TDK-Lambda DTM-300PW-480-D1 AC/DC Power Adapter is a robust and medical-grade external power supply offering 300 W output power at 48 V DC with a 6.25 A adapter current. It features a 10-pin DC jack output connector and an 800 mm cable length for flexible connectivity. This adapter supports a wide input voltage range of 90 V to 264 V AC, enabling operation in diverse electrical environments. Designed with convection cooling in a rugged, vent-free enclosure, it ensures reliable performance without additional cooling fans.

The power adapter is compliant with multiple safety standards including CE, EN 60601-1, IEC 60601-1, and UL 60601-1, making it suitable for medical and ITE applications. It meets Department of Energy Level VI efficiency with an average efficiency of 88%, minimizing energy consumption and heat generation. The device operates in ambient temperatures between -30°C and 60°C with linear load derating above 40°C up to 60°C to maintain performance.

Additional built-in protections against over-voltage and overcurrent provide enhanced safety and durability. The input connector conforms to IEC 320-C14 standards, commonly used in power supplies, and the adapter uses a 10-pin Molex Mini-Fit® connector for output, ensuring secure and stable connections. This model is part of the DTM300-D series which is designed for demanding industrial and professional settings including medical equipment, test and measurement instruments, communications hardware, and broadcasting devices.

Medical and ITE approved external power supply. Convection cooling and rugged vent-free enclosure design. Wide input range of 90 V to 264 V AC with IEC 320-C14 connector. High energy efficiency meeting DoE Level VI standards.

Over-voltage and overcurrent protection features. Operating temperature from -30°C to 60°C with load derating above 40°C. 10-pin Molex Mini-Fit® DC output jack with 800 mm cable length. Compliant with CE, EN 60601-1, IEC 60601-1, and UL 60601-1 safety standards.

Ideal for medical, test, communications, and broadcasting applications.
