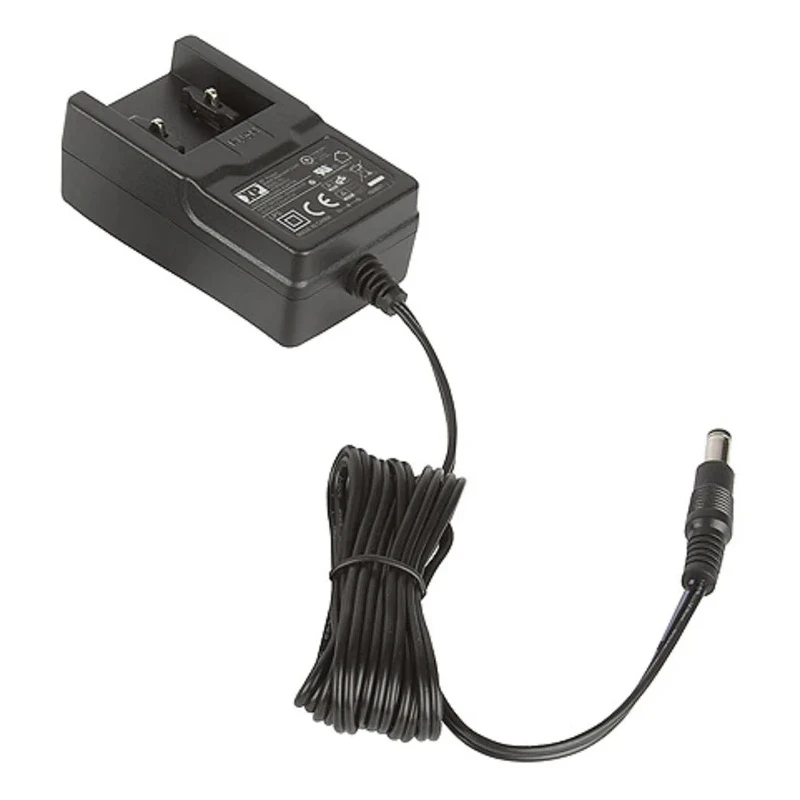

XP Power 5V 6W Interchangeable Plug AC/DC Adapter 2.1 x 5.5 x 12 mm Centre Positive Output ACM06US05

Free Delivery in India | Lowest Global Shipping Charges

XP Power 5V 6W Interchangeable Plug AC/DC Adapter 2.1 x 5.5 x 12 mm Centre Positive Output ACM06US05

Name: XP Power 5V 6W Interchangeable Plug AC/DC Adapter 2.1 x 5.5 x 12 mm Centre Positive Output ACM06US05
Brand: XP Power
SKU: 194638



Category AC/DC Adapters Brand XP Power Condition New

Specifications

Country of Origin	India
Brand	XP Power
Power	6W
Efficiency	82.5%
Length	73.5mm
Model	ACM06US05
Depth	42.5mm
Cable Length	1.8m
Width	30.7mm
Series	ACM06
Maximum Operating Temperature	60°C
Sub Type	AC/DC Adapter
Load Regulation	5 %
Minimum Operating Temperature	0°C
Plug Type	Interchangeable
Number of outputs	1
Maximum Input Voltage	264V ac
Output Voltage	5V dc
Standards/Approvals	CB, CE, EN 60950-1, UL 60950-1
Minimum Input Voltage	100V ac
Output Connector Type	2.1 x 5.5 x 12 mm Centre Positive
Input Connector Type	Universal Plug
Adapter Current	1A
Energy Efficiency Level	VI
ACM PLUG UK	RS Code 1241938
ACM PLUG US	RS Code 1241939
ACM PLUG EU	RS Code 1241940

Key Features

Suitable for various industrial and medical applications.
Interchangeable mains connectors ordered separately.
High efficiency with 82.5% energy conversion rate.
Compact dimensions of 73.5mm length, 42.5mm depth, and 30.7mm width.
Operating temperature range from 0°C to 60°C ensuring reliable performance.
Meets safety standards CB, CE, EN 60950-1, UL 60950-1.
Low no-load power consumption compliant with Level VI energy efficiency.

Product Description

XP Power ACM06US05 is a switch mode plug-in AC/DC adapter delivering 5V DC output at 6W power with a centre positive 2.1 x 5.5 x 12 mm connector. This adapter features interchangeable mains plugs to suit different regions compatible with universal plug input connectors.

Designed for demanding industrial and medical applications, it offers low no-load consumption and high active mode efficiency (82.5%). It operates reliably in temperatures from 0°C to 60°C and conforms to international safety standards CB, CE, EN 60950-1, and UL 60950-1.

The compact form factor measures 73.5mm in length, 42.5mm in depth, and 30.7mm in width, making it suitable for tight installations. Load regulation is maintained within 5% ensuring stable output current of 1A. This adapter supports input voltage ranging from 100V AC to 264V AC with a maximum efficiency geared towards Energy Efficiency Level VI compliance.

The interchangeable mains connectors must be ordered separately to match UK, US, or EU standards, enabling flexible deployment in global and industrial contexts. Cable length is 1.8 meters, providing ample reach for device connectivity.

Interchangeable plugs for global compatibility. Energy Efficiency Level VI compliance for low power consumption. Universal input voltage from 100V AC to 264V AC. 1A adapter current output with 5V DC voltage. Compact and robust AC/DC adapter design.

Suitable for industrial, laboratory, medical, and commercial power supply use. Certified to international electrical safety standards.

This XP Power ACM06US05 AC/DC adapter is ideal for powering electronic devices requiring dependable low voltage DC power with adaptable plug configurations. Explore more AC/DC Adapters and power solutions on EnvMart.
