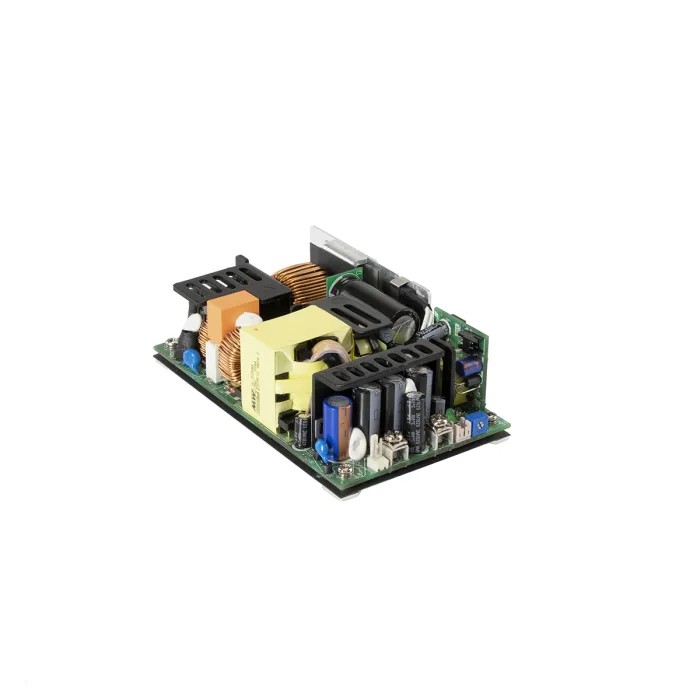

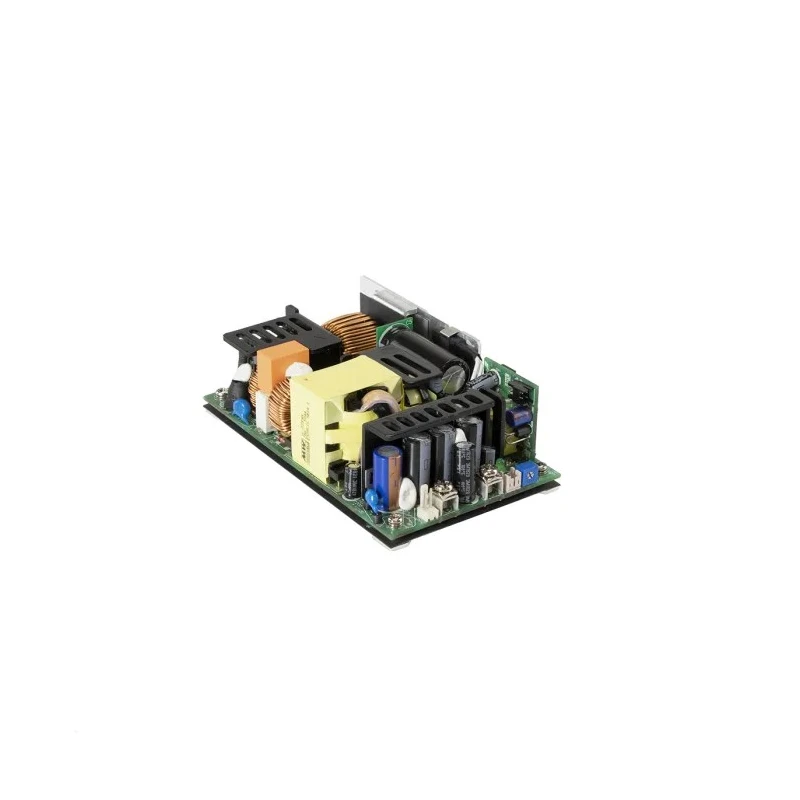

MEAN WELL EPP-500-48 Switching Power Supply AC-DC Single Output 48V DC 6.7A PCB Mount 127x40x40mm China EPP-500-48

MEAN WELL EPP-500-48 is a high-performance switching power supply designed for industrial and electronic applications requiring reliable 48V DC output. This AC-DC single output power supply delivers 6.7A current with a high efficiency of 94%, ensuring minimal energy loss during operation. Its compact dimensions of 127mm length, 40mm width, and 40mm depth make it suitable for installations in confined spaces, especially with PCB mounting.

The unit supports a broad input voltage range from 80V AC minimum up to 370V DC maximum, providing versatility across different electrical environments. It operates effectively within a wide temperature range of -30°C to 70°C, making it ideal for demanding industrial conditions. Weighing only 460 grams, the power supply is lightweight and easy to integrate into various systems.

This model features built-in protections against short circuits, overloads, excessive voltage, and over-temperature conditions to safeguard connected equipment. Furthermore, it complies with EMI standards for both Class I and Class II setups, helping to minimize electromagnetic interference in sensitive environments.

The MEAN WELL EPP-500-48 switching power supply supports forced air cooling up to 500W peak power (3-sec), with 320W convection cooling for steady operation. Its design includes power factor correction (PFC) enhancing energy efficiency and reducing distortion on the electrical line.

Typical use cases include powering industrial electronics, automation equipment, HVAC systems, manufacturing control units, and other applications requiring robust and stable DC power supply. Its compact size and operational flexibility make it a preferred choice for electronic component and power supply integration.

AC-DC single output power supply with PFC for efficient operation. Wide input voltage range from 80V AC to 370V DC for flexibility. High efficiency up to 94% reduces energy losses. Wide operating temperature range from -30°C to 70°C for reliability.

Lightweight design at 460g for easy installation. Compact size measuring 127mm in length and 40mm in width and depth. Includes protections against short circuit, overload, over voltage, and over temperature. Compatible with EMI requirements for Class I and Class II configurations.
