MEAN WELL IP67 1 Output AC-DC LED Driver 22-54 V 25 W 290 mA Constant Current Dimming 1-10 V

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL IP67 1 Output AC-DC LED Driver 22-54 V 25 W 290 mA Constant Current Dimming 1-10 V

Name: MEAN WELL IP67 1 Output AC-DC LED Driver 22-54 V 25 W 290 mA Constant Current Dimming 1-10 V
Brand: MEAN WELL
SKU: 156290



Category LED Drivers Brand MEAN WELL Condition New

Specifications

Country of Origin	China
Brand	MEAN WELL
Model	IP67
IP Rating	IP67
Mount Type	Screw
Series	XLG-25
Configuration	Enclosed
Sub Type	LED Driver
Operating Modes	Constant Current
Number of outputs	1
Terminal type	Wire
Maximum Output Power	25W
Input Voltage	305, 90V ac
Output Voltage	22, 54V
Power Dissipation	25W
Standards/Approvals	CB, CE, EAC SELV, ENEC, UL
Dimming Operation	1/10 V
Primary Type	AC-DC
Driver Current	290mA
LED Voltage	305, 90V ac
Function options	Output Adjustable via Potentiometer 3in 1 Dimming (dim-to-off)

Key Features

Operates with an input voltage range of 90 to 305 V AC.
Equipped with constant current operating mode for stable LED performance.
Constructed with a metal housing design suitable for indoor and protected outdoor use.
Includes advanced active PFC function for improved power factor.
Complies with CB, CE, EAC SELV, ENEC, and UL standards.
Features built-in dimming options via potentiometer and 3-in-1 dimming methods including dim-to-off functionality.
Designed to operate reliably between -40°C to 85°C with air convection cooling.
Single output configuration ensures straightforward installation and operation.

Product Description

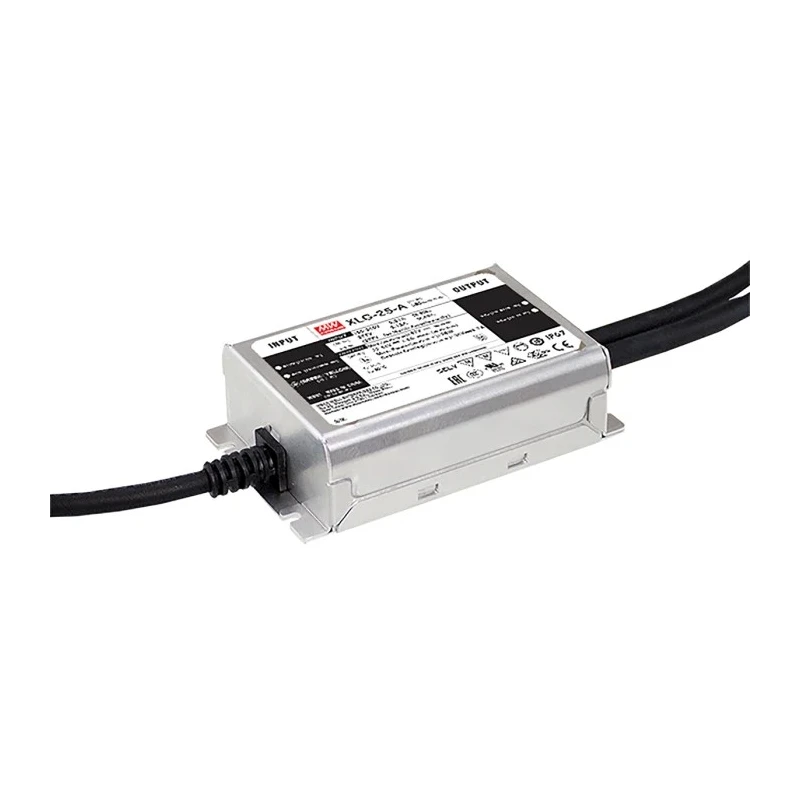

MEAN WELL XLG-25-A IP67 rated LED Driver is a 25 W AC-DC power supply designed for constant current LED lighting applications. It supports an output voltage range of 22 to 54 V and provides a driver current of 290 mA. The driver is enclosed in a robust metal housing that allows use in indoor and outdoor environments with protection against dust and water (IP67).

The device operates at input voltages between 90 and 305 V AC, ensuring versatile compatibility with electrical systems. It utilizes a constant current operating mode to maintain stable illumination output for LED modules.

This model features advanced functions including built-in active power factor correction (PFC) and multiple dimming options such as 1/10 V dimming and potentiometer adjustments, allowing precise lighting control and energy efficiency. The unit complies with global safety and performance standards including CB, CE, EAC SELV, ENEC, and UL certifications.

Designed to handle ambient temperatures ranging from -40°C to 85°C with natural air convection cooling, the XLG-25-A ensures reliable long-term operation in diverse industrial, commercial, and architectural lighting applications.

Key applications include LED street lighting, architectural lighting, bay lighting, and flood lighting. The enclosed configuration simplifies installation and enhances durability in challenging environments.

Operates with input voltages 90-305 V AC for global use. Provides constant current output of 290 mA for LED load compatibility. Metal housing designed for IP67 ingress protection. Supports 1/10 V and potentiometer dimming for flexible lighting control.

High efficiency and built-in active PFC for energy savings. Complies with CB, CE, UL and other safety standards. Wide operating temperature range from -40°C to 85°C with air convection cooling. Suitable for outdoor and indoor LED lighting installations.

Class 2 power unit with low standby power consumption. Single output configuration for simplified wiring.

MEAN WELL products are widely recognized for reliability and innovative design in industrial and commercial LED lighting solutions. Explore our catalog for complete LED driver options suited to diverse lighting system requirements.

Explore more products in our LED Drivers category.
