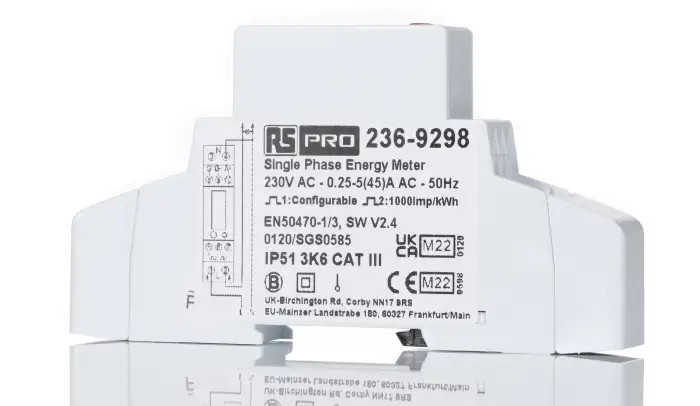

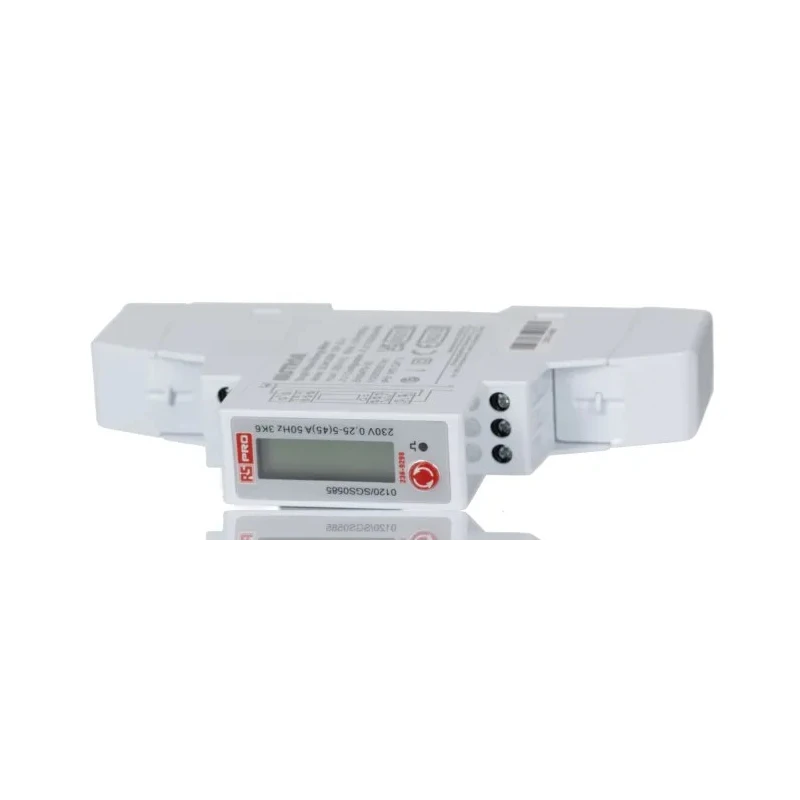

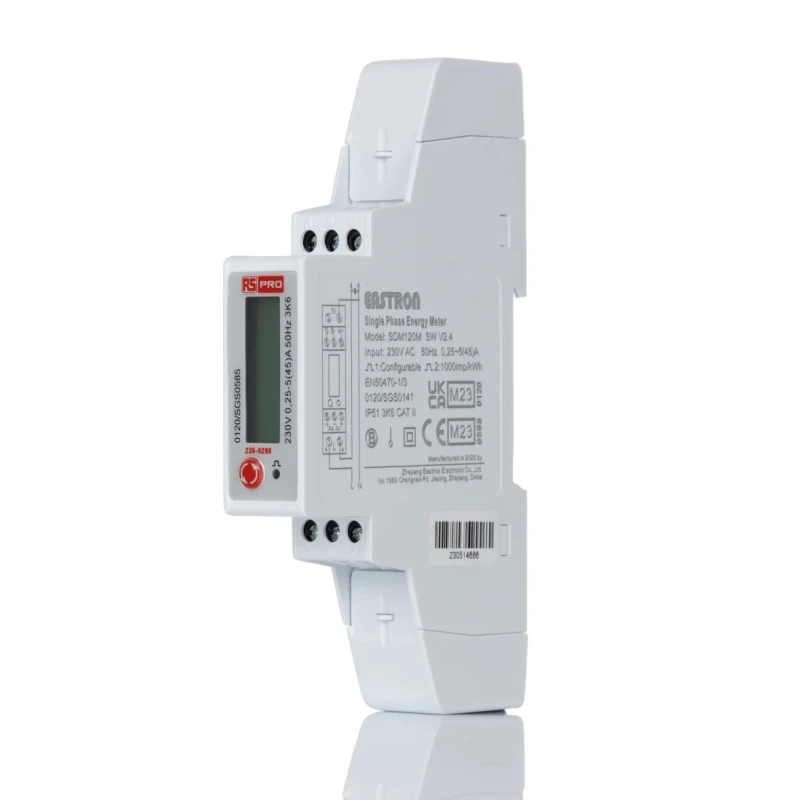

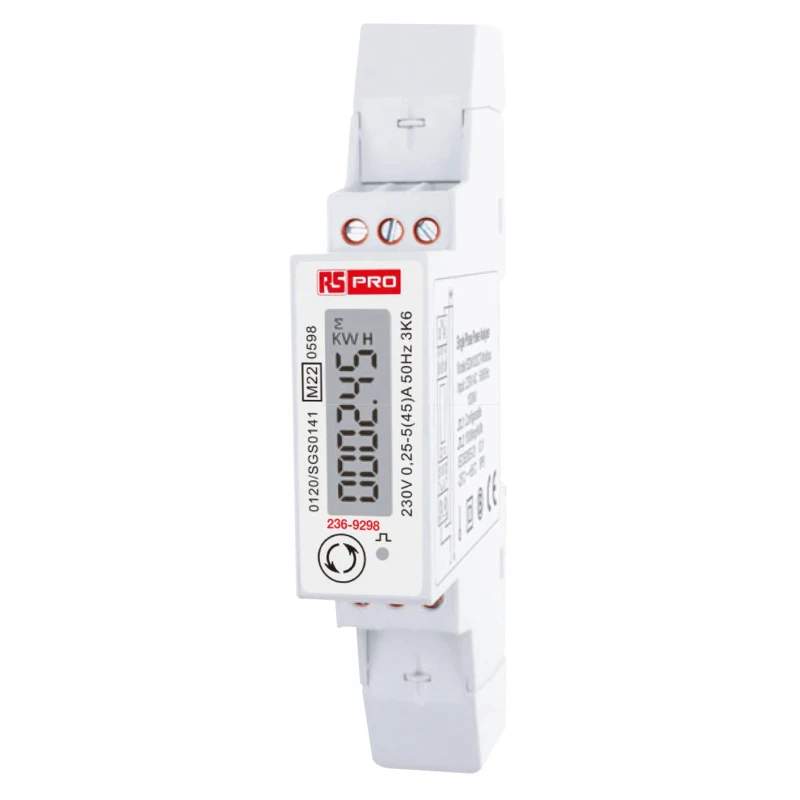

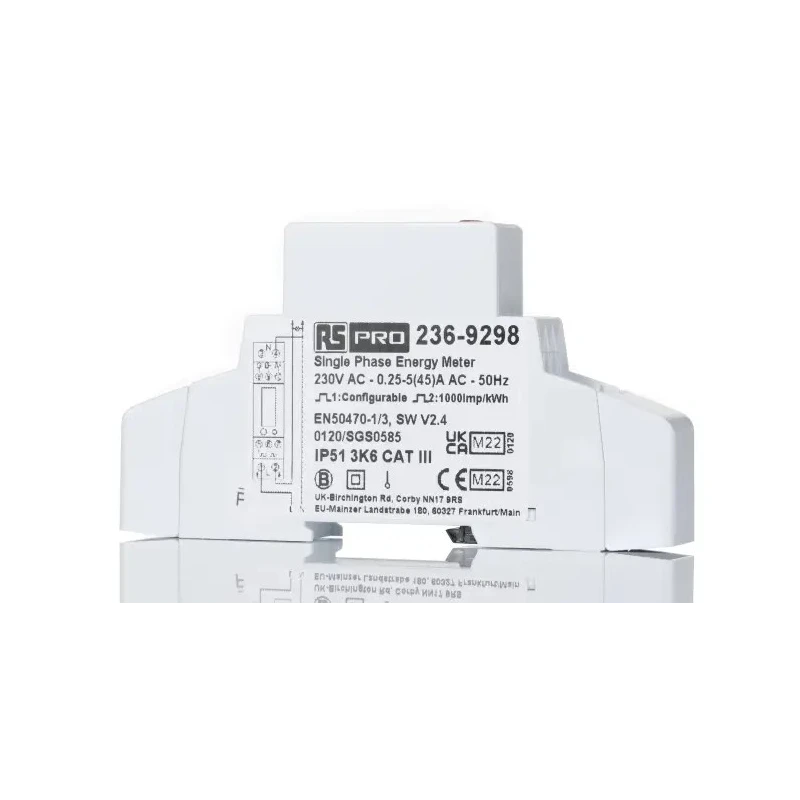

RS PRO 1 Phase Energy Meter with LCD Backlight, Pulse Output, RS485 Modbus, 45A Load Capacity 236-9298
Specifications
| Country of Origin | China |
|---|---|
| Display Type | LCD Backlight |
| Brand | RS PRO |
| Model | 236-9298 |
| Depth | 64mm |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Meter Type | Energy Meter |
| Number Of Digits | 6 |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 2 |
| Number of Phases | 1 |
| Standards/Approvals | RoHS, IEC62053-21 |
Key Features
- Features a white backlit LCD display for clear readings in varying light conditions.
- Supports pulse output with 2 outputs for energy measurement communication.
- Operates with a maximum load capacity of 45A AC circuit load.
- Includes RS485 communication port with MODBUS RTU protocol for versatile connectivity.
- Conforms to Class 1 kWh accuracy as per EN62053-21 and Class B as per EN50470-3.
- Measures and displays 10 electrical power quality parameters for comprehensive monitoring.
- Functions reliably within a temperature range of -25°C to 55°C.
- Compact 1-DIN module size with a depth of 64 mm for easy panel mounting.
Product Description
RS PRO 236-9298 1 Phase Energy Meter with LCD Backlight is designed for precise electrical power quality monitoring in single-phase systems with a maximum load of 45A AC. The meter features a white backlit LCD display to ensure readability even in low light scenarios and supports 10 different electrical parameters measuring for effective power management.
This model comes equipped with 2 pulse outputs facilitating integration with energy management systems. The RS485 communication port with MODBUS RTU protocol provides reliable and flexible connectivity options for industrial automation and monitoring applications.
The product complies with Class 1 kWh accuracy as per EN62053-21 and Class B accuracy rating according to EN50470-3 standards, ensuring dependable measurements with 0.5% accuracy on current, voltage, and power.
Rated for operation in environments ranging from -25°C to 55°C, this energy meter is suitable for diverse industrial, commercial, and laboratory settings. Its compact 1-DIN size and 64 mm depth allow convenient panel mounting without occupying excessive space.
The meter operates with a self-supplied auxiliary power source, simplifying installation and reducing wiring complexity. Manufactured in China to RoHS and IEC62053-21 standards, this product fulfills stringent quality and environmental regulations.
Features a backlit LCD display for clear parameter visualization. Supports versatile pulse output options with 2 outputs. Includes RS485 communication port supporting MODBUS RTU protocol. High accuracy Class 1 kWh and Class B compliance.
Wide operating temperature range from -25°C to 55°C. Compact 1-DIN module size with 64 mm depth. Self-supplied auxiliary power supply for easy installation. Suitable for industrial, automation, and process control applications.
Complies with RoHS and IEC62053-21 standards.
This RS PRO energy meter is ideal for industrial machines, electrical systems monitoring, process control, laboratory equipment, and HVAC systems requiring accurate and reliable single-phase energy measurement. For a comprehensive range of measuring instruments and Energy Meters, explore the dedicated product categories at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The energy meter has a maximum load capacity of 45A for AC circuit loads.
It includes an RS485 communication port that supports the MODBUS RTU protocol for versatile connectivity.
This model measures and displays 10 different electrical power quality parameters for comprehensive monitoring.
It operates reliably within a temperature range of -25°C to 55°C.
It features a white backlit LCD display for clear readings in varying light conditions.
This energy meter supports 2 pulse outputs for energy measurement communication.
The energy meter has a compact 1-DIN module size with a depth of 64 mm, allowing for easy panel mounting.
It complies with RoHS and IEC62053-21 standards, ensuring it meets stringent quality and environmental regulations.
It conforms to Class 1 kWh accuracy as per EN62053-21 and Class B as per EN50470-3, ensuring dependable measurements with 0.5% accuracy.
This model operates with a self-supplied auxiliary power source, simplifying installation and reducing wiring complexity.
It is suitable for industrial machines, electrical systems monitoring, process control, laboratory equipment, and HVAC systems requiring accurate energy measurement.
This energy meter is designed for single-phase systems.
