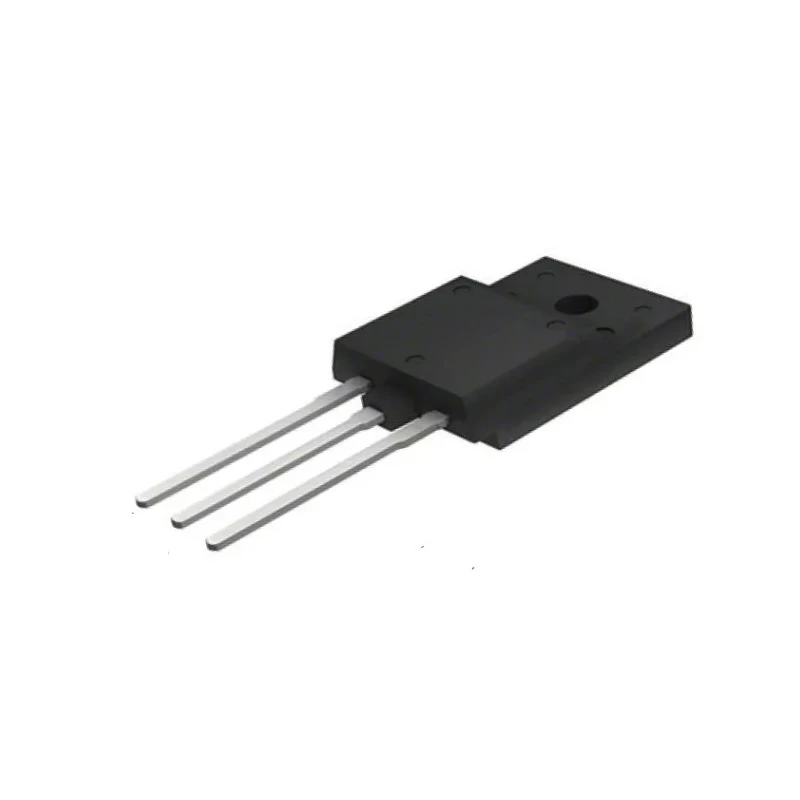

Vishay 600 V 30 A General Purpose Rectifier & Schottky Diode TO-3PF VS-CZH6106FP-M3

Vishay VS-CZH6106FP-M3 is a high-performance general purpose rectifier and Schottky diode featuring a maximum continuous forward current of 30 A and peak reverse repetitive voltage of 600 V. Designed for power conversion applications, this component utilizes a planar structure with platinum doping to enhance ruggedness, reliability, and operational efficiency. The device is enclosed in a TO-3PF isolated package, making it suitable for integration into high-frequency power supply circuits and inverter systems such as motor drives, UPS, air conditioning units, and high-frequency welders.

Supporting hyperfast recovery time and low forward voltage drop, the VS-CZH6106FP-M3 minimizes switching losses and thermal dissipation, ensuring stability and efficiency across various industrial and automotive implementations. It is compliant with RoHS environmental standards and AEC-Q101 automotive reliability requirements, making it fit for demanding conditions and high-quality designs. The diode configuration is a 2x common cathode pair for flexible usage in circuit architectures.

High maximum continuous forward current rating of 30 A for robust performance. Peak reverse repetitive voltage of 600 V allows operation in demanding electrical environments. Hyperfast recovery time and low forward voltage drop for efficient switching.

Fully isolated TO-3PF package ensures safe installation and thermal management. Automotive standard AEC-Q101 compliant for reliability in automotive applications. Platinum doped planar structure provides ruggedness and increased reliability.

Operates at junction temperatures up to 175 °C, suited for industrial conditions. RoHS compliant construction for environmental responsibility.

The component is widely employed in industrial, laboratory, and automotive systems, including AC/DC switch mode power supplies, PFC boost stages, snubbers, and inverter circuits. Its high maximum operating temperature and surge current rating further contribute to its versatility and durability.

This Vishay diode is a preferred choice in environments where efficient energy conversion, high reliability, and robust electrical performance are essential. Explore more Vishay power semiconductors and Schottky Diodes in the Semiconductor category on EnvMart.
