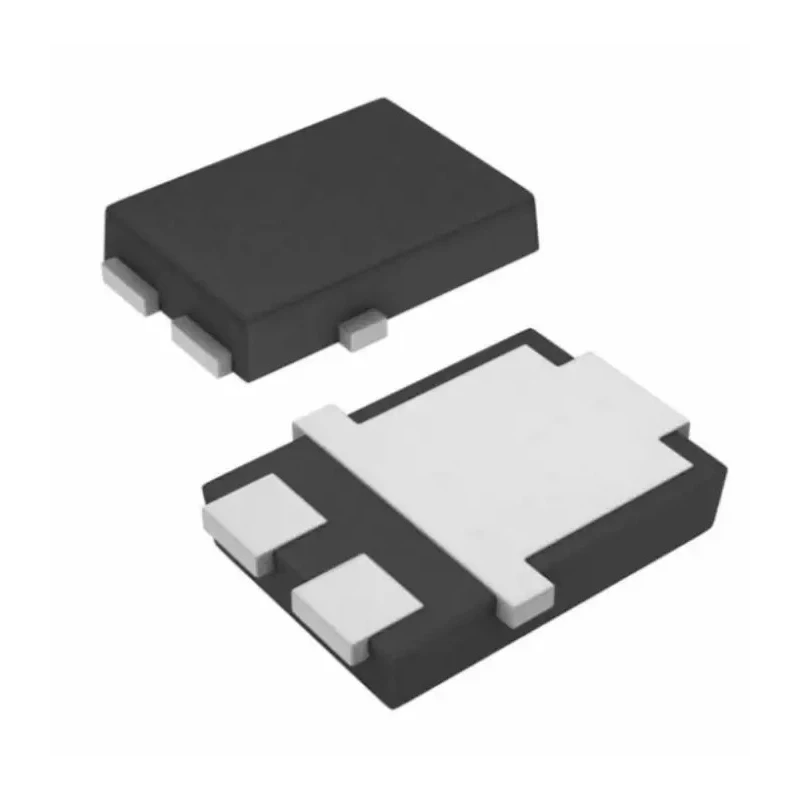

Vishay 60 V 10 A Schottky Diode Surface Mount TO-277 Package SS10P6-M3/86A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.2mm |
| Length | 6.15mm |
| Model | SS10P6-M3/86A |
| Width | 4.35mm |
| Mount Type | Surface |
| Series | SS10P6 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-277 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 150μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 280A |
| Maximum Forward Voltage Vf | 670mV |
Key Features
- Maximum continuous forward current of 10 A suitable for power rectification.
- Peak reverse repetitive voltage rating of 60 V for robust performance.
- Schottky diode configuration ensuring fast switching and low power loss.
- Compact TO-277 surface mount package providing ease of integration.
- Wide operating temperature range from -55°C to 150°C for versatile use.
- Peak non-repetitive forward surge current of 280 A for transient handling.
- Low maximum forward voltage of 670 mV promoting efficiency.
- Three-pin design ideal for discrete semiconductor applications.
Product Description
Vishay SS10P6-M3/86A is a high performance Schottky diode designed as a single diode rectifier with a 3-pin TO-277 surface mount package. It supports a maximum continuous forward current of 10 A and a peak reverse repetitive voltage of 60 V, making it ideal for electronic, industrial, and power supply applications.
Featuring a low forward voltage drop of 670 mV and fast switching characteristics, this diode effectively reduces power losses and improves efficiency in circuits requiring rapid recovery time. Its operating temperature range spans from -55°C to 150°C, ensuring reliable operation under varied environmental conditions.
The diode dimensions are compact with a length of 6.15 mm, width of 4.35 mm, and height of 1.2 mm, offering space-saving advantages in densely packed PCBs. The peak non-repetitive forward surge current rating of 280 A further enhances its robustness against transient events.
Vishay Schottky diodes are widely used in industrial power rectification, switching power supplies, automotive electronics, and telecommunications equipment. This component meets the demanding requirements for fast switching and efficient performance in high-current applications.
Maximum continuous forward current of 10 A. Peak reverse repetitive voltage rating of 60 V. Low forward voltage drop at 670 mV for efficiency. Fast switching Schottky diode configuration. Compact surface mount TO-277 package with 3-pin design.
Operating temperature range from -55°C to 150°C. Peak surge current handling up to 280 A. Compact physical dimensions for space-constrained designs. Manufactured in China to Vishay Semiconductor quality standards.
This Vishay SS10P6-M3/86A diode is an essential component for industrial, electronic manufacturing, power supply design, and semiconductor applications. Browse more Vishay semiconductor products and Schottky diodes at EnvMart to find complementary components for your projects.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 10 A.
It has a peak reverse repetitive voltage rating of 60 V.
The dimensions of this diode are 6.15 mm in length, 4.35 mm in width, and 1.2 mm in height.
This model operates within a temperature range of -55°C to 150°C.
The maximum forward voltage drop for this diode is 670 mV.
The peak non-repetitive forward surge current rating is 280 A.
It comes in a compact TO-277 surface mount package.
This diode features a 3-pin design.
It is widely used in industrial power rectification, switching power supplies, automotive electronics, and telecommunications equipment.
The diode configuration is a single Schottky diode.
The peak reverse current is rated at 150 μA.
This diode is manufactured in China to Vishay Semiconductor quality standards.
