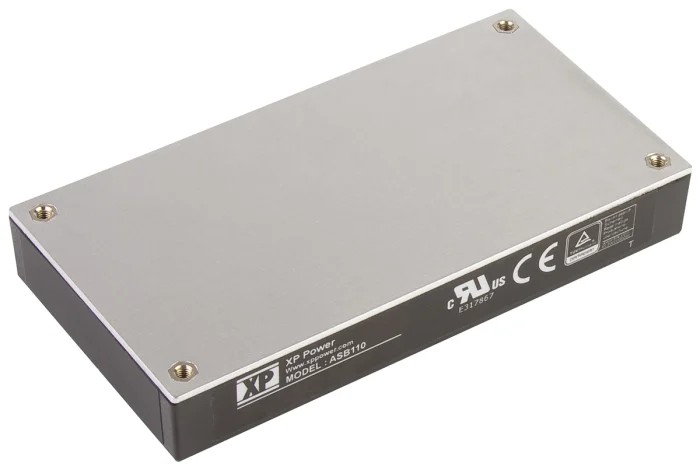

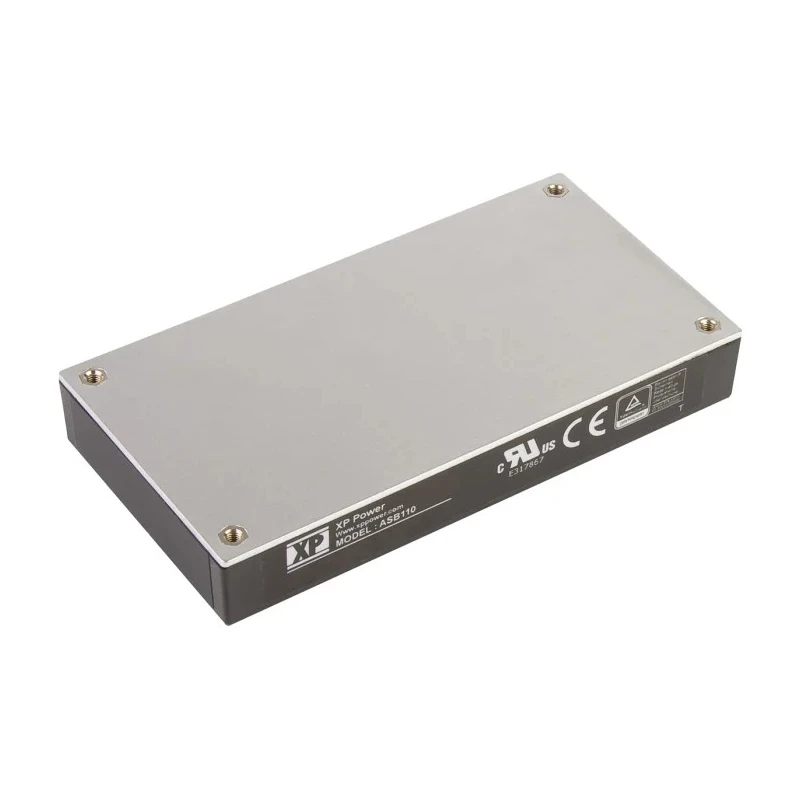

XP Power ASB110PS48 Switching Power Supply 48V DC, 110W, PCB Mount, Universal Input, 91% Efficiency

Free Delivery in India | Lowest Global Shipping Charges

XP Power ASB110PS48 Switching Power Supply 48V DC, 110W, PCB Mount, Universal Input, 91% Efficiency

Name: XP Power ASB110PS48 Switching Power Supply 48V DC, 110W, PCB Mount, Universal Input, 91% Efficiency
Brand: XP Power
SKU: 80147
Price: 20.22 USD
Availability: InStock



Category Switching Power Supplies Brand XP Power Condition New

Specifications

Country of Origin	India
Brand	XP Power
Power	110W
Efficiency	91%
Length	116.8mm
Model	ASB110PS48
Depth	17mm
Gross Weight	230g
Width	61mm
Mount Type	PCB
Series	ASB
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Input Voltage	264V ac
Standards/Approvals	EN 609501, IEC 609501, UL 609501
Maximum Output Voltage	48V dc
SMPS Output Current	2.29A
Minimum Input Voltage	85V ac

Key Features

Suitable for industrial and electronics systems requiring reliable DC output.
Universal AC input voltage range from 85V to 264V AC ensures flexible installation.
Operates at high efficiency up to 91%, reducing energy losses and heat.
Compact brick package with low profile saves PCB space.
Wide baseplate cooled operating temperature from -40°C to 85°C for demanding environments.
Certified to EN 609501, IEC 609501, and UL 609501 standards for electrical safety.
Provides 2.29A output current suitable for medium-power loads.

Product Description

XP Power ASB110PS48 is a high-reliability switching power supply engineered to provide a stable 48V DC output at 110 watts for demanding industrial and electronics systems. Designed for PCB mounting, this unit features a full brick, low profile package suited to space-constrained layouts.

The ASB110PS48 accepts a universal input range of 85V to 264V AC, making it compatible with global mains power sources. Its high efficiency rating of up to 91% translates into reduced energy consumption and minimized heat generation - critical for thermally sensitive environments or closed enclosures.

This power supply addresses safety and operational assurance with integrated protection features including overcurrent, overvoltage, and overtemperature protection mechanisms. These safeguards help maintain system optimality and reduce the risk of damage during abnormal conditions.

The device is baseplate cooled and supports a wide operating temperature range from -40°C up to +85°C, suitable for harsh industrial, laboratory, and commercial settings. With a single output channel delivering up to 2.29A, it efficiently powers moderate loads such as process controllers, sensors, and communication modules.

Physical dimensions are compact at 116.8mm length, 61mm width, and just 17mm depth, enabling easy integration onto PCB assemblies. The lightweight construction (230g) supports applications where mechanical stress or quick replacement is required.

XP Power’s ASB110PS48 is certified to EN 609501, IEC 609501, and UL 609501 standards, ensuring compliance with recognized electrical safety criteria. Fully operational without external components, it simplifies design and reduces procurement complexity.

This switching power supply is ideal for use in industrial automation, laboratory equipment, process instrumentation, electronic test benches, communication systems, and anywhere reliable, efficient DC conversion is required. Its combination of performance, compactness, and certifications makes it an essential element in modern power electronics.
