XP Power ECL10US12-E Switching Power Supply 12V DC, 10W, Open Frame PCB Mount, 264V AC Input

Free Delivery in India | Lowest Global Shipping Charges

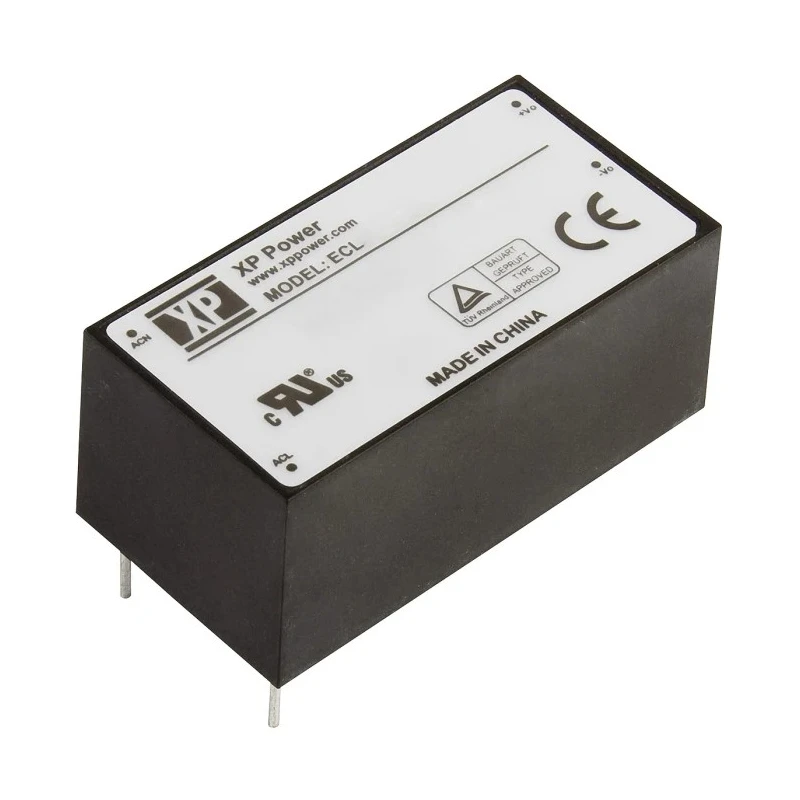

XP Power ECL10US12-E Switching Power Supply 12V DC, 10W, Open Frame PCB Mount, 264V AC Input

Name: XP Power ECL10US12-E Switching Power Supply 12V DC, 10W, Open Frame PCB Mount, 264V AC Input
Brand: XP Power
SKU: 88364



Category Switching Power Supply Brand XP Power Condition New

Specifications

Country of Origin	China
Brand	XP Power
Power	10W
Efficiency	78%
Length	52.4mm
Model	ECL10US12-E
Depth	23mm
Gross Weight	60g
Width	27.2mm
Mount Type	PCB
Series	ECL
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-20°C
Number of outputs	1
Maximum Input Voltage	264V ac
Maximum Output Voltage	12V dc
SMPS Output Current	830mA
Minimum Input Voltage	85V ac

Key Features

Designed for electronic and industrial applications requiring reliable DC power conversion.
Provides a maximum output voltage of 12V DC and delivers up to 10W power.
Single output channel suitable for a range of low voltage equipment and boards.
Wide input voltage range from 85 to 264V AC enables broad installation flexibility.
PCB mount open-frame form factor ideal for integration in compact device assemblies.
Offers high efficiency at 78% and supports output current up to 830mA.
Operational in environments from -20°C to 70°C for robust performance.
Ultra-compact dimensions with a footprint of 52.4mm x 27.2mm x 23mm.

Product Description

XP Power ECL10US12-E is an ultra-compact Switching Power Supply engineered for reliable performance across a broad range of industrial, laboratory, and electronic applications. The unit is part of the ECL Series from XP Power, offering efficient AC-DC conversion with a single 12V DC output and a maximum power rating of 10W.

The ECL10US12-E supports a wide input voltage range from 85V AC up to 264V AC, accommodating diverse installation environments including global commercial, industrial, and laboratory setups. With an output current capability of 830mA and an efficiency of 78%, this model delivers stable power with minimal losses, ensuring optimal performance of sensitive electronics.

Operational reliability is enhanced by its robust thermal tolerance, functioning efficiently between -20°C and 70°C. The ultra-compact footprint - 52.4mm in length, 27.2mm in width, and 23mm in depth - enables ease of integration while minimizing enclosure space requirements. At only 60g, the lightweight construction supports modern lightweight device designs without compromising on reliability.

Safety and compliance are assured through adherence to recognized global standards, including EN 61000-4-11, EN 55022, EN 60950-1, UL 60950-1, IEC 60950-1, among others, permitting confident deployment in regulated environments. Its design supports PCB mount configurations and is engineered for single-output supply, catering to equipment requiring dedicated 12V DC lines.

Industries from electronics manufacturing to laboratory systems and industrial automation benefit from the ECL10US12-E's stable, efficient performance, making it an optimal choice for new device builds, retrofits, or maintenance upgrades. Suitable for powering sensors, logic boards, microcontrollers, and other low-voltage digital and analog devices.
