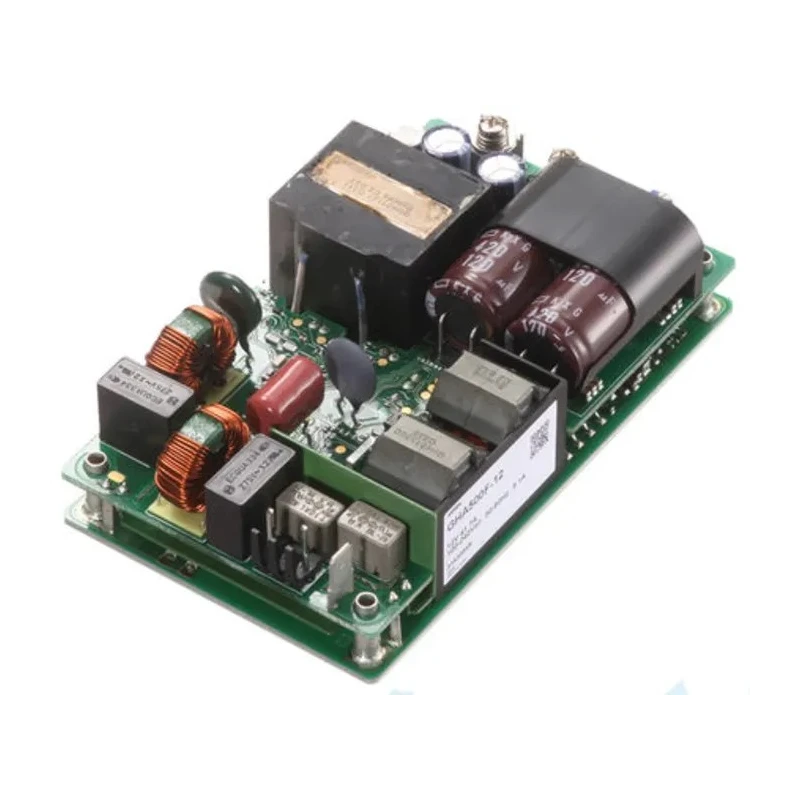

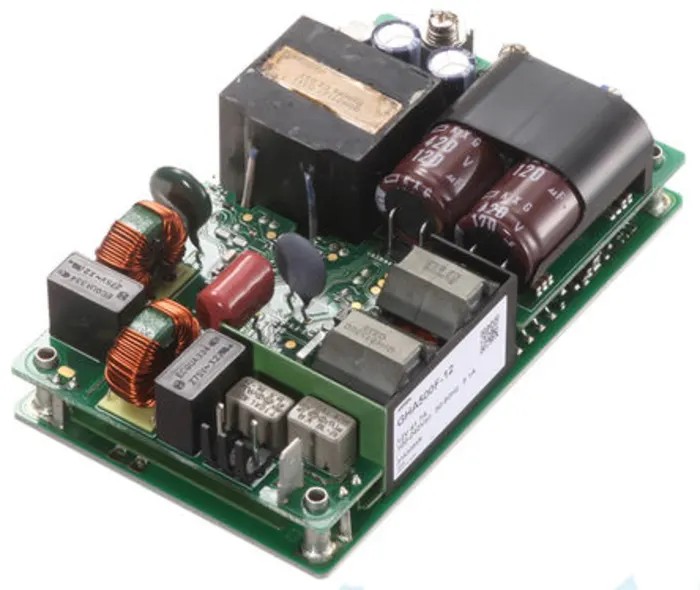

Cosel Switching Power Supply 500W 12V dc PCB Mount High Efficiency 92% GHA500F-12-P

Free Delivery in India | Lowest Global Shipping Charges

Cosel Switching Power Supply 500W 12V dc PCB Mount High Efficiency 92% GHA500F-12-P

Name: Cosel Switching Power Supply 500W 12V dc PCB Mount High Efficiency 92% GHA500F-12-P
Brand: Cosel
SKU: 200945



Category Switching Power Supply Brand Cosel Condition New

Specifications

Country of Origin	Japan
Brand	Cosel
Power	500W
Efficiency	92%
Length	127mm
Model	GHA500F-12-P
Depth	35mm
Gross Weight	420g
Width	76.2mm
Mount Type	PCB
Series	GHA500F
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-20°C
Number of outputs	1
Maximum Input Voltage	264V ac
Standards/Approvals	CE, UL, RoHS, cURus
Maximum Output Voltage	12V dc
SMPS Output Current	9.2A
Minimum Input Voltage	90V ac

Key Features

Provides a maximum output voltage of 12V DC with a single output.
Features high efficiency of 92%, ensuring energy-saving operation.
Supports universal input voltage range from 90V AC to 264V AC.
Operates reliably within a temperature range of -20°C to 80°C.
Compact dimensions of 127mm length, 76.2mm width, and 35mm depth.
Equipped with industrial and medical safety approvals for robust use.
Includes built-in power factor correction and protection circuits.
Lightweight design with a gross weight of 420 grams.

Product Description

Cosel GHA500F-12-P Switching Power Supply is a 500W power supply unit providing a single 12V DC output, designed for PCB mounting and industrial applications.

This power supply is part of the GHA series, known for their high reliability and compliance with stringent industrial and medical safety standards. It delivers a maximum current of 9.2A and features a universal input voltage range from 90V to 264V AC, enabling global compatibility.

Its compact size with dimensions of 127mm (length) x 76.2mm (width) x 35mm (depth) and a lightweight of 420g make it suitable for compact 1U mounting configurations where space is critical. The unit operates efficiently with a 92% efficiency rating, reducing energy loss and increasing operational stability.

This power supply incorporates internal dual fuses, harmonic attenuation complying with IEC61000-3-2 Class A, inrush current limiting, and overcurrent and overvoltage protections which enhance durability and safety during operation. It also includes optional features such as Remote On/Off and auxiliary output signals.

The operating temperature range from -20°C to 80°C allows this unit to function reliably under harsh environmental conditions, making it ideal for industrial, medical, laboratory, and manufacturing applications.

Maximum output voltage 12V DC with 9.2A output current. Universal input voltage range of 90 to 264V AC with built-in power factor correction. Compact PCB mount design with low leakage current. Industrial and medical safety approvals ensure compliance and reliability.

High efficiency of 92% reduces heat generation and energy consumption. Operating temperature range from -20°C to 80°C suitable for diverse environments. Includes protection features like internal dual fuses and overcurrent protection.

Lightweight 420g construction facilitates easy installation. Supports 1U mounting applications commonly used in electronic equipment racks. Manufactured in Japan adhering to strict quality standards.

This Cosel power supply GHA500F-12-P is an excellent choice for those requiring a robust, efficient, and compact Switching Power Supply solution in industrial and medical power systems. Explore more products in Switching Power Supplies category at EnvMart for comprehensive options.
