XP Power Switching Power Supply 9V DC 15W PCB Mount ECL15US09-P

Free Delivery in India | Lowest Global Shipping Charges

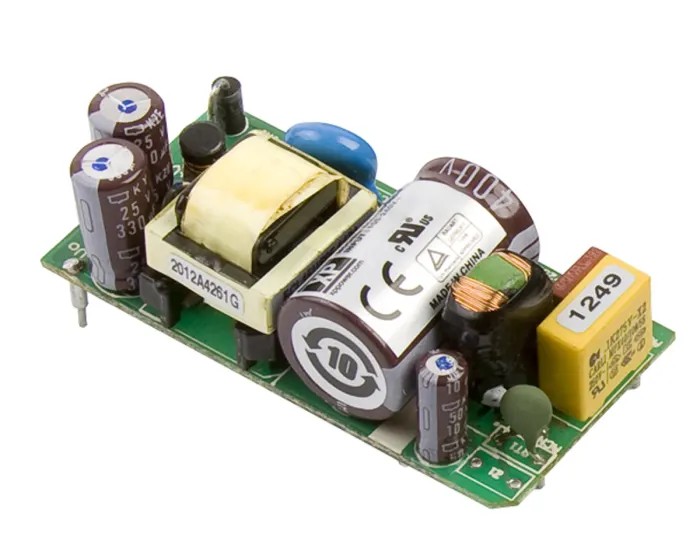

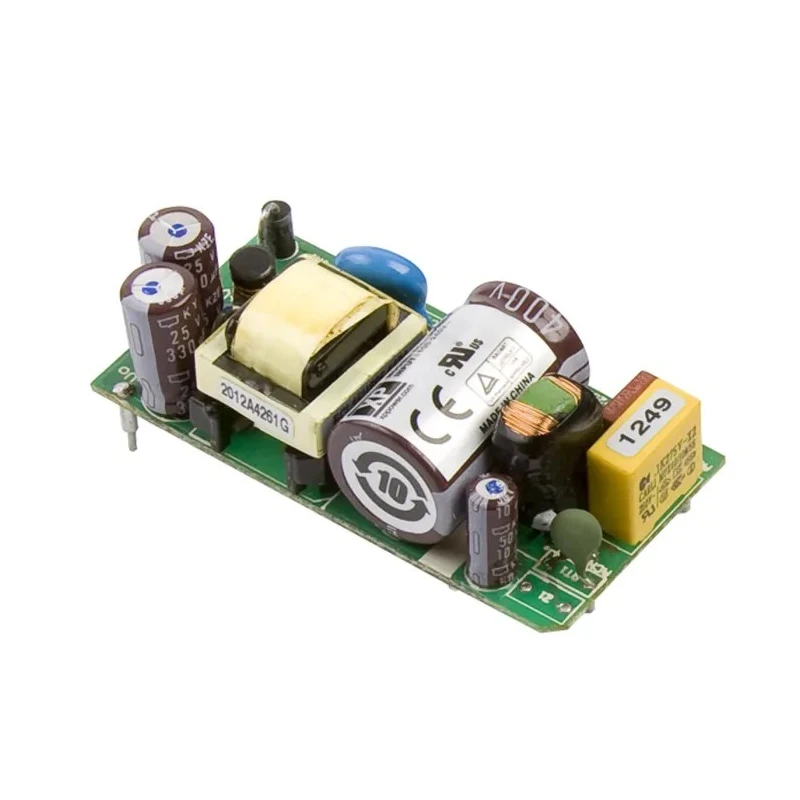

XP Power Switching Power Supply 9V DC 15W PCB Mount ECL15US09-P

Name: XP Power Switching Power Supply 9V DC 15W PCB Mount ECL15US09-P
Brand: XP Power
SKU: 80149



Category Switching Power Supplies Brand XP Power Condition New

Specifications

Country of Origin	China
Brand	XP Power
Power	15W
Efficiency	80%
Length	62mm
Model	ECL15US09-P
Depth	20mm
Gross Weight	35g
Width	30.7mm
Mount Type	PCB
Series	ECL
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-20°C
Number of outputs	1
Maximum Input Voltage	264V ac
Maximum Output Voltage	9V dc
SMPS Output Current	1.67A
Minimum Input Voltage	85V ac

Key Features

Delivers a stable 9V DC output with a maximum power of 15W for sensitive electronic circuits.
PCB mountable open-frame design provides seamless integration into custom projects.
Accepts a wide AC input range from 85V to 264V, ensuring universal application.
Offers a single output channel with output current capability up to 1.67A.
High operational efficiency up to 80 percent for energy-conscious systems.
Operates reliably from -20°C to 70°C, supporting varied industrial environments.
Ultra-compact form factor at just 62mm x 30.7mm x 20mm and lightweight 35g build.
Conforms to major safety standards including UL 60950-1 and IEC 60950-1.

Product Description

XP Power ECL15US09-P is a compact and efficient switching power supply designed to provide regulated 9V DC output at up to 15W. It is built for direct PCB mounting, making it ideal for integration into a wide variety of electronic assemblies where space is at a premium and consistent power delivery is required.

This power supply supports an input voltage range of 85V AC to 264V AC, allowing flexibility for both domestic and industrial power systems. The supply reliably provides a single output channel with current up to 1.67A, suitable for driving low-voltage digital and analog electronics in embedded and control applications.

The open-frame construction ensures easy installation and improved thermal performance, while its ultra-compact 62mm (L) x 30.7mm (W) x 20mm (D) size and lightweight 35g design help reduce system footprint. Operating efficiently up to 80 percent, it reduces energy losses and supports environmentally conscious product designs.

Engineered for robust performance, the ECL15US09-P continues to function in a wide temperature range from -20°C to 70°C. It meets leading international safety and EMC standards including UL 60950-1, IEC 60950-1, and EMC/EMI directives such as EN 61000-3-2, EN 55022, and EN 61000-4 series, ensuring reliable operation and compliance with global regulations.

Common applications include use in instrumentation, monitoring systems, automation controllers, IoT devices, and industrial electronics where steadfast low-voltage DC supplies are critical. The versatile PCB-mount design makes it easy to embed within equipment enclosures or control cabinets with limited available space.

Whether for new product development or replacement in legacy systems, XP Power ECL15US09-P power supply will provide dependable performance for various electronic projects. Explore more XP Power products and Switching Power Supplies in the EnvMart catalogue for advanced energy conversion and industrial electronic system requirements.
