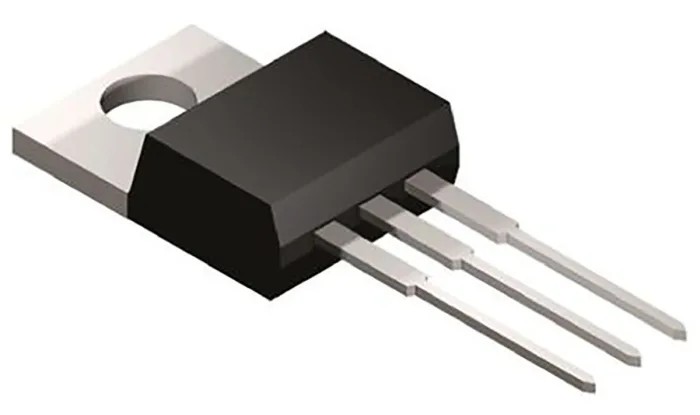

Vishay N-Channel Power MOSFET TO-220AB Package, 30 A, 60 V Enhancement Mode IRFZ34PBF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 9.01mm |
| Length | 10.41mm |
| Model | IRFZ34PBF |
| Width | 4.7mm |
| Mount Type | Through Hole |
| Series | IRFZ |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220AB |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Channel Type | N |
| Maximum Continuous Drain Current Id | 30A |
| Maximum Drain Source Voltage Vds | 60V |
| Maximum Drain Source Resistance Rds | 0.05Ω |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 88W |
| Typical Gate Charge Qg @ Vgs | 46nC |
| Maximum Gate Source Voltage Vgs | -20, +20V |
| Forward Voltage Vf | 1.6V |
Key Features
- Maximum continuous drain current of 30 amperes for heavy load handling.
- Drain-source voltage rating of 60 volts suitable for medium voltage circuits.
- Low on-resistance of 0.05 ohms to minimize conduction losses.
- High maximum power dissipation of 88 watts for reliable thermal performance.
- Operating temperature range from -55°C to 175°C enabling use in harsh environments.
- Typical gate charge of 46 nanocoulombs at Vgs for fast switching.
- Package type TO-220AB with three pins for standard through-hole mounting.
- RoHS compliant ensuring environmental safety and regulatory conformity.
Product Description
Vishay IRFZ34PBF is a high-performance N-Channel Power MOSFET featuring a 3-pin TO-220AB package designed for power switching applications requiring efficient conduction and thermal performance. Rated for a maximum continuous drain current of 30 A and maximum drain-source voltage of 60 V, this enhancement mode MOSFET offers low on-resistance of 0.05 Ω, which minimizes power loss during operation. It can dissipate up to 88 W safely, making it suitable for medium power industrial circuits.
The device operates reliably over a wide temperature range from -55°C to 175°C, enabling deployment in demanding environments including automotive, industrial automation, and consumer electronics. The typical gate charge is 46 nC at Vgs, supporting swift switching applications. Its compact TO-220AB package allows easy through-hole mounting for robust mechanical connection.
Additional features include a maximum gate-source voltage of ±20 V and a forward voltage drop of 1.6 V, contributing to efficient power management and low thermal stress. Vishay assures product quality and environmental compliance with RoHS certification.
Maximum continuous drain current: 30 A. Maximum drain-source voltage: 60 V. On-resistance Rds(on): 0.05 Ω. Maximum power dissipation: 88 W. Operating temperature range: -55°C to 175°C. Gate charge typical: 46 nC. Package: TO-220AB, 3 pins.
Gate-source voltage: ±20 V. Forward voltage: 1.6 V. RoHS compliant.
This MOSFET is ideal for applications in industrial power supplies, motor control, DC-DC converters, and switching regulators. Its robust electrical and thermal specifications ensure dependable performance in commercial and industrial electronic systems. Explore more Vishay electronic components on EnvMart for advanced semiconductor solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current of this MOSFET is 30 A, suitable for heavy load handling.
This model has a maximum drain-source voltage rating of 60 V, making it suitable for medium voltage circuits.
The on-resistance of this MOSFET is 0.05 Ω, which helps minimize conduction losses during operation.
It can safely dissipate up to 88 W, ensuring reliable thermal performance.
The operating temperature range is from -55°C to 175°C, allowing use in harsh environments.
The typical gate charge is 46 nC at Vgs, which supports fast switching applications.
This model comes in a TO-220AB package, which features three pins for standard through-hole mounting.
The maximum gate-source voltage for this device is ±20 V, contributing to efficient power management.
The forward voltage drop is 1.6 V, which aids in low thermal stress during operation.
The dimensions of this model are 10.41 mm in length, 4.7 mm in width, and 9.01 mm in height.
Yes, this MOSFET is RoHS compliant, ensuring environmental safety and regulatory conformity.
It is suitable for applications in industrial power supplies, motor control, DC-DC converters, and switching regulators.
