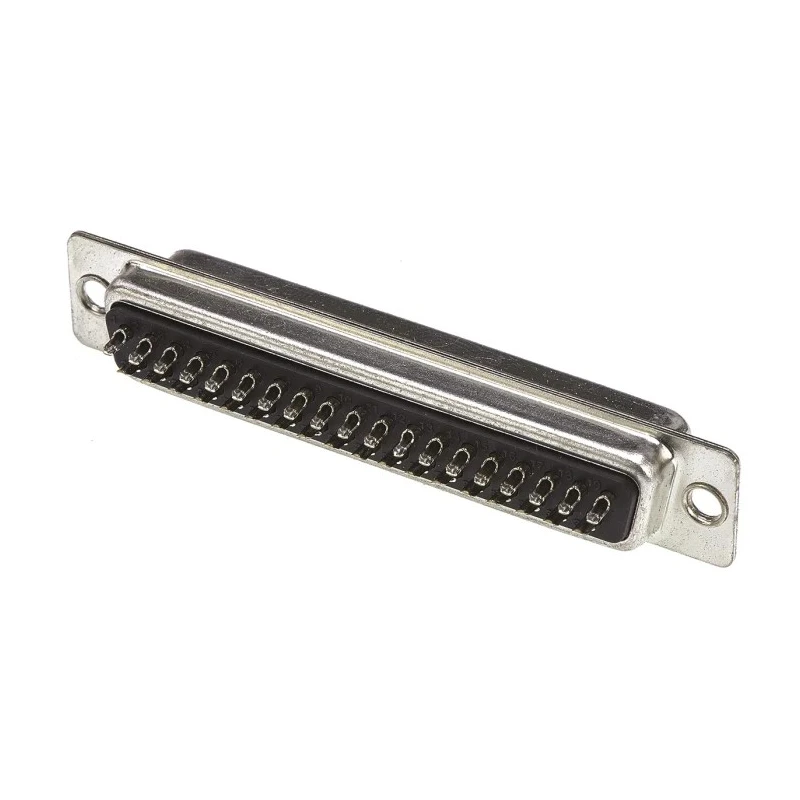

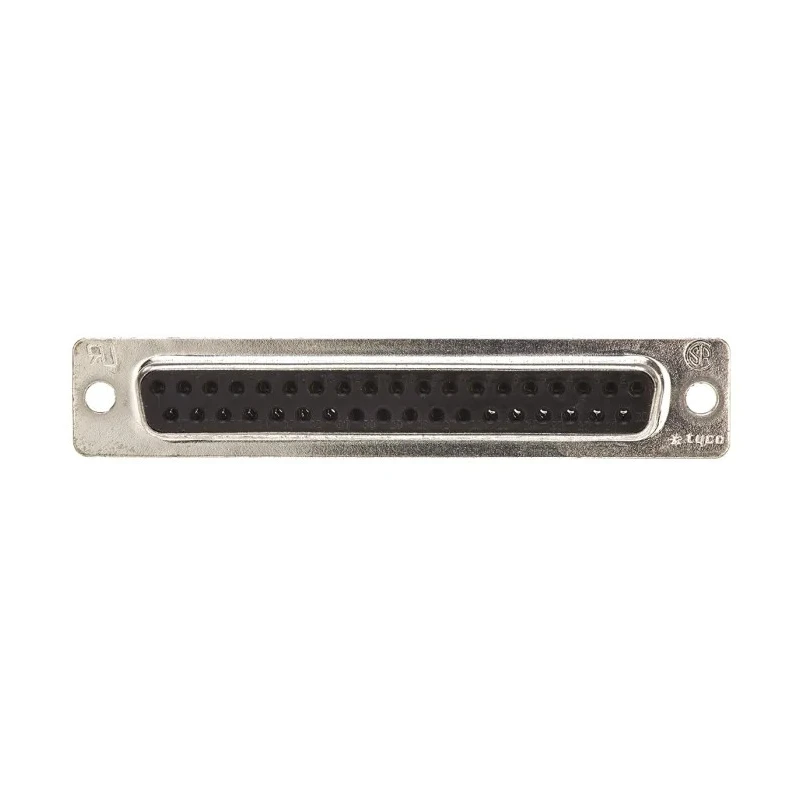

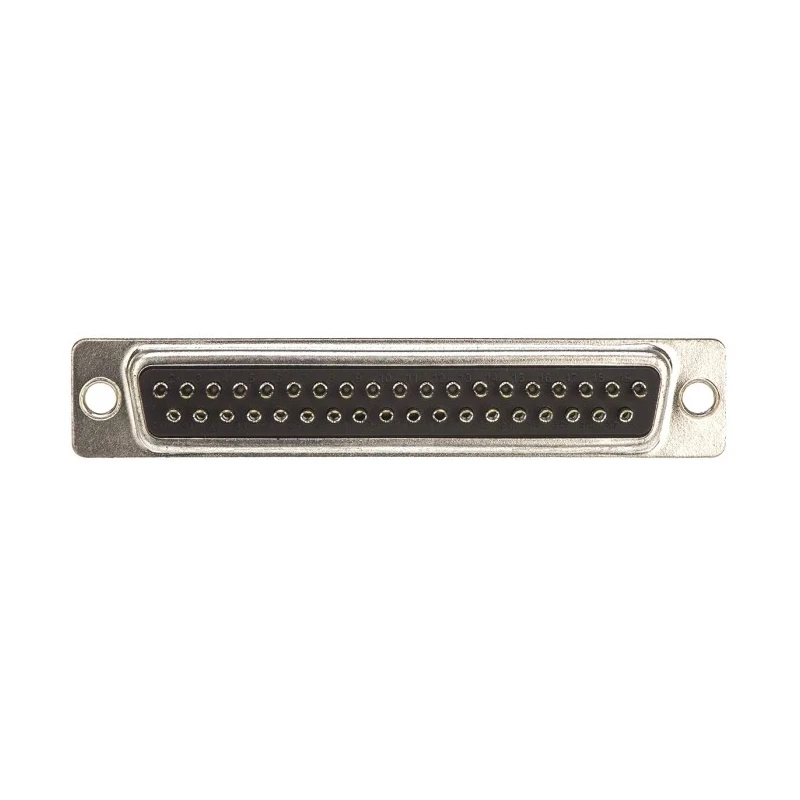

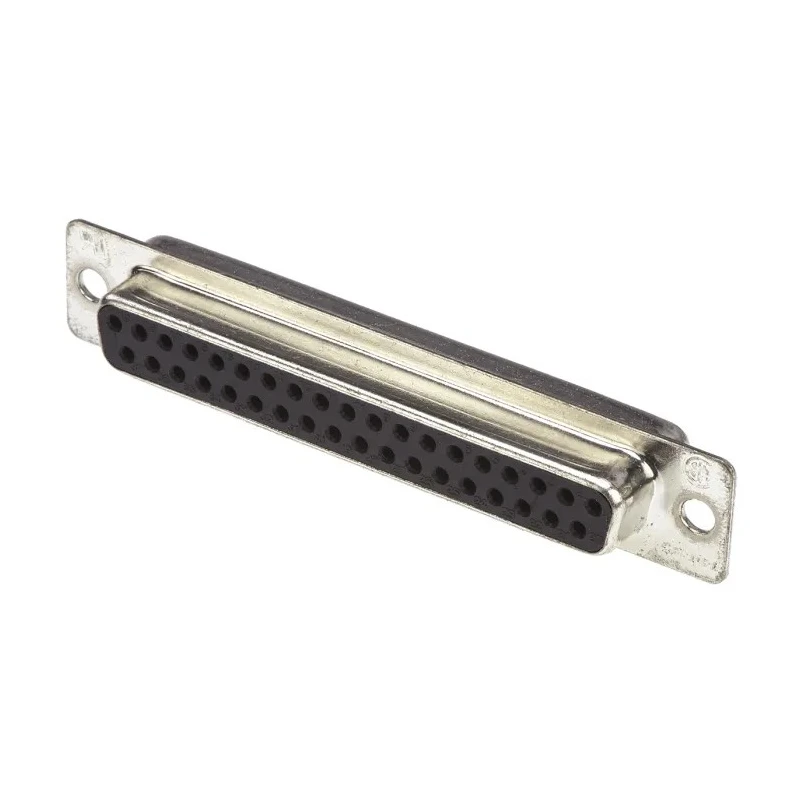

TE Connectivity AMPLIMITE HD-20 37 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector Female 5-747917-2

TE Connectivity 5-747917-2 is an AMPLIMITE HD-20 series 37 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector Female, engineered for secure and efficient electrical connections in industrial and electronic applications. This connector is built for high reliability in communication, data interfaces, and electronic equipment where density and shielding are critical.

The connector features a robust steel housing providing excellent mechanical strength and EMI shielding, coupled with a 94V-0 black thermoplastic insert that offers flame retardant properties. The phosphor bronze contacts with gold over nickel plating ensure superior conductivity and resistance to corrosion, supporting currents up to 3A and voltages up to 250V.

Designed for panel mounting with a straight orientation, this D-Sub Connector has solder-type terminations, enabling strong and reliable wire connections. Its operating temperature range of -55°C to 105°C makes it suitable for demanding environments and various industrial applications.

These AMPLIMITE connectors provide 65% higher density compared to standard HD-20 connectors, enabling space-saving designs. The shields offer full EMI shielding and ESD insulation, reducing interference and enhancing signal integrity for sensitive electronics.

The connector is compatible with other HD-20 series products (HDE, HDF, HDP), facilitating system modularity. Full accessory support including backshells, cable clamps, crimp contacts, and locking mechanisms allows flexible installation and secure mating.

Supports 37 contacts with a 2.77 mm pitch for compact connection layouts. Steel housing ensures durable mechanical protection and EMI shielding. Phosphor bronze contacts plated with gold over nickel resist corrosion and provide reliable conductivity.

Rated for 3A current and 250V voltage to meet demanding electrical specifications. Straight orientation and panel mount form factor for universal mounting options. Solder termination allows secure and stable cable connections.

Wide operating temperature range from -55°C to 105°C suits industrial environments. Includes flame retardant 94V-0 black thermoplastic insert for safety. Compatible with HD-20 series connectors for easy system integration.

Comprehensive accessory options available for customized configurations.

This connector is ideal for industrial, communication, and data interface applications requiring compact, high-density, and high-performance connections. Explore the full range of TE Connectivity AMPLIMITE connectors and accessories on EnvMart for your electronic component needs.
