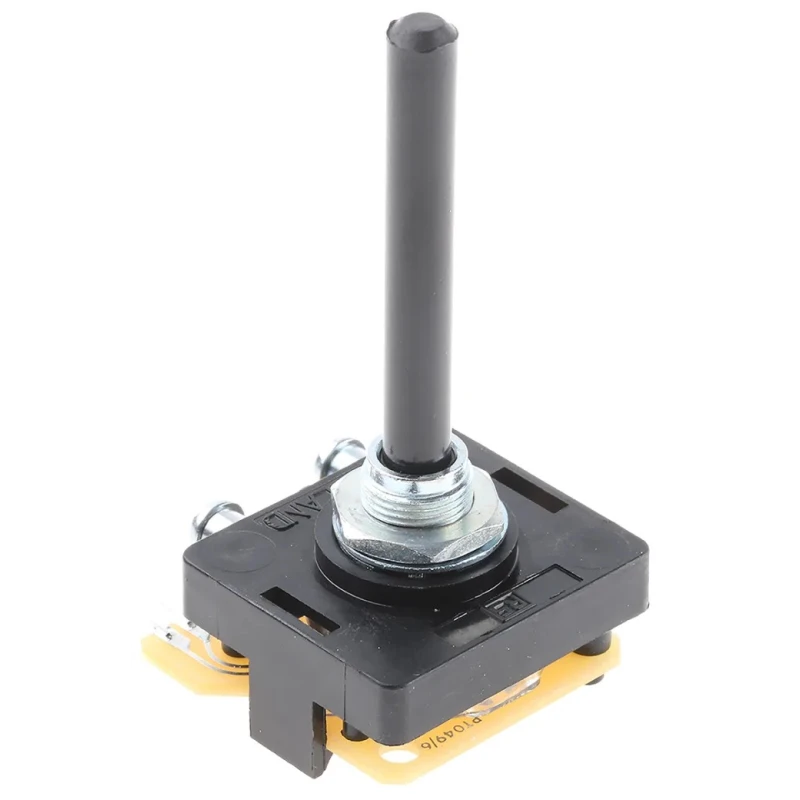

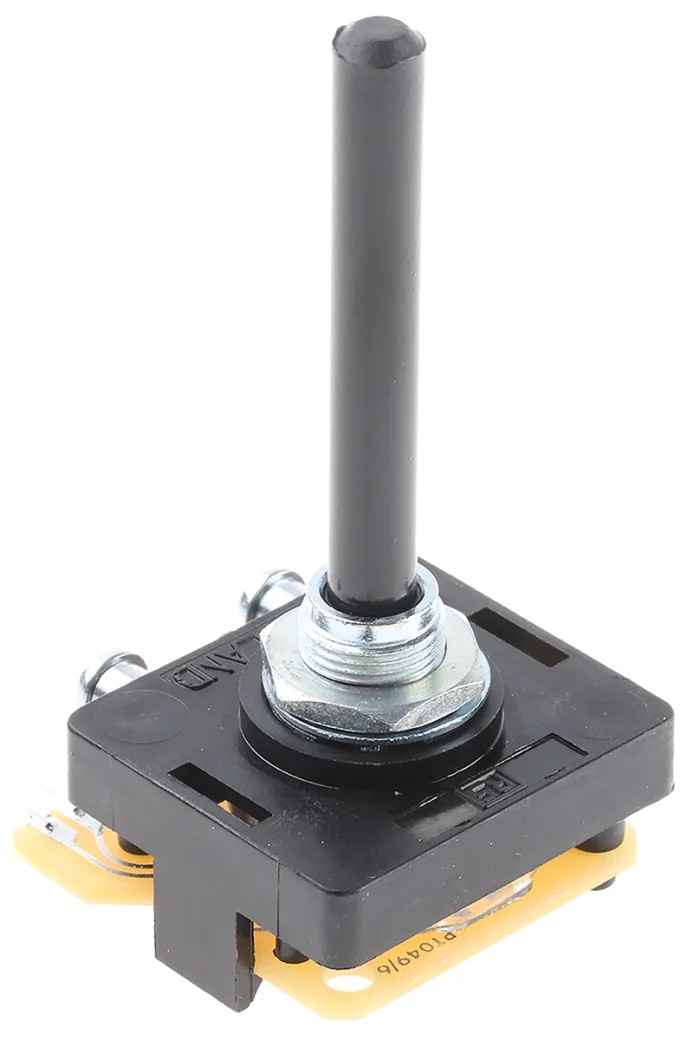

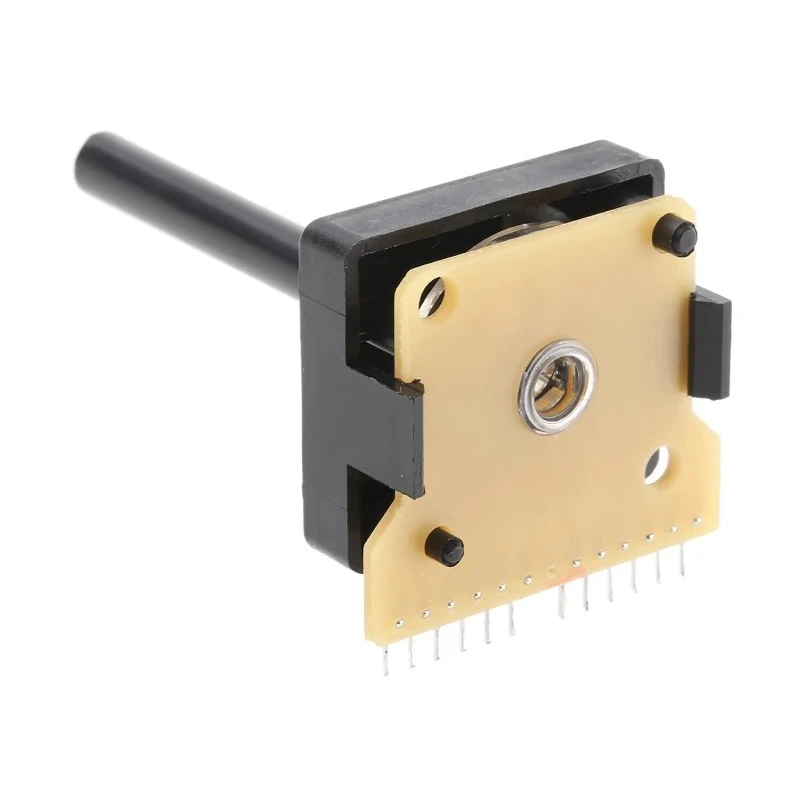

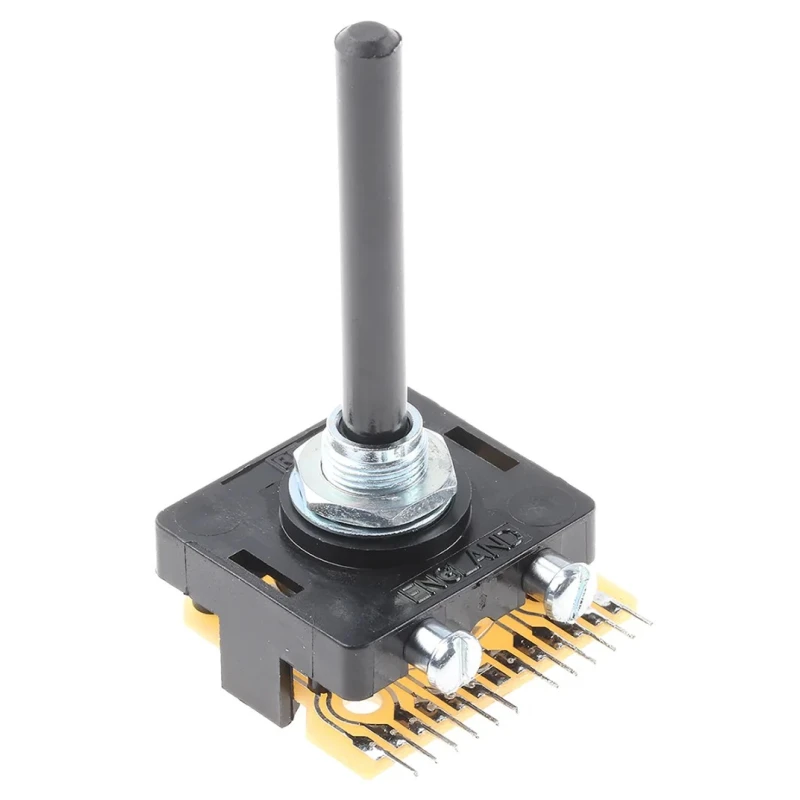

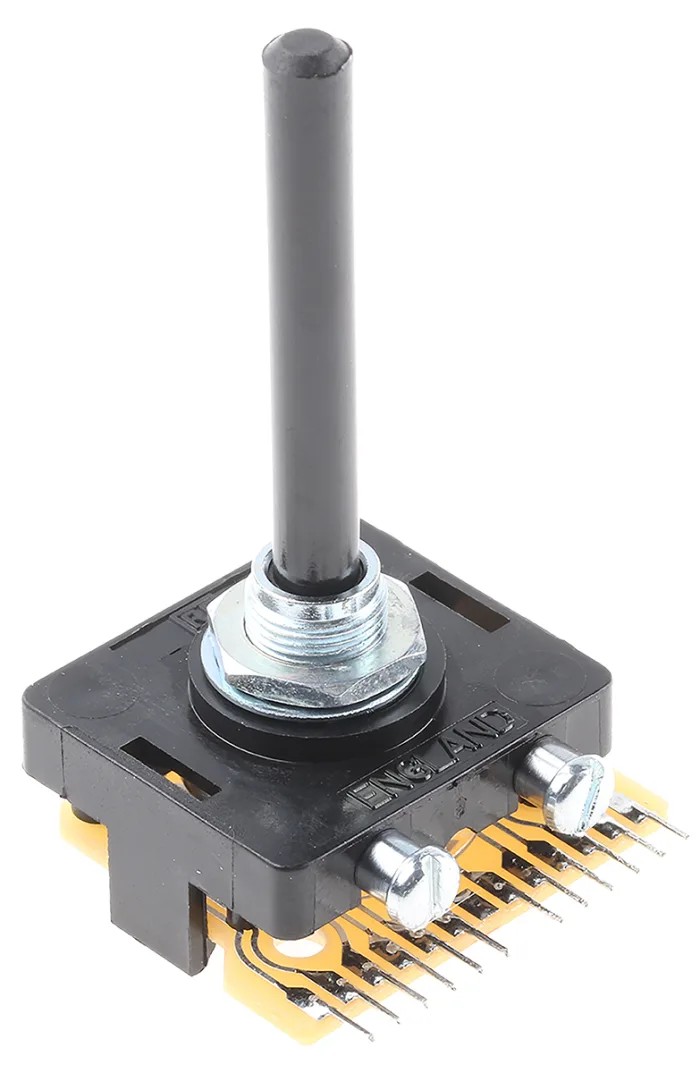

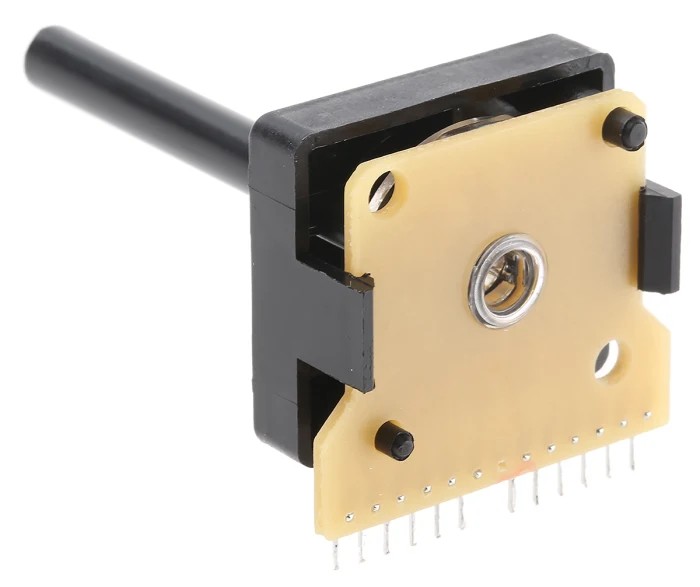

Lorlin 5 Position SPST Rotary Switch, 500mA, Solder Mount, Polyethylene Terephthalate Housing PT6534

Lorlin PT6534 5 Position SPST Rotary Switch is a high-quality rotary switch designed for PCB mounting applications. It features a single pole single throw (SPST) contact configuration with a contact current of 500mA, making it suitable for low-current industrial and electronic switching tasks.

The switch housing is made of polyethylene terephthalate, providing mechanical resilience and electrical insulation, with dimensions including a width of 35.25mm, depth of 16.65mm, height of 31.4mm, and a diameter of 14mm. It operates under a maximum AC voltage of 250V and supports operating temperatures ranging from -30°C to 85°C.

PT6534 has 5 selectable positions with an angle of throw of 36 degrees for precise control. It is equipped with break-before-make wafers preventing short circuits between positions. The drive shaft diameter is 6mm, and terminal connections are of solder type for secure attachment to PCBs.

This rotary switch boasts a mechanical life of 10,000 operations ensuring durability in repeated switching scenarios. Its non-illuminated design suits a wide range of electrical, automation, and control applications in industrial and laboratory environments. The device complies with RoHS environmental standards.

5 positions with SPST contact configuration rated at 500mA current. Polyethylene terephthalate housing ensures robust insulation and long service life. Operating temperature range from -30°C to 85°C for versatility in harsh conditions.

Solder terminal type enables firm PCB mounting with 2.54mm pitch terminal spacing. Mechanical life rated at 10,000 operations for reliability in frequent switching. 6mm shaft diameter with non-interchangeable drive wafer for secure operation.

Break-before-make wafer design prevents electrical shorts between contacts. Maximum AC voltage rating of 250V supports varied electrical loads. Manufactured in the United Kingdom, adhering to quality standards.

This Lorlin Rotary Switch is ideal for industrial automation systems, electronic control panels, instrumentation, and other electrical switching applications requiring precise and reliable multi-position selection. Browse other precision switches and components in the Electronics & Electricals category at EnvMart.
