Nexperia 1, 3.3 V Zener Diode Single 365 mW 5% Surface Mount DFN1006BD-2 BZX8850S-C3V3-QYL

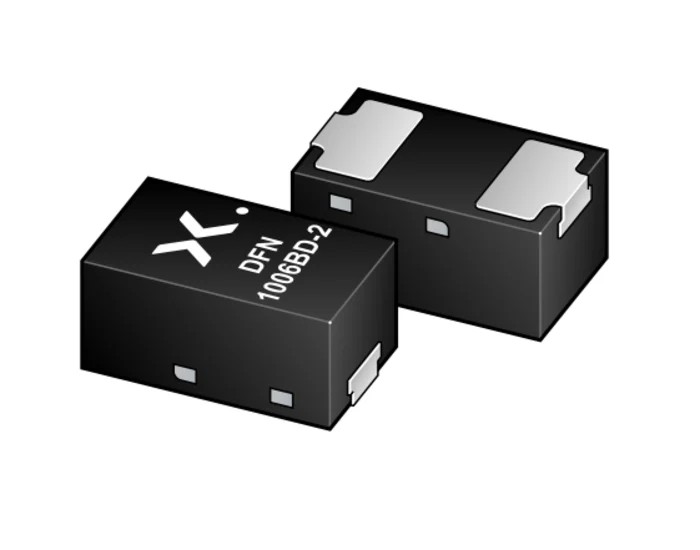

Nexperia BZX8850S-C3V3-QYL is a single element Zener diode designed for voltage regulation applications, providing a nominal Zener voltage of 3.3 V with ±5% tolerance and a power dissipation capability of 365 mW. Packaged in a compact DFN1006BD-2 surface mount device measuring 1 mm by 0.47 mm, this Zener diode is optimized for low current and low bias applications, especially suitable for battery-powered and portable electronics. It features a test current of 50 μA and a maximum reverse leakage current of 7.5 μA, ensuring efficient and stable voltage regulation.

This diode operates reliably over a wide temperature range from -55°C to 150°C and complies with the automotive AEC-Q101 standard, making it suitable for automotive industry applications. The typical voltage temperature coefficient is -3.5 mV/K, compensating for voltage variations with temperature changes. The maximum Zener impedance is 600 Ω at the test current, providing consistent voltage regulation performance.

The BZX8850S series Zener diode is convenient for surface mount technology, allowing for high-density board designs in electronics manufacturing. Its low power dissipation and small package size make it ideal for use in portable and battery-operated equipment where space and power constraints are critical.

Applications include industrial electronics, consumer electronics, automotive electronics, and general purpose voltage regulation in electronic circuits. The diode’s ultra-small plastic package with side-wettable flanks facilitates automated assembly processes.

Single element Zener diode for voltage regulation. Nominal Zener voltage 3.3 V with ±5% tolerance. Surface mount package DFN1006BD-2 measuring 1 mm length and 0.47 mm height. Maximum power dissipation 365 mW suitable for low power circuits.

Test current of 50 μA ideal for low bias applications. Automotive standard AEC-Q101 compliance ensures reliability. Operates within -55°C to 150°C temperature range. Low reverse leakage current for efficient operation. Typical voltage temperature coefficient -3.5 mV/K for stable regulation.

Compact size supports high-density PCB layouts. Explore a wide selection of Nexperia semiconductor products and other electronic components at EnvMart for your industrial, automotive, and consumer electronics designs.
