Nexperia 1 2-Input OR Logic Gate, 5-Pin TSSOP, CMOS, Low-Voltage LVC Family, Operating Voltage 1.65 to 5.5 74LVC1G32GW,125

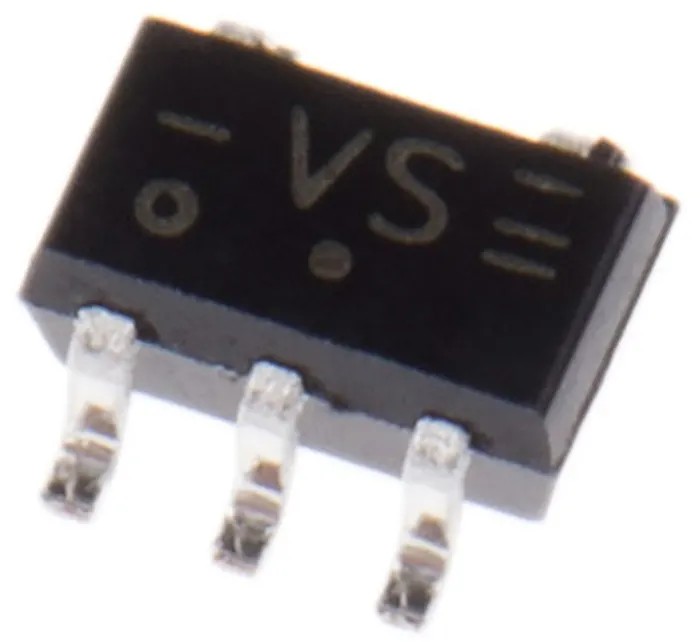

Nexperia 74LVC1G32GW,125 is a high-performance 1 2-Input OR Logic Gate IC designed for various electronic and semiconductor applications. This logic gate is part of the LVC low-voltage CMOS family and operates from 1.65 V to 5.5 V, supporting a broad voltage range for versatile circuit design.

Encased in a compact 5-pin TSSOP surface-mount package with physical dimensions of 2.25 mm length and 1 mm height, it offers space-saving integration on PCBs. The device features a maximum propagation delay time of 5.5 ns at typical load conditions, enabling fast digital logic operation with minimal latency.

Operating temperature ranges from -40°C to 125°C, making it suitable for industrial and commercial environments requiring robust thermal tolerance.

Input is CMOS type with compatibility for LVTTL and TTL inputs, while output utilizes LVCMOS logic levels. It provides a high-level output current up to -32 mA and a low-level output current of 32 mA, ideal for driving various loads.

This product is widely used in electronic circuit designs for applications in industrial control, automotive electronics, digital signal processing, and semiconductor manufacturing.

Single gate OR logic function with 2 inputs. Surface mount TSSOP package with 5 pins for easy PCB assembly. Wide operating voltage range from 1.65 to 5.5 V for diverse circuit compatibility. High-speed operation with 5.5 ns maximum propagation delay.

Robust performance in extended operating temperature conditions. Compatible with LVTTL/TTL inputs and LVCMOS outputs. Compact dimensions supporting miniaturized electronic designs. Low power consumption and high noise immunity inherent to CMOS technology.

Set yourself up for success in designing reliable and efficient electronic systems by incorporating the Nexperia 74LVC1G32GW,125 logic gate into your projects. Explore more semiconductor components and Logic Gates in EnvMart's Electronics & Electricals category for diverse industry needs.
