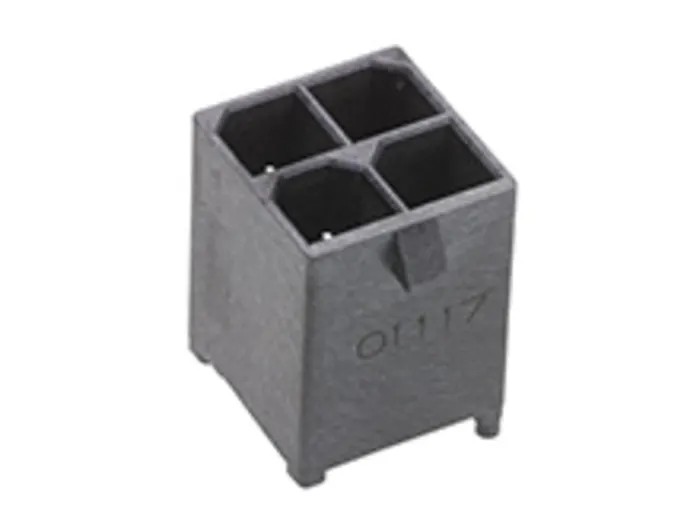

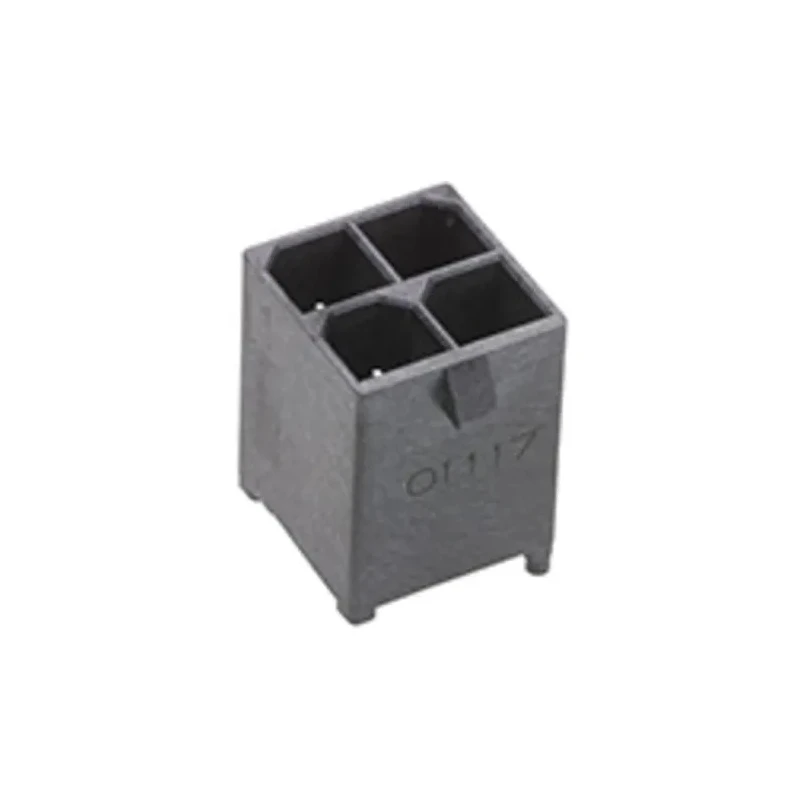

Molex Mega-Fit Series Straight Through Hole PCB Header, 4 Contact(s), 5.7 mm Pitch, 2 Row, Shrouded 76829-0104

Free Delivery in India | Lowest Global Shipping Charges

Molex Mega-Fit Series Straight Through Hole PCB Header, 4 Contact(s), 5.7 mm Pitch, 2 Row, Shrouded 76829-0104

Name: Molex Mega-Fit Series Straight Through Hole PCB Header, 4 Contact(s), 5.7 mm Pitch, 2 Row, Shrouded 76829-0104
Brand: Molex
SKU: 217583
Price: 2.75 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	China
Voltage	600V
Brand	Molex
Orientation	Straight
Current	23A
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Copper Alloy
Series	Mega-Fit
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	5.7mm
Contact Plating	Tin
Number of Contacts	4
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.73mm

Key Features

Features 4 contacts arranged in 2 rows with 5.7 mm pitch.
Made from liquid crystal polymer housing for durability.
Shrouded design protects contacts and ensures secure mating.
Through-hole mount type for stable PCB connection.
Male contact gender with 3.73 mm tail pin length.
Contact material is copper alloy with tin plating.
Operating temperature range from -40°C to 105°C.
Suitable for power distribution, industrial machinery, and communication equipment.

Product Description

Molex 76829-0104 Mega-Fit Series PCB Header is a robust straight through hole connector designed for wire-to-board applications. It features 4 contacts spaced at 5.7 mm pitch in a 2-row arrangement, ensuring secure and efficient electrical connections.

Constructed with a durable liquid crystal polymer housing, this shrouded PCB header offers excellent protection for the contacts, minimizing the risk of damage during handling and mating processes. The copper alloy contacts plated with tin provide reliable conductivity and corrosion resistance.

The connector supports a maximum current of 23A and can withstand voltages up to 600V, making it ideal for power distribution in a range of industrial, commercial, and telecommunication devices. The male contacts have a tail pin length of 3.73 mm, facilitating through-hole solder mounting on PCBs for enhanced mechanical stability.

Operating efficiently across a wide temperature range from -40°C to 105°C, this PCB header is compatible with applications including home appliances, HVAC systems, industrial machinery, lighting and automation, and commercial vehicle electronics. Its shrouded design assures proper mating and reduces misconnection risks.

Features 4 contacts arranged in 2 rows with 5.7 mm pitch. Made from liquid crystal polymer housing for durability. Shrouded contacts protect against environmental damage. Through-hole mounting ensures strong and reliable PCB connection.

Copper alloy contacts with tin plating for enhanced conductivity. Supports 23A current and 600V voltage rating. Operates in temperature range from -40°C to 105°C. Suitable for applications in industrial machinery, telecommunications, and power supplies.

This Molex Mega-Fit PCB Header 76829-0104 represents a high-quality solution for demanding electronic assembly tasks. Browse the Electronics & Electricals category on EnvMart for a diverse selection of PCB connectors and components.
