Samtec SS5 Series Straight Surface PCB Socket 40-Contact 2 Row 0.5 mm Pitch Solder SS5-20-3.50-L-D-K-TR

Free Delivery in India | Lowest Global Shipping Charges

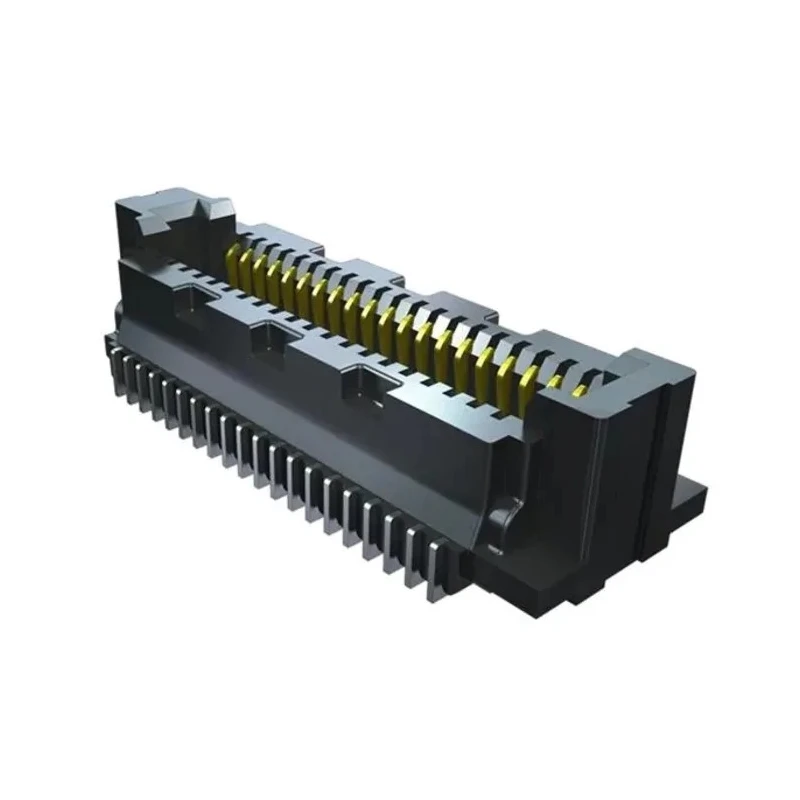

Samtec SS5 Series Straight Surface PCB Socket 40-Contact 2 Row 0.5 mm Pitch Solder SS5-20-3.50-L-D-K-TR

Name: Samtec SS5 Series Straight Surface PCB Socket 40-Contact 2 Row 0.5 mm Pitch Solder SS5-20-3.50-L-D-K-TR
Brand: Samtec
SKU: 111821
Price: 3.92 USD
Availability: InStock



Category PCB Sockets Brand Samtec Condition New

Specifications

Country of Origin	India
Brand	Samtec
Orientation	Straight
Current	1.6A
Model	SS5-20-3.50-L-D-K-TR
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	SS5
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Micro Blade and Beam Socket
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.5mm
Contact Plating	Gold
Number of Contacts	40
Contact Gender	Female
Connector System	Board-to-Board
Stacking Height	4mm
Row Pitch	1.41mm

Key Features

The socket features a low-profile micro blade and beam design.
Housing is made of Liquid Crystal Polymer for durability.
Current rating is 1.6A ensuring reliable electrical performance.
Contact material is phosphor bronze with gold plating for corrosion resistance.
Solder termination type ensures secure mounting on PCB.
Stacking height of 4 mm suitable for compact electronic assemblies.
Operating temperature ranges from -55°C to 125°C.
Connector system is board-to-board with straight orientation.

Product Description

Samtec SS5-20-3.50-L-D-K-TR Straight Surface PCB Socket is a high-precision electronic component designed for board-to-board connectivity in industrial and commercial electronic applications. Featuring 40 female contacts arranged in two rows with a 0.5 mm pitch, this socket ensures reliable and compact connections in devices requiring miniaturized interconnect solutions.

The socket housing is fabricated from durable Liquid Crystal Polymer, providing excellent mechanical strength and stability under various environmental conditions. Its micro blade and beam contact design, made of phosphor bronze with selective gold plating, offers improved conductivity and corrosion resistance, critical for maintaining signal integrity in demanding PCB assemblies.

Rated for a current of 1.6A and capable of operating across a wide temperature range from -55°C to 125°C, the SS5 series socket is suitable for applications in industrial electronics, telecommunications, and manufacturing equipment. The straight orientation and 4 mm stacking height facilitate easy integration into compact electronic modules.

Additional features include a 1.41 mm row pitch for precise layout and solder termination type for a robust and permanent PCB attachment. The product is supplied in tape and reel packaging to support automated pick-and-place manufacturing processes.

This component is part of the SS5 series by Samtec, well-regarded for reliability and performance in surface mount PCB sockets. The socket unit includes 40 contacts arranged in two rows, providing reliable connections. Housing made of Liquid Crystal Polymer supports long-term durability.

Gold plating on contacts enhances corrosion resistance and conductivity. Supports operating temperatures from -55°C to 125°C for versatile application. Designed for surface mount technology with solder termination. Offers a stacking height of 4 mm to minimize assembly height.

Current carrying capacity of 1.6A suits moderate power applications. Explore more high-quality PCB Sockets and connectors in the Electronics Components category at EnvMart for your manufacturing and industrial needs.
