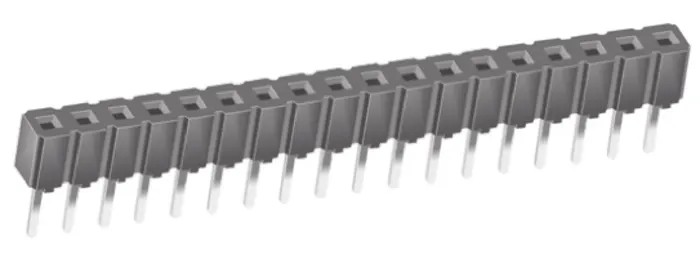

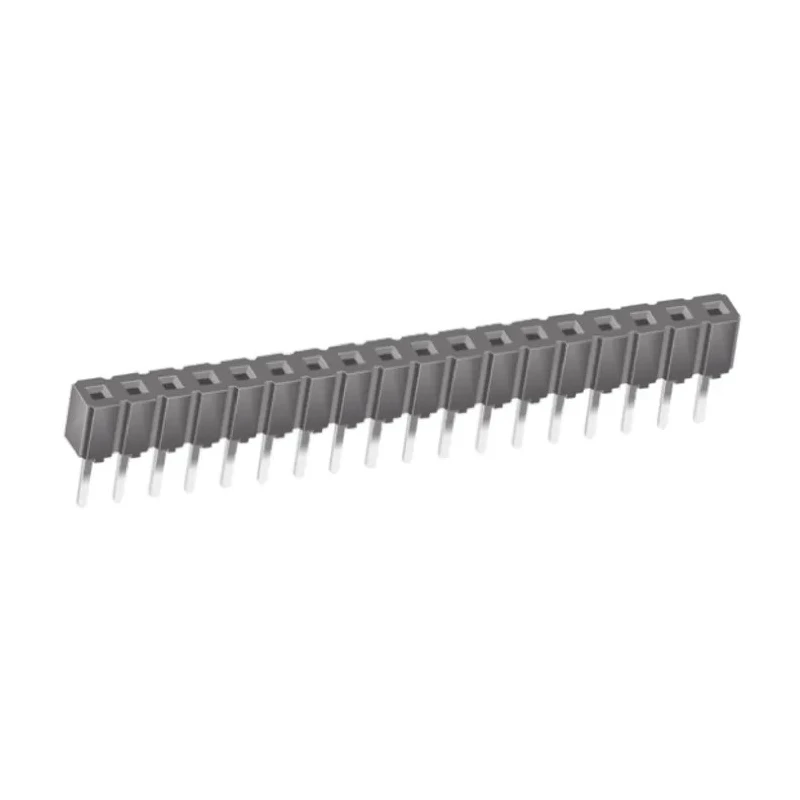

Samtec CES Series Straight Through Hole PCB Socket, 18-Contact, 1 Row, 2.54 mm Pitch, Solder Termination CES-118-01-T-S

Free Delivery in India | Lowest Global Shipping Charges

Samtec CES Series Straight Through Hole PCB Socket, 18-Contact, 1 Row, 2.54 mm Pitch, Solder Termination CES-118-01-T-S

Name: Samtec CES Series Straight Through Hole PCB Socket, 18-Contact, 1 Row, 2.54 mm Pitch, Solder Termination CES-118-01-T-S
Brand: Samtec
SKU: 105206
Price: 2.51 USD
Availability: InStock



Category PCB Sockets Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	333V
Brand	Samtec
Orientation	Straight
Current	12A
Model	CES-118-01-T-S
Mount Type	Through Hole
Housing Material	Black Glass Filled Polyester
Contact Material	Bronze
Series	CES
Termination Type	Solder
Maximum Operating Temperature	105°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2.54mm
Standards/Approvals	RoHS
Contact Plating	Tin
Number of Contacts	18
Connector System	Board-to-Board
TLW series low profile square post headers	see stock number 765-6168 typically
TSM series square post headers	see stock number 765-6613 typically
TSW series square post headers	see stock number 767-1044 typically

Key Features

This PCB socket supports a maximum current of 12A for reliable electrical performance.
Constructed with black glass filled polyester housing ensuring durability and high-temperature resistance.
Contact material is bronze with matte tin plating for excellent conductivity and corrosion resistance.
Mount type is through hole with a straight orientation, optimizing PCB board-to-board connections.
Operating temperature range extends from -55° to +105°C suitable for diverse industrial applications.
Part of the CES series known for low profile closed entry socket strips with a 3.25 mm solder tail length.

Product Description

Samtec CES-118-01-T-S is a high-quality straight through hole PCB socket designed to provide stable, board-to-board connections with 18 contacts arranged in a single row. It features a 2.54 mm pitch optimized for standard PCB layouts. The socket employs a black glass filled polyester housing that delivers robust mechanical strength and resists thermal deformation across a wide temperature range from -55°C to 105°C.

The contact pins are made of bronze and finished with matte tin plating, offering excellent electrical conductivity and long-term reliability. This component is designed to handle currents up to 12 amperes and voltages up to 333 volts, making it suitable for various electronic and industrial equipment requiring dependable connectors.

The socket utilizes through-hole mounting with a solder termination style, providing firm and secure solder joints. Its straight orientation is ideal for board-to-board connections in compact electronic assemblies and instrumentation.

Samtec CES series socket strips are low profile with a solder tail length of 3.25 mm, facilitating efficient assembly and manufacturing processes. The CES-118-01-T-S socket is compatible with TLW, TSM, and TSW series square post headers, enabling flexible system configurations.

This product complies with RoHS standards ensuring environmental and safety adherence. The 2.54 mm pitch closed entry design minimizes debris ingress, enhancing connector durability. Ideal for applications in electronic components manufacturing, power & connectors sectors, and PCB assemblies.

Suitable for industrial, laboratory, manufacturing, and commercial electronic applications.

Discover a wide range of PCB Sockets and connectors at EnvMart for your electronic component needs. Enhance your assemblies with trusted brands and reliable parts engineered for durability and performance.
