Samtec CES Series Straight Through Hole PCB Socket 12-Contact 2 Row 2.54 mm Pitch Solder CES-106-01-T-D

Free Delivery in India | Lowest Global Shipping Charges

Samtec CES Series Straight Through Hole PCB Socket 12-Contact 2 Row 2.54 mm Pitch Solder CES-106-01-T-D

Name: Samtec CES Series Straight Through Hole PCB Socket 12-Contact 2 Row 2.54 mm Pitch Solder CES-106-01-T-D
Brand: Samtec
SKU: 105202
Price: 1.41 USD
Availability: InStock



Category PCB Sockets Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	333V
Brand	Samtec
Orientation	Straight
Current	12A
Model	CES-106-01-T-D
Mount Type	Through Hole
Housing Material	Black Glass Filled Polyester
Contact Material	Bronze
Series	CES
Termination Type	Solder
Maximum Operating Temperature	105°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Standards/Approvals	RoHS
Contact Plating	Tin
Number of Contacts	12
Connector System	Board-to-Board
TLW series low profile square post headers	see stock number 765-6168 typically
TSM series square post headers	see stock number 765-6613 typically
TSW series square post headers	see stock number 767-1044 typically

Key Features

Constructed with black glass filled polyester housing for durability.
Phosphor bronze contacts with matte tin plating ensure excellent conductivity.
Supports a current rating of 12A and voltage rating of 333V.
Temperature range from -55°C to 105°C suitable for harsh environments.
Through hole mount type with straight orientation for stable connections.
Complies with RoHS standards for environmental safety.
Suitable for board-to-board connector systems in industrial electronics.
Mates typically with TLW, TSM, and TSW series headers for versatile use.

Product Description

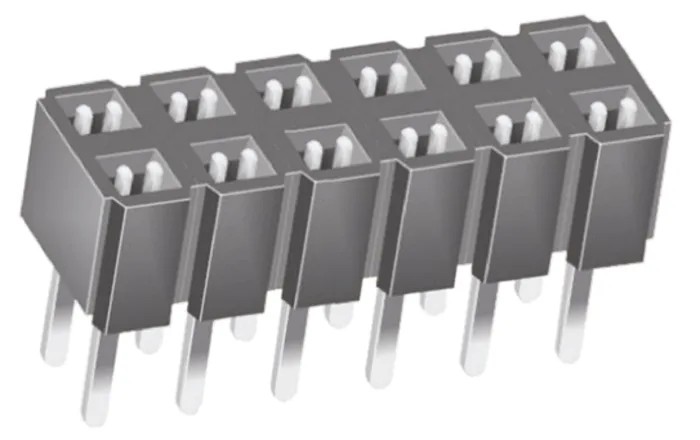

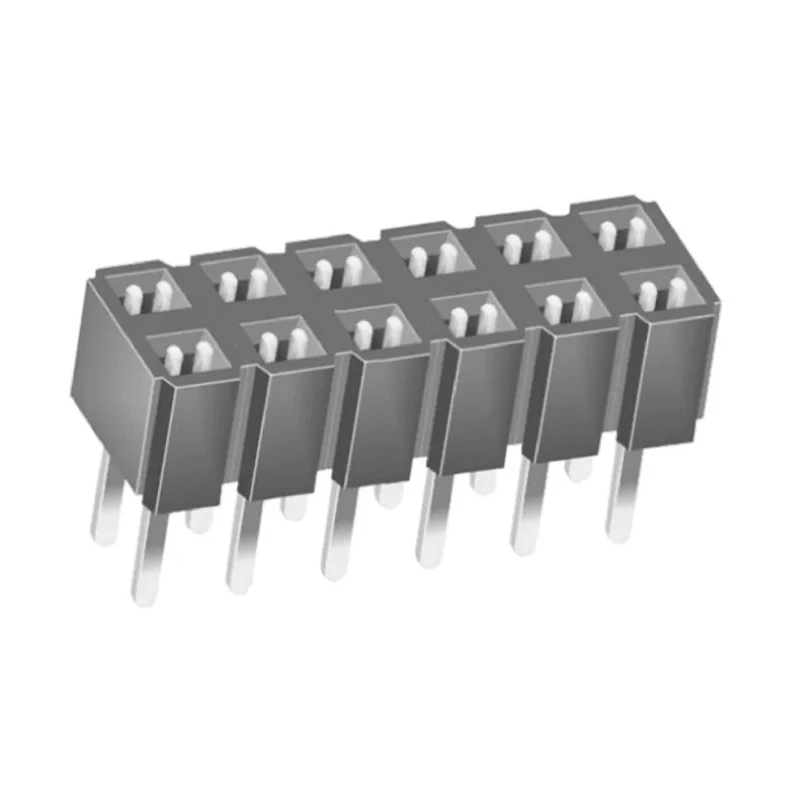

Samtec CES Series Straight Through Hole PCB Socket model CES-106-01-T-D features a 12-contact, 2-row layout with a 2.54 mm pitch solder termination, engineered for reliable board-to-board connectivity. The socket's black glass filled polyester housing offers mechanical strength and resistance to thermal stress, while the phosphor bronze contacts with matte tin plating provide excellent signal integrity and corrosion resistance.

Designed for industrial, electronic manufacturing and test environments, the socket supports a current rating of 12A and voltage up to 333V, making it suitable for multiple electronic applications requiring robust power and signal connections. Operating temperature ranges from -55°C to +105°C enhance its suitability for harsh conditions where thermal stability is critical.

The through-hole mounting with straight orientation establishes a solid connection to printed circuit boards with minimal mechanical stress. This low profile socket, with a solder tail length of 3.25mm, optimizes assembly space while maintaining performance.

The CES series sockets meet RoHS standards ensuring compliance with environmental regulations, making them ideal for modern electronics manufacturing.

These sockets are compatible and typically mated with TLW series low profile square post headers, TSM series square post headers, and TSW series square post headers, providing flexibility in electronic board design and assembly.

Durable black glass filled polyester housing enhances mechanical robustness. Phosphor bronze contact material with tin plating for superior electrical performance. High current and voltage ratings for demanding applications.

Wide operating temperature range from -55°C to 105°C for versatility. Through-hole mount with straight orientation ensures stable PCB connections. RoHS compliant for environmentally conscious manufacturing. Compatible with multiple header series for flexible integration.

Low profile design supports space-saving PCB layouts.

This Samtec CES series PCB socket is well-suited for industrial electronic equipment, manufacturing, HPC systems, telecommunications, and other commercial or laboratory electronic board assemblies requiring reliable and durable PCB interconnects.

Explore more high-quality PCB connectors and components at EnvMart for your specialized electronic assembly needs.

Explore more products in our PCB Sockets category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business
