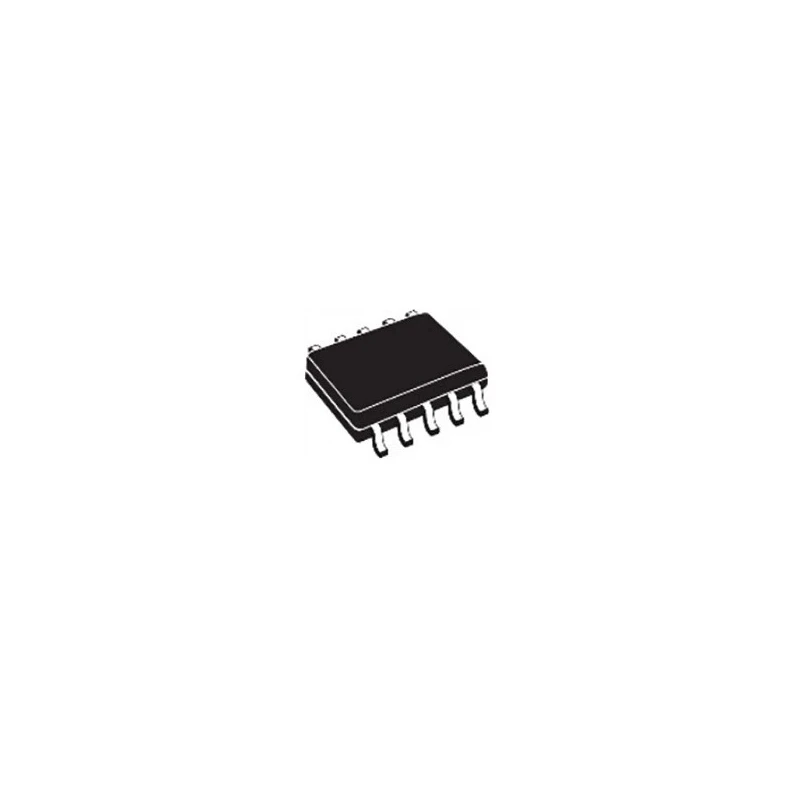

STMicroelectronics High Voltage Switcher 504 mA 10-Pin SSOP 12W 30V Flyback Converter VIPER114HSTR
Specifications
| Country of Origin | China |
|---|---|
| Brand | STMicroelectronics |
| Height | 5mm |
| Length | 5mm |
| Model | VIPER114HSTR |
| Width | 6.2mm |
| Output Power | 12W |
| Mount Type | Surface |
| Maximum Duty Cycle | 80% |
| Series | VIPER11 |
| Topology | Flyback |
| Maximum Operating Temperature | 150°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Switching Frequency | 60kHz |
| Maximum Input Voltage | 30V |
| Maximum Output Current | 504mA |
| Minimum Input Voltage | 4.5V |
| Pin Count | 10 |
| Supply Current | 1.25mA |
Key Features
- Maximum input voltage of 30V and output power of 12W ensure efficient flyback conversion.
- Operates with a switching frequency of 60kHz for optimal performance.
- Supports input voltage range from 4.5V minimum to 30V maximum with pulse frequency modulation.
- Includes embedded thermal shutdown and built-in soft-start for enhanced reliability.
- Compact SSOP package measuring 5mm x 6.2mm x 5mm allows surface mounting.
- Supplies maximum output current of 504mA with 1.25mA supply current consumption.
- Designed for operation between -40°C to 150°C, suitable for harsh environments.
- Flyback topology supports buck, flyback, and buck-boost converter design.
Product Description
STMicroelectronics VIPER114HSTR is an advanced high voltage switcher designed for energy-efficient off-line power conversion. It integrates a robust 800 V avalanche-rugged power MOSFET with PWM current mode control, providing reliable performance in a compact 10-pin SSOP surface-mount package.
This device supports a maximum input voltage of 30V and delivers up to 12W output power with a maximum output current of 504mA. It operates at a switching frequency of 60kHz, optimizing efficiency and minimizing external component size. The integrated HV start-up, sense-FET, error amplifier, and oscillator with jitter allow the design of compact flyback power supplies.
Highlights include pulse-skip protection to prevent flux runaway, embedded thermal shutdown, and a built-in soft-start feature that improves system reliability and longevity. The device operates over a wide temperature range from -40°C to 150°C, making it suitable for demanding industrial and electronic power management applications.
The compact SSOP package with dimensions 5mm length, 6.2mm width, and 5mm height is ideal for surface mounting on printed circuit boards with minimal space footprint. The device meets rigorous energy-saving standards by operating with very low power consumption during light load conditions.
Typical applications include buck, flyback, and buck-boost converters in power supplies for industrial machines, electronic systems, and control instrumentation. The device’s integrated features reduce the external component count and simplify power supply designs.
Manufactured in China, the VIPER114HSTR combines high voltage capability with efficient power management for a variety of electronic and industrial uses. Maximum input voltage: 30V. Output power: 12W. Pin count: 10. Package type: SSOP.
Maximum output current: 504mA. Switching frequency: 60kHz. Operating temperature range: -40°C to 150°C. Topology: Flyback. Supply current: 1.25mA. Built-in thermal shutdown and soft-start. Explore the latest range of Power Management ICs and AC/DC converters from EnvMart to find the ideal solution for your next electronic design project.
