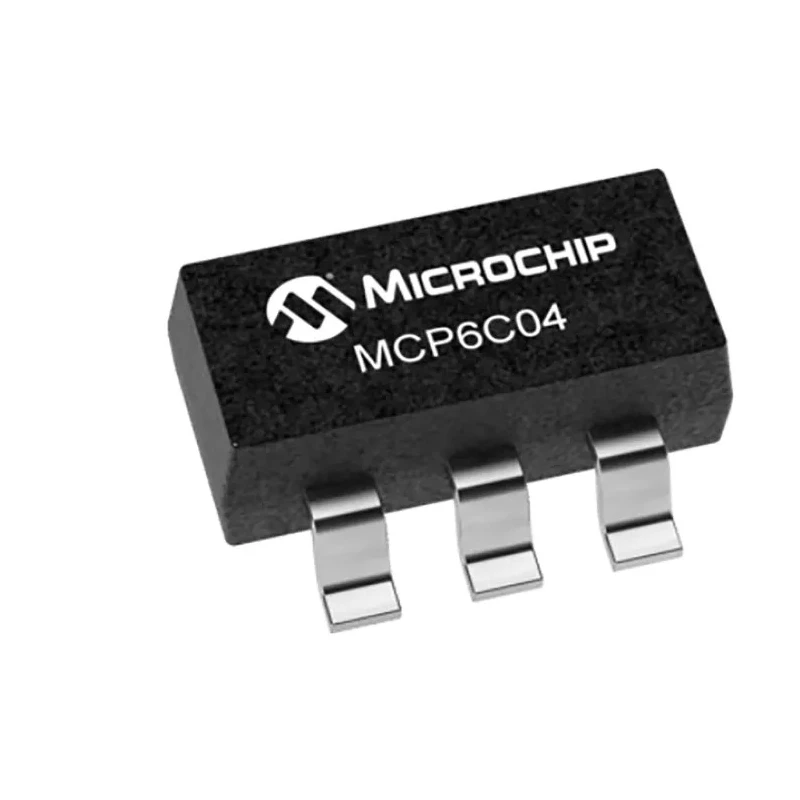

Microchip Operational Amplifier 500 kHz, 6-Pin SOT-23, 2V to 5.5V Supply MCP6C04T-020E/CHY
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.3mm |
| Length | 2.9mm |
| Model | MCP6C04T-020E/CHY |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | MCP6C04T |
| Output Current | 30mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 6 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2V |
| GBP - Gain Bandwidth Product | 500kHz |
| Input Bias Current | 240 μA |
| Specified input common-mode range | 3V to 52V |
| Fixed gain options | 20, 50, 100 V/V |
Key Features
- Features zero-drift architecture providing very low offset and offset drift.
- Operates over a wide input common-mode range from 3V to 52V.
- Available fixed gain options of 20, 50, and 100 V/V for flexible amplification.
- Suitable for bidirectional or unidirectional current sensing applications.
- Offers maximum input offset voltage less than 30 μV and offset drift under 180 nV/ºC.
- Bandwidth typically reaches 500 kHz enabling high-speed signal processing.
- Designed for industrial temperature ranges from -40°C to +125°C for robust performance.
- Compact 6-pin SOT-23 surface-mount package measuring 2.9mm x 1.6mm x 1.3mm.
Product Description
Microchip MCP6C04T-020E/CHY is a high-performance operational amplifier designed for current sensing and amplification tasks. It features a zero-drift architecture ensuring very low input offset voltage and minimal offset drift, improving accuracy in sensitive measurement environments.
The device supports a supply voltage range from 2V to 5.5V with an input common-mode voltage extending from 3V to 52V, making it highly versatile for varied power domains. Its preset fixed gain options of 20, 50, and 100 V/V provide adaptable gain settings for different application needs.
With a gain bandwidth product of 500 kHz, this operational amplifier enables high-speed processing and precise signal conditioning. The maximum input offset voltage is maintained below 30 μV, and offset drift stays under 180 nV/ºC across operating conditions.
The small 6-pin SOT-23 package (2.9 mm length, 1.6 mm width, 1.3 mm height) allows easy integration into compact PCBs using surface-mount technology. Offering up to 30mA output current capability, it is suitable for driving small actuators and interfaces in industrial control systems and motor management.
Operating across a temperature range from -40°C to +125°C, the MCP6C04T-020E/CHY is engineered to meet the demands of harsh industrial environments. Typical applications include actuator controls, industrial automation, power management systems, motor control, and battery monitoring/testing.
Zero-drift architecture for minimal offset and offset drift. Wide input common-mode voltage range from 3V to 52V. Fixed gain options: 20, 50, and 100 V/V. Bandwidth of 500 kHz for fast signal response. Surface-mount 6-pin SOT-23 package for compact mounting.
Output current up to 30mA for actuator and motor drive. Industrial temperature range from -40°C to +125°C. Ideal for industrial control, power management, and battery monitoring applications. Explore more Microchip semiconductor amplifiers and Operational Amplifier products on EnvMart for industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the MCP6C04T-020E/CHY is 500 kHz, enabling high-speed signal processing.
It operates over a supply voltage range from 2V to 5.5V.
The MCP6C04T-020E/CHY offers fixed gain options of 20, 50, and 100 V/V.
The specified input common-mode voltage range is from 3V to 52V.
It has an output current capability of up to 30mA, suitable for driving small actuators and interfaces.
The SOT-23 package measures 2.9mm in length, 1.6mm in width, and 1.3mm in height.
The maximum operating temperature is 125°C, allowing for use in harsh environments.
The minimum operating temperature is -40°C.
It is designed for surface mounting, specifically in a 6-pin SOT-23 package.
The input bias current is specified at 240 μA.
It is suitable for applications such as actuator controls, industrial automation, power management systems, and battery monitoring/testing.
It features a zero-drift architecture that provides very low offset voltage and minimal offset drift.
