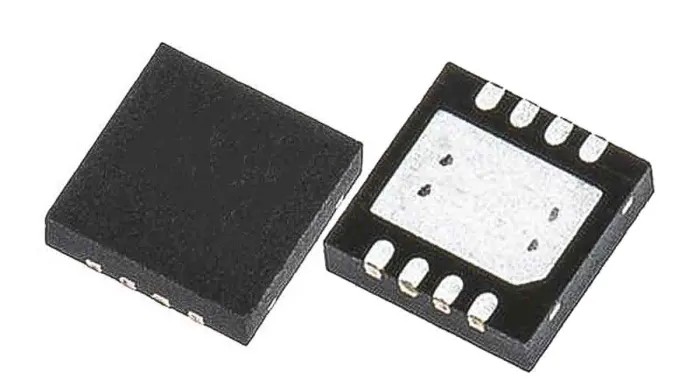

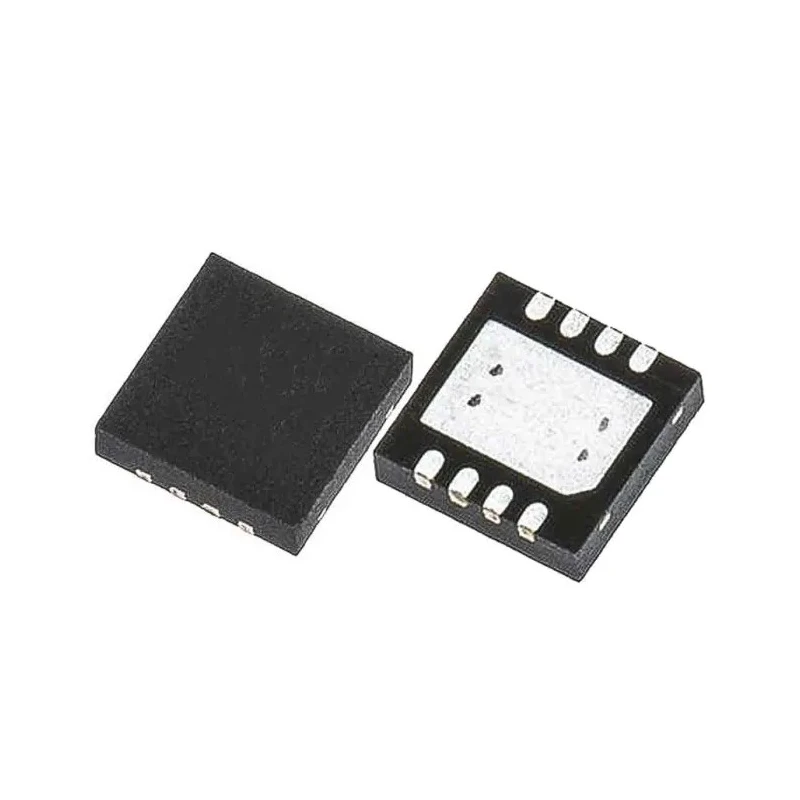

STMicroelectronics Operational Amplifier 880 kHz 8-Pin DFN 5.5V Surface Mount TSV632IQ2T
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 0.55mm |
| Length | 2.15mm |
| Model | TSV632IQ2T |
| Width | 2.15mm |
| Mount Type | Surface |
| Series | TSV632 |
| Output Current | 74mA |
| Maximum Operating Temperature | 125°C |
| Package Type | DFN |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.5V |
| GBP - Gain Bandwidth Product | 880kHz |
| Input Bias Current | 100 pA |
| Vos - Input Offset Voltage | 4.5 mV |
| Slew Rate | 0.34V/μs |
| Gain bandwidth product | 880 kHz typ |
| Low supply voltage | 1.5 V - 5.5 V |
| Low input bias current | 1 pA typ |
Key Features
- Dual-channel operational amplifier with rail-to-rail input and output.
- 880 kHz gain-bandwidth product for high speed and precision.
- Supports low supply voltage operation from 1.5 V to 5.5 V.
- Compact 8-pin DFN surface-mount package for high-density PCB layouts.
- Very low input bias current of 1 pA typ for sensitive signal processing.
- Maximum output current of 74 mA ensures stable operation.
- Wide operating temperature range from -40°C to 125°C.
- Automotive standard AEC-Q100 and RoHS compliant.
Product Description
STMicroelectronics TSV632IQ2T is a dual-channel operational amplifier designed for high precision and reliable performance in modern electronic applications. With a rail-to-rail input and output structure, this device delivers accurate analog signal amplification across its wide 880 kHz gain-bandwidth product, making it suitable for sensor interfaces, active filtering, and battery-supplied systems.
Operating efficiently with a low supply voltage from 1.5 V up to 5.5 V, the TSV632IQ2T excels in portable and battery-powered designs, where consumption is critical. Its typical supply current is only 60 μA at 5 V, optimizing power efficiency without compromising speed or stability. The operational amplifier remains unity gain stable even with capacitive loads, and incorporates features such as ultralow input bias current, optimized for amplifiers dealing with sensitive signals and high impedance sensors.
The compact 8-pin DFN package with dimensions of 2.15 mm by 2.15 mm and a height of 0.55 mm is ideal for dense surface-mount PCB designs. The device supports a maximum output current of 74 mA, ensuring robust signal drive capability for a range of analog input and output applications. TSV632IQ2T's offset voltage is limited to 4.5 mV, further guaranteeing accuracy in signal processing.
Certified to automotive standard AEC-Q100 and compliant with RoHS directives, this amplifier suits high-reliability environments such as automotive, industrial automation, and commercial electronics. A wide operational temperature range from -40°C to 125°C ensures consistent performance under varying environmental conditions. The EMI-hardened op amp architecture further contributes to noise immunity within critical circuits.
Applications include sensor interface circuits, portable medical and measurement instruments, active filtering, and automotive signal processing. Its surface mount package simplifies integration with automated manufacturing processes common in industrial and laboratory electronics.
Explore more STMicroelectronics Operational Amplifiers and advanced semiconductor devices in the EnvMart catalog for electronics design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TSV632IQ2T has a gain-bandwidth product of 880 kHz, which supports high-speed and precise analog signal amplification.
It operates efficiently with a supply voltage range from 1.5 V to 5.5 V, making it suitable for battery-powered applications.
This operational amplifier can provide a maximum output current of 74 mA, ensuring stable operation across various applications.
The DFN package of this model measures 2.15 mm in length and width, with a height of 0.55 mm, suitable for high-density PCB layouts.
The input offset voltage is limited to 4.5 mV, which helps guarantee accuracy in signal processing.
It features a very low typical input bias current of 1 pA, making it ideal for sensitive signal processing applications.
The operational amplifier has a wide operating temperature range from -40°C to 125°C, ensuring consistent performance in various environments.
Yes, it is certified to the automotive standard AEC-Q100 and is RoHS compliant, suitable for high-reliability environments.
This operational amplifier is a dual-channel device, allowing for multiple signal processing tasks simultaneously.
The slew rate of the TSV632IQ2T is 0.34 V/μs, which indicates how quickly the output can respond to changes in the input signal.
This model is suitable for applications such as sensor interface circuits, active filtering, and automotive signal processing.
It features a surface mount design, which simplifies integration into automated manufacturing processes common in electronics.
