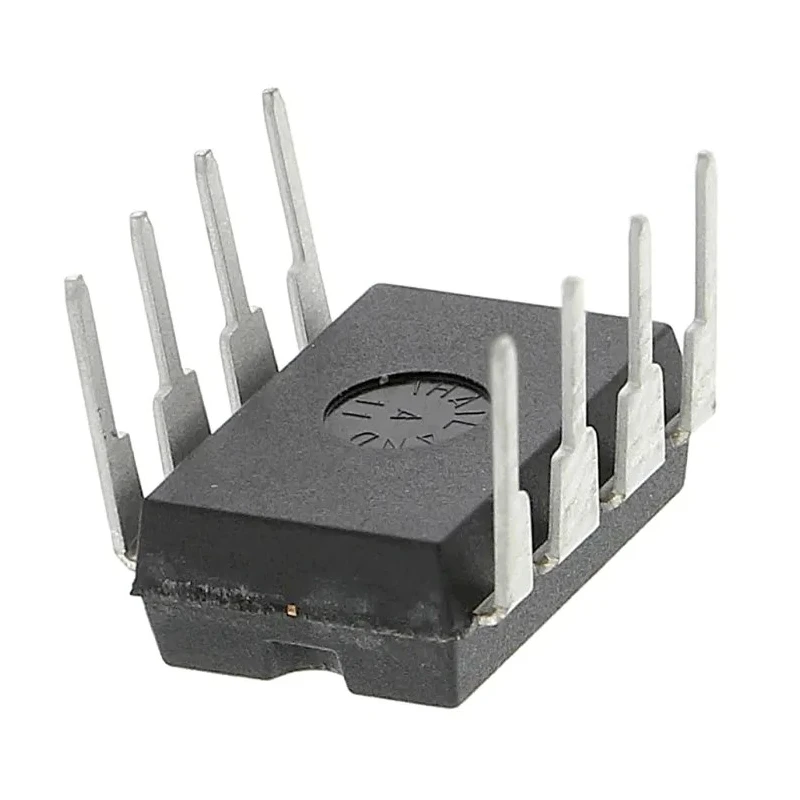

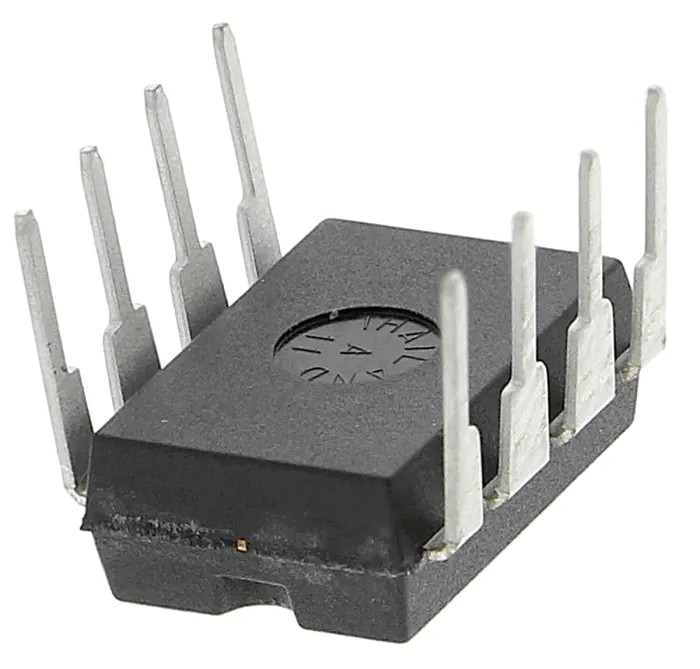

Microchip MCP6022-I/P Operational Amplifier, Dual Channel, 10 MHz, 8-Pin PDIP, 5.5V
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.3mm |
| Length | 9.27mm |
| Model | MCP6022-I/P |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | MCP6022 |
| Output Current | 30mA |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 10MHz |
| Input Bias Current | 1 pA |
| Slew Rate | 7V/μs |
| MCP6022-E/P Microchip, Operational Amplifier, 10 MHz, 8-Pin 5.5V PDIPBrand | Microchip |
Key Features
- Precision dual channel operational amplifier suitable for a variety of analog signal processing applications.
- Offers a high gain bandwidth product of 10 MHz, ensuring superior performance in fast signal amplification.
- Operates from a minimum supply voltage of 3V up to 5.5V, making it versatile for many designs.
- Features a low input bias current of 1 pA for sensitive applications.
- Provided in an 8-pin PDIP package for easy through-hole mounting.
- Includes a slew rate of 7 V/μs for swift response to input changes.
- Wide operating temperature range from -40°C to 85°C for reliability in demanding environments.
Product Description
The Microchip MCP6022-I/P is a high-performance dual channel operational amplifier designed for demanding analog signal processing tasks. It delivers a gain bandwidth product of 10 MHz, enabling fast and accurate amplification of signals with minimal distortion. Housed in an industry-standard 8-pin PDIP package, this device is suitable for through-hole assembly, making it ideal for prototyping, rapid development, and industrial applications.
Operating from a supply voltage range of 3V to 5.5V, the MCP6022-I/P provides flexibility across a variety of low-voltage and battery-powered systems. Its exceptionally low input bias current of 1 pA and input offset voltage of ±500 μV make it well-suited for precision measurements and sensor interfacing circuits.
Featuring a maximum output current of 30 mA and a fast slew rate of 7 V/μs, this operational amplifier ensures smooth output transitions and consistent performance, even in fast-changing signal environments. The device is RoHS compliant, emphasizing safety and environmental responsibility.
With a wide operating temperature range from -40°C to 85°C, it is reliable for industrial, laboratory, and commercial contexts. The MCP6022-I/P is commonly used in signal conditioning, active filtering, instrumentation, sensor interfaces, and other applications where robust analog amplification is required.
PDIP packaging dimensions include 9.27 mm length, 6.35 mm width, and 3.3 mm height, facilitating straightforward integration into standard PCB layouts. Precision dual channel op amp suitable for instrumentation and sensor interfaces.
Wide supply voltage range supports low-voltage applications and battery-operated systems. High-speed operation with 10 MHz gain bandwidth and 7 V/μs slew rate. RoHS compliant for environmentally safe use. Reliable operation across a wide temperature range for industrial, laboratory, and commercial use cases.
8-pin PDIP package simplifies prototyping and through-hole mounting. Browse more Operational Amplifiers and analog ICs in the Electronics & Electricals category or explore the Microchip brand for compatible solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP6022-I/P has a gain bandwidth product of 10 MHz, which enables fast and accurate amplification of signals.
This model operates from a minimum supply voltage of 3V up to a maximum of 5.5V, making it suitable for various low-voltage applications.
The maximum output current for this operational amplifier is 30 mA, allowing it to drive various loads effectively.
The MCP6022-I/P features a slew rate of 7 V/μs, which ensures swift response to input changes.
This model has a low input bias current of 1 pA, making it suitable for sensitive applications.
The PDIP package dimensions are 9.27 mm in length, 6.35 mm in width, and 3.3 mm in height.
This operational amplifier operates reliably within a temperature range from -40°C to 85°C.
Yes, the MCP6022-I/P is RoHS compliant, emphasizing its safety and environmental responsibility.
It is designed for through-hole mounting, making it easy to integrate into standard PCB layouts.
This operational amplifier is commonly used in signal conditioning, active filtering, instrumentation, and sensor interfaces.
The MCP6022-I/P is a dual channel operational amplifier, providing flexibility in various circuit designs.
The input offset voltage for the MCP6022-I/P is ±500 μV, which is crucial for precision measurements.
