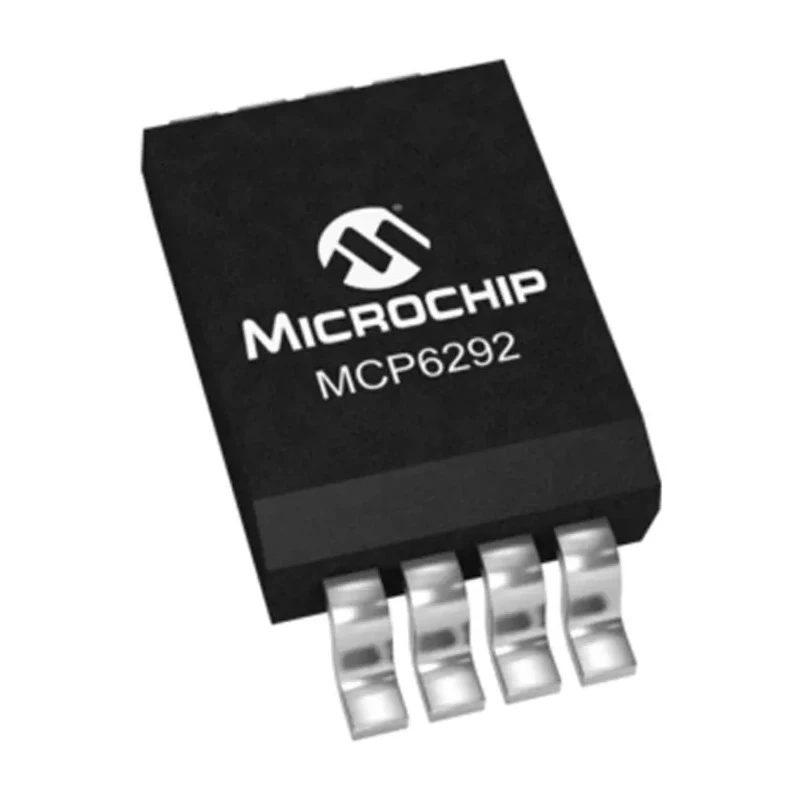

Microchip Dual Operational Amplifier SOIC, 10 MHz, 6V Max Supply, 8-Pin, AEC-Q100 MCP6292-E/SN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Length | 4.9mm |
| Model | MCP6292-E/SN |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | MCP6292 |
| Output Current | 25mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 6V |
| Minimum Supply Voltage | 2.4V |
| GBP - Gain Bandwidth Product | 10MHz |
| Input Bias Current | 1 pA |
| Vos - Input Offset Voltage | ±5 mV |
| Slew Rate | 7V/μs |
Key Features
- Operates with a gain bandwidth product of 10 MHz for fast signal response.
- Supports a wide supply voltage range from 2.4V to 6V for versatility.
- Low input bias and offset currents maximize precision in sensitive applications.
- Features two channels and eight pins for integration into multi-path analog circuits.
- Slew rate of 7 V/μs ensures rapid signal transition.
- Automotive Standard AEC-Q100 compliant for reliability in vehicle electronics.
- Surface mount SOIC design optimized for PCB layouts.
- Wide operating temperature range from -40°C to 125°C.
Product Description
Microchip MCP6292-E/SN is a dual-channel operational amplifier engineered for high-speed precision analog amplification. Designed as part of the MCP6292 series, this IC uses an 8-pin SOIC surface-mount package, making it ideal for compact circuit boards and assembly processes.
With a gain bandwidth product of 10 MHz, the MCP6292-E/SN supports fast and accurate analog signal amplification, suitable for applications including sensor interfacing, filter stages, signal conditioning, and precision monitoring systems. The amplifier operates reliably at supply voltages ranging from 2.4V to 6V, enabling compatibility with a wide range of power supplies and systems.
This operational amplifier features very low input bias current (1 pA) and input offset current (1 pA), allowing it to maintain high accuracy in sensitive circuits where signal fidelity is critical. The input offset voltage of ±5 mV supports low drift and stability under varying conditions. Output current capability is rated at 25 mA.
The slew rate of 7 V/μs ensures that the MCP6292-E/SN can handle rapid changes in input signals without distortion. The device is RoHS compliant and meets the Automotive Standard AEC-Q100, making it a robust choice for industrial, automotive, and commercial environments where quality and reliability are key.
Its compact dimensions (4.9 mm length, 3.9 mm width, 1.5 mm height) facilitate space-efficient PCB design and integration. The SOIC package type is widely adopted in modern electronics manufacturing due to its ease of assembly and secure fit.
Applications for the MCP6292-E/SN include industrial controls, automotive signal processing, instrumentation, data acquisition systems, and any scenario requiring dual op amp functionality and precision analog performance.
This Microchip operational amplifier is suitable for use in manufacturing, laboratory, automotive, and commercial electronics, where high-speed, low-noise dual op amp circuits are required. Explore more Operational Amplifiers and components in the EnvMart electronics category or browse Microchip solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP6292-E/SN has a gain bandwidth product of 10 MHz, enabling fast signal response for various applications.
The output current capability of this model is rated at 25 mA, suitable for driving various loads in analog circuits.
The input bias current is very low at 1 pA, which helps maintain high accuracy in sensitive applications.
The slew rate of this model is 7 V/μs, allowing it to handle rapid changes in input signals without distortion.
This operational amplifier has dimensions of 4.9 mm in length, 3.9 mm in width, and 1.5 mm in height.
It uses a surface mount SOIC package, which is optimized for PCB layouts and assembly processes.
The input offset voltage is ±5 mV, which supports low drift and stability under varying conditions.
It complies with the Automotive Standard AEC-Q100, ensuring reliability for use in vehicle electronics.
The operational amplifier operates over a temperature range of -40°C to 125°C, suitable for various environments.
This operational amplifier features two channels, allowing for integration into multi-path analog circuits.
Yes, the MCP6292-E/SN is RoHS compliant, indicating it meets environmental standards for hazardous substances.
