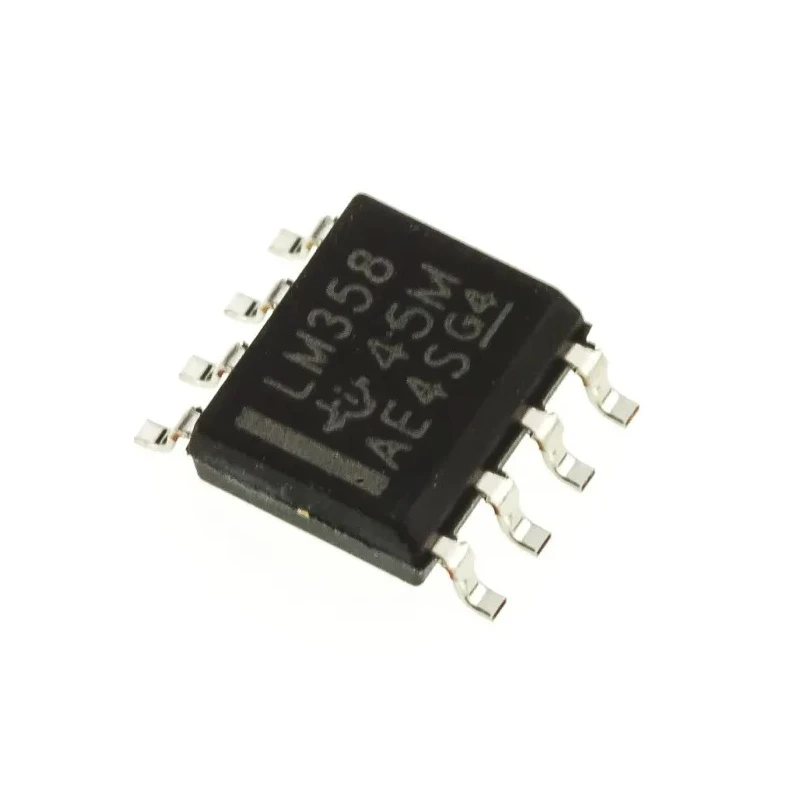

Texas Instruments LM358D Operational Amplifier 700kHz SOIC, 8-Pin, 30V Dual Channel
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 4.9mm |
| Model | LM358D |
| Width | 3.91mm |
| Mount Type | Surface |
| Series | LM358 |
| Output Current | -30mA |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Pin Count | 8 |
| Maximum Supply Voltage | 30V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 700kHz |
| Input Bias Current | -250 nA |
| Vos - Input Offset Voltage | 7 mV |
| Slew Rate | 0.3V/μs |
| Input Offset Current | 50 nA |
Key Features
- Dual-channel operational amplifier for versatile analog signal processing.
- Gain bandwidth product of 700kHz ensures reliable performance in a range of applications.
- Operates with supply voltages from 5V to 30V for flexible system integration.
- Compact 8-pin SOIC surface-mount package ideal for PCB designs.
- Wide temperature operating range from 0°C to 70°C for various environments.
- Low input offset voltage of 7mV and input bias current of -250nA for precision requirements.
- Slew rate of 0.3V/μs supporting accurate signal transitions.
- Suitable for amplifying signals in industrial, laboratory, and electronic equipment.
Product Description
The Texas Instruments LM358D is a dual-channel operational amplifier engineered for high-performance analog signal amplification in demanding industrial and laboratory applications. With its capability to deliver reliable gain bandwidth of 700kHz, this device offers precision operation for signal conditioning, filtering, and amplification tasks in modern electronic equipment.
This amplifier operates with supply voltages ranging from 5V up to 30V, allowing integration into multiple low- and high-voltage systems. Its surface-mount SOIC package with eight pins provides a compact footprint suitable for automated assembly processes and space-constrained PCB layouts. The LM358D is built to endure operational conditions with an extended temperature range of 0°C to 70°C, ensuring stable performance even in harsh environments.
Designed for accuracy, the device features an input offset voltage of 7mV and a low input bias current of -250nA, making it effective in applications requiring precise amplification and signal conditioning. Its slew rate of 0.3V/μs supports fast signal transitions, vital in dynamic analog processing and real-time systems. The dual amplifier channels on the chip enable simultaneous processing of separate signals or cascaded amplifier configurations.
With a pin count of eight, the LM358D provides convenient interfacing for circuit designers and can handle an output current of up to -30mA. It is compatible with standard industry requirements and does not claim any automotive-specific compliance, focusing on industrial and laboratory sectors.
Applications for this operational amplifier include instrumentation, sensor signal conditioning, active filters, analog computation, and voltage followers in laboratory instrumentation, industrial process controls, and commercial electronics.
As part of the LM358 series, this amplifier is known for its reliability, versatility, and ease of integration in analog circuits. For additional similar products or variant options, refer to the Operational Amplifier category on EnvMart or browse Texas Instruments' other semiconductor solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LM358D has a gain bandwidth product of 700kHz, ensuring reliable performance in various applications.
It operates with supply voltages ranging from 5V to 30V, allowing for flexible integration into different systems.
This model has a wide temperature operating range from 0°C to 70°C, suitable for various environments.
The LM358D features two channels, allowing for simultaneous processing of separate signals or cascaded configurations.
The input offset voltage for the LM358D is 7mV, which is important for precision applications.
This operational amplifier can handle an output current of up to -30mA.
The LM358D comes in a surface-mount SOIC package with eight pins, making it suitable for compact PCB designs.
The slew rate of this model is 0.3V/μs, which supports accurate signal transitions in dynamic applications.
The input bias current for the LM358D is -250nA, which is beneficial for applications requiring low power consumption.
The dimensions of the LM358D are 1.58mm in height, 4.9mm in length, and 3.91mm in width.
This operational amplifier is suitable for applications such as instrumentation, sensor signal conditioning, active filters, and analog computation.
The LM358D is manufactured in India, ensuring a specific origin for the product.
